4 Page 4 - 2 TANK SENTINEL ® INSTALLATION GUIDE
WARNING Do not install the console in a location where flammable vapors
may be present. An explosion could result causing serious injury, property loss,
or death.
CAUTION The maximum distance from the Tank Sentinel console to the
liquid level probe must not exceed 1500 feet (457.2 m) for model TSP-LL2
probes. In addition, the maximum distance from the Tank Sentinel
® console to
leak detection sensors must not exceed 1500 feet (457.2 m). Improper system
operation, system error alarms, and inaccurate data can result if level probe
cable lengths or leak detection sensor wiring exceed these limits. Reference
Sensor Installation manual(s) for TS-1001 consoles, Materials Required and
Level Probe Wiring in Chapter 1 & 7 of this manual.
Mounting the Console
Use the holes in the four right angle brackets to mount the Tank Sentinel ®
console enclosure. The location of the four holes is shown in Figures 4-2 & 4-3
Select fasteners that have sufficient load carrying capacity and which are
appropriate for the wall construction. Mount the Tank Sentinel
® console
vertically and level on an interior wall. Also, locate the console so the console
door can open fully (it is hinged on the left side).

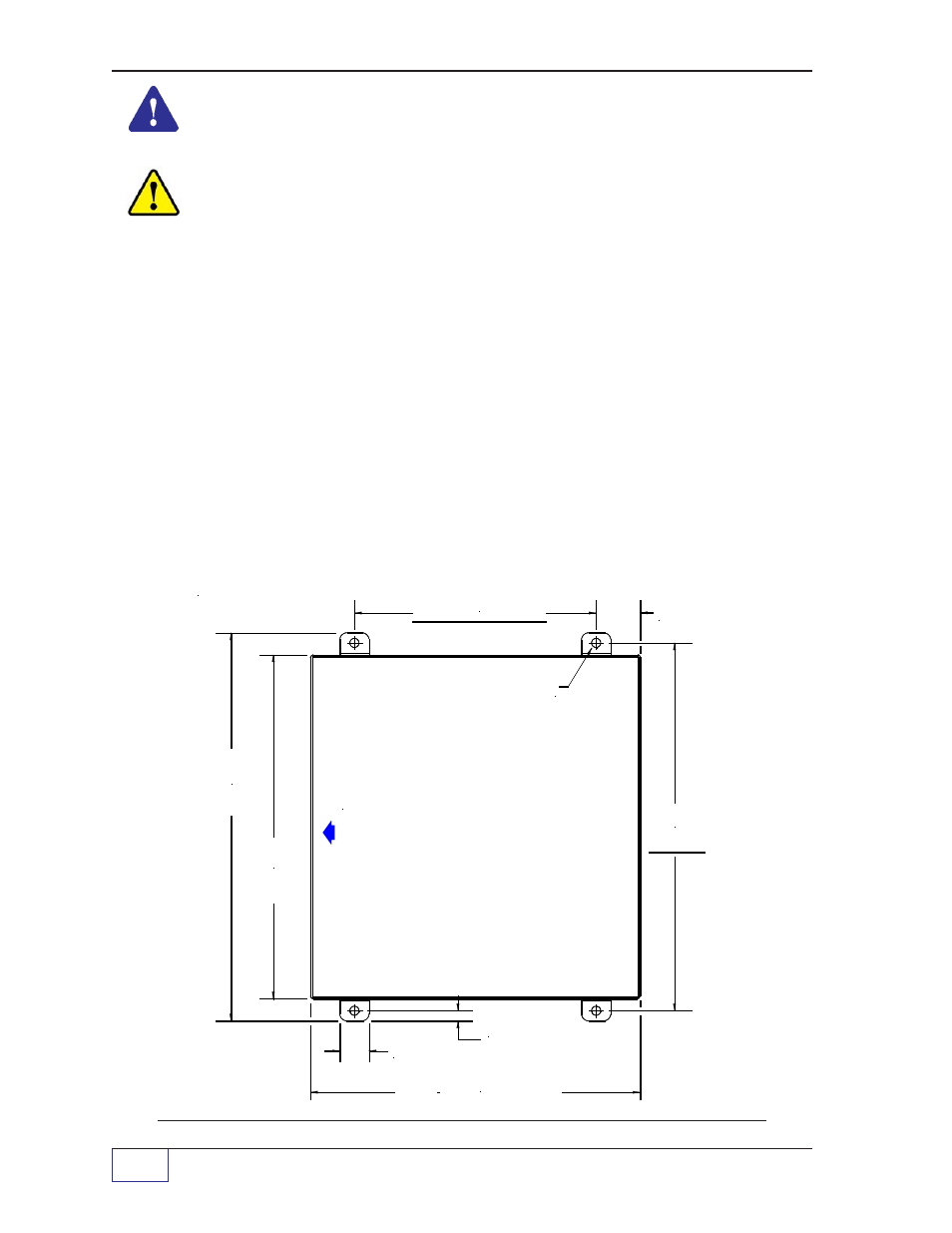

Figure 4-2 T1 / T8 / T4 / T7 Console Mounting Holes (door not dimensioned)
11.75
(298.5
mm)
REF
HINGE SIDE of
CONSOLE DOOR
11.00 x 12.00
(279.4 x 304.8 mm)
REF
10.75 (273.1 mm) REF
1.00
(25.4 mm)
TYP.
0.31
(7.9 mm)
TYP.
13.38
(339.9
mm)
REF
0.31 (7.9 mm)
THRU MOUNTING HOLES
TYP. FOUR PLACES
7.00 (177.8 mm)
12.75
(323.9
mm)
1.50
(38.1 mm)
TYP.
