LEVEL PROBE INSTALLATION Page 6 - 3 6
Recording Probe: Gradient, Model No., & Serial No.
For each tank, record the probe model number, serial number, and the probe
gradient value (propagation constant), in the spaces provided (also see TABLE
2.1). This information is located on the label at the probe head, or on its shipping
tube. This information will be required to program the system.
PROBE — INSTALLED IN:
Model No. Serial No. Gradient
TANK 1
TANK 2
TANK 3
TANK 4
TANK 5
TANK 6
TANK 7
TANK 8
The write-in fields for Tanks 5 though 8 are for the TS-2001 and TS-508 Tank
Sentinel
® consoles only (this is true throughout this manual).
The TSP-LL2 probe has two labels. The "shipping-tube" label contains the same
information that is on the probe head label ...Model #, Serial #, Gradient, Probe
Length, Max. Tank Size, and Temperature Sensor Locations. For every installed
probe, use an indelible ink pen and mark the Tank Number where it was
installed – on each label. This information is used to program / setup the Tank
Sentinel console. Copy / save these labels and make sure they are given to
the programmer.
(
T2 T8
)
22222

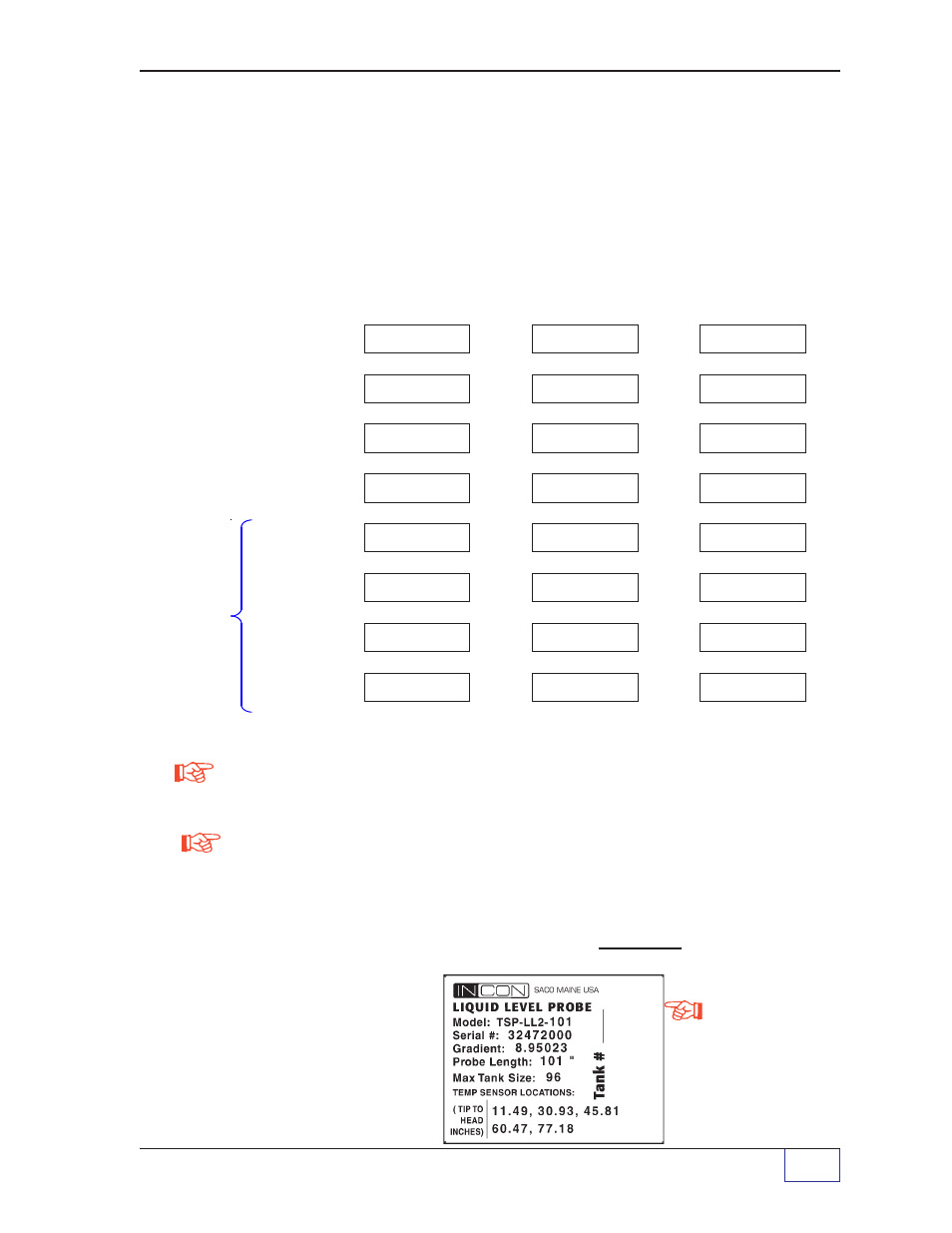

Typical Label
on Probe
Shipping
Tube This is an
example label
DO NOT copy or
use any value
shown here.
