SYSTEM WIRING Page 7 - 11 7
the Tank Sentinel System ONLY circuit breaker, and label these circuit breakers
as TS-Remote Equipment Power.
After Probes are Wired
1) Reinstall the I.S. Probe and Sensor cover
2) Test each probe for proper operation (reference the User’s Guide)
3) In high water level applications, or in direct cable burial applications:
waterproof the cable and splice connectors of all tested probes with
TSP-DB1 Direct Burial Splice (sealing) Kit. Epoxy is provided along with
the sealing kit. You may order additional TSP-DB1 sealing kits from the
factory. DO NOT seal connectors with silicone rubber because it contains
acetic acid, which is corrosive and will cause future equipment failures.
4) Install the weatherproof junction box gasket and cover
5) Seal the EYS conduit fittings of all tested probes with epoxy, and install the
manhole cover
WARNING The probe and sensor I.S. cover (and all safety shields) must be
in place when the console is powered up. Failure to replace this cover can
result in a dangerous situation — an explosion hazard will be created.
CAUTION Make sure that you have installed the manhole junction box
gaskets and covers after the wiring is completed, and after the probes are
tested. Wet wiring will result in faulty operation.
Alarm Wiring
The Tank Sentinel console includes two SPDT form C alarm-relays that may be
used to control external devices in response to alarms. One external alarm-relay
is typically programmed and used to turn on an INCON TS-RA1/RA2 in response
to a Tank Overfill Alarm condition. The other alarm-relay can be used as needed.
120 VAC Power Source(s)
When wiring to a TS-RK Remote Alarm Acknowledge Unit, and a TS-RA1/
TS-RA2 Remote Tank Overfill Alarm annunciators, wire either to the Tank
Sentinel System ONLY 120 VAC circuit breaker at the electrical power panel, or
wire directly to the Tank Sentinel console power terminals. Use no other power
source for these devices. Reference the TS-RA1 / TS-RA2 / TS-RK Tank
Overfill Alarm and Acknowledge units: Installation Manual for installation details.
If external devices other than Tank Sentinel system components are to be wired
to the Alarm-Relay terminals, then select circuit breaker(s) that are adjacent to

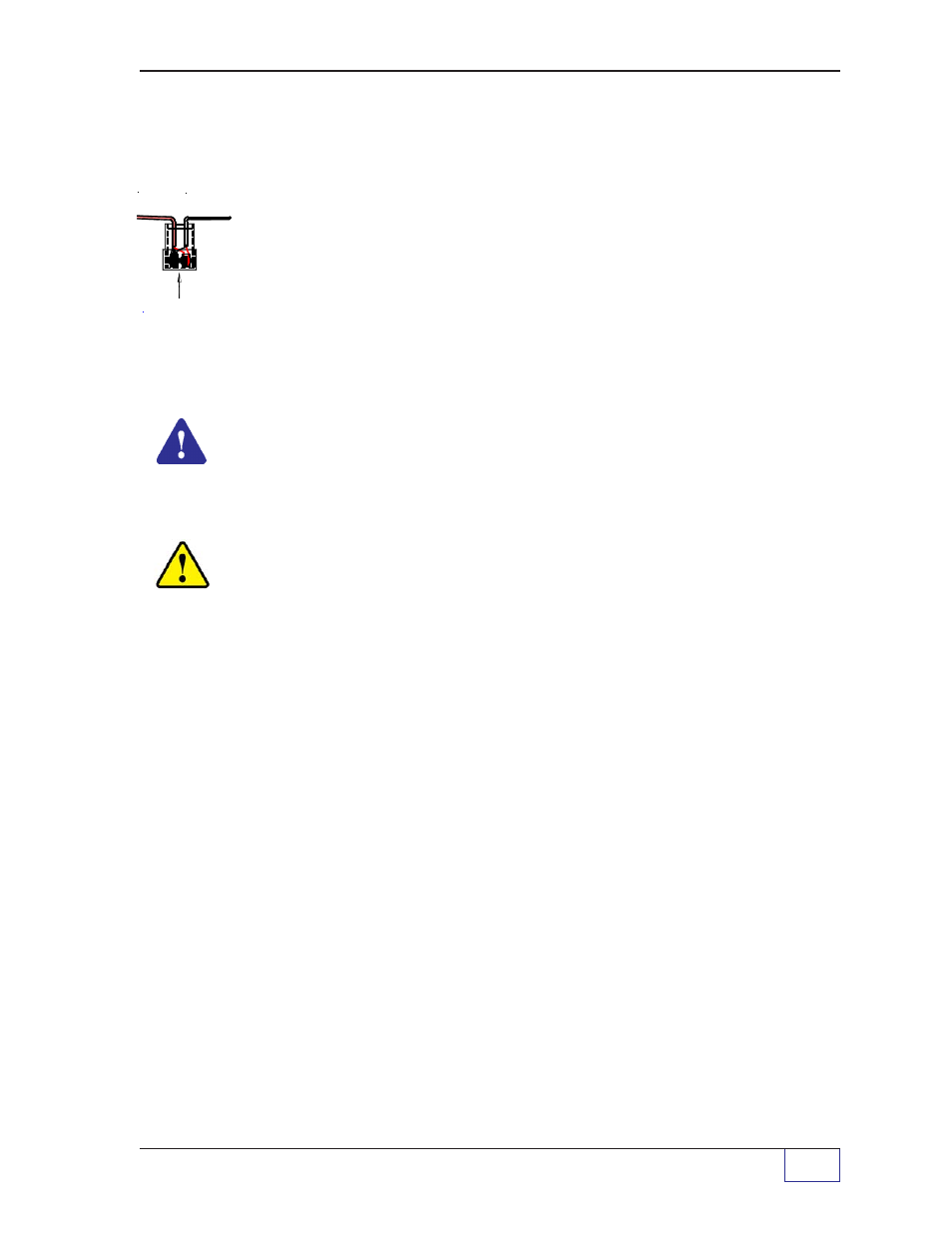

CABLE FROM
PROBE
(OR SENSOR) CABLE
FROM
CONSOLE
TS-DB1 SPLICE KIT
(EPOXY FILLED)
