Pin Code Protected Printer
269

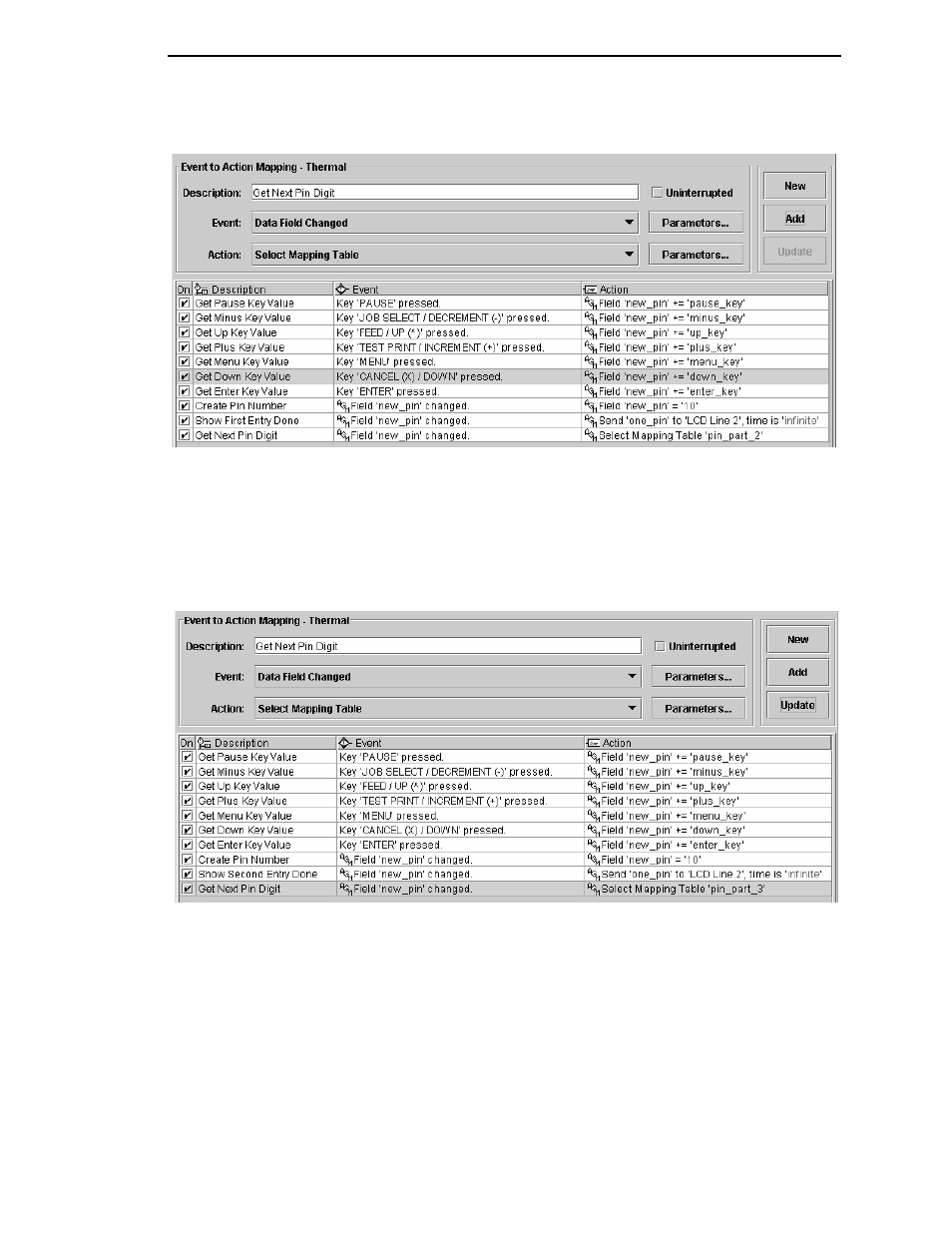

Figure 237. Pin_Part_1 Mapping Table
If a key is pressed for the first 7 entries, the value of the related data field is
added to the new_pin data field, which is multiplied by 10 to shift the content
one decimal place over. Since we now have the first part of the PIN number in
a data field, we’ll display the one_pin message on the LCD and switch to the
Pin_Part_2 table.
Figure 238. Pin_Part_2 Mapping Table
The Pin_Part_2 mapping table is similar to the Pin_Part_1 mapping table. If a
key is pressed for the first 7 entries, the value of the related data field is added
to the new_pin data field, which is multiplied by 10. The message two_pin will
display to indicate that two numbers of the PIN code have been entered and
to select the Pin_Part_3 table.
