Chapter 8 Performance

NetAtlas Workgroup User’s Guide

93

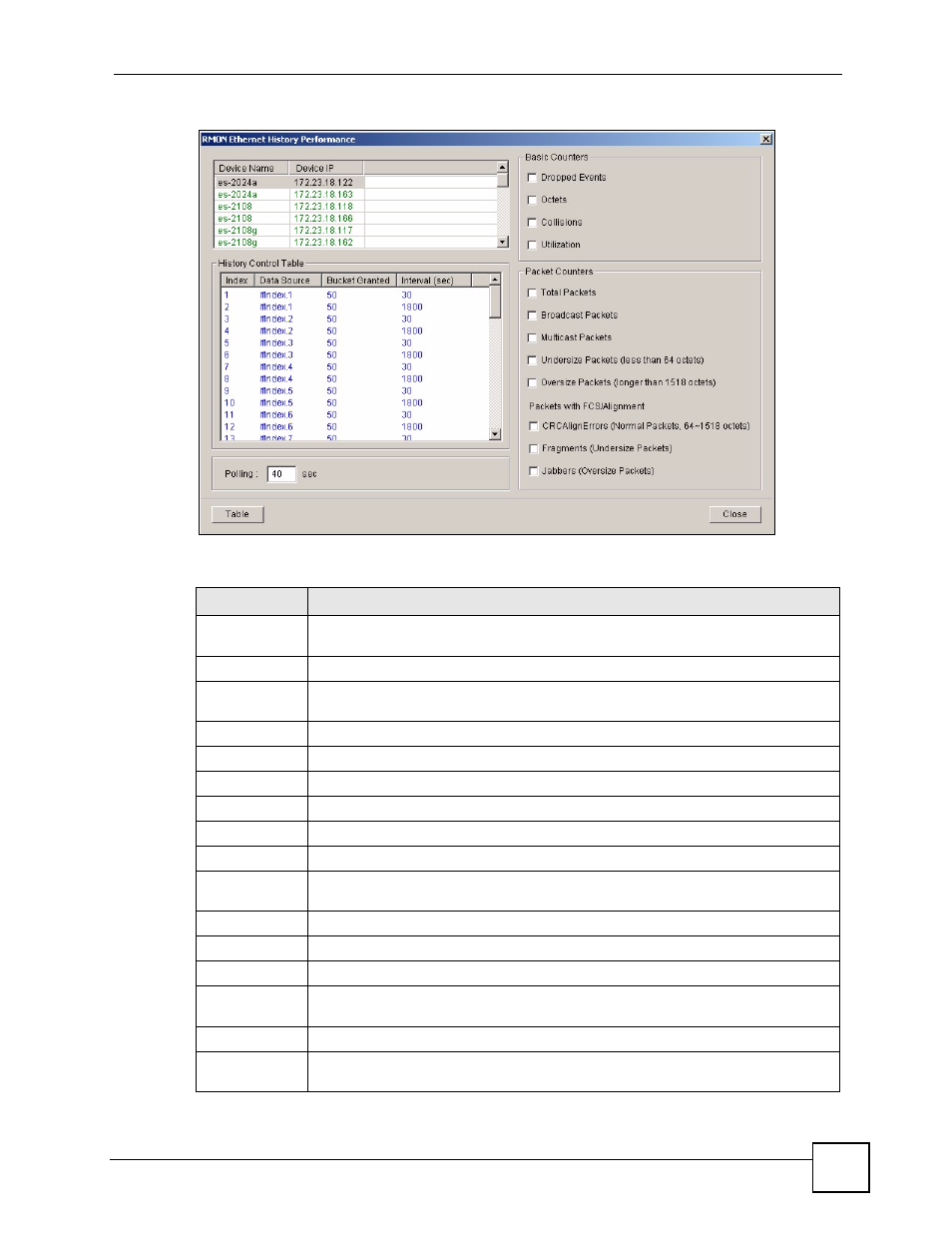

Figure 53 Performance: RMON: History Data

The following table describes the labels in this screen.

Table 38 Performance: RMON: History Data

LABEL

DESCRIPTION

Device Name

This field displays the name of each IP DSLAM. Select an IP DSLAM to look at

statistics for one of its ports.

Device IP

This field displays the corresponding IP address of the IP DSLAM.

History Control

Table

Index

This field displays the configuration index number.

Data Source

This field displays the port of the IP DSLAM that the EMS will poll for data.

Bucket Granted This field displays the number of data samplings the probe allows to stores.

Interval (sec)

This field displays the time between data samplings.

Polling

Select how often you want the EMS to update the statistics it displays.

Basic Counters

Dropped

Events

Select this to display the total number of packets that were dropped.

Octets

Select this to display the total number of octets received.

Collisions

Select this to display the total number of collisions occurred.

Utilization

Select this to display the utilization of the LAN ports.

Packet

Counters

Total Packets

Select this to display the total number of all good packets received.

Broadcast

Packets

Select this to display the total number of good broadcast packets received.
