Chapter 9 Fault
NetAtlas Workgroup User’s Guide
103
2 Choose a switch from the list located on the left-hand side of the screen.
3 Choose a port from the list located on the right-hand side of the screen.
4 In the Timeout field, accept the default or specify a connection timeout period (in
seconds).
5 Click Apply to start the loopback test.

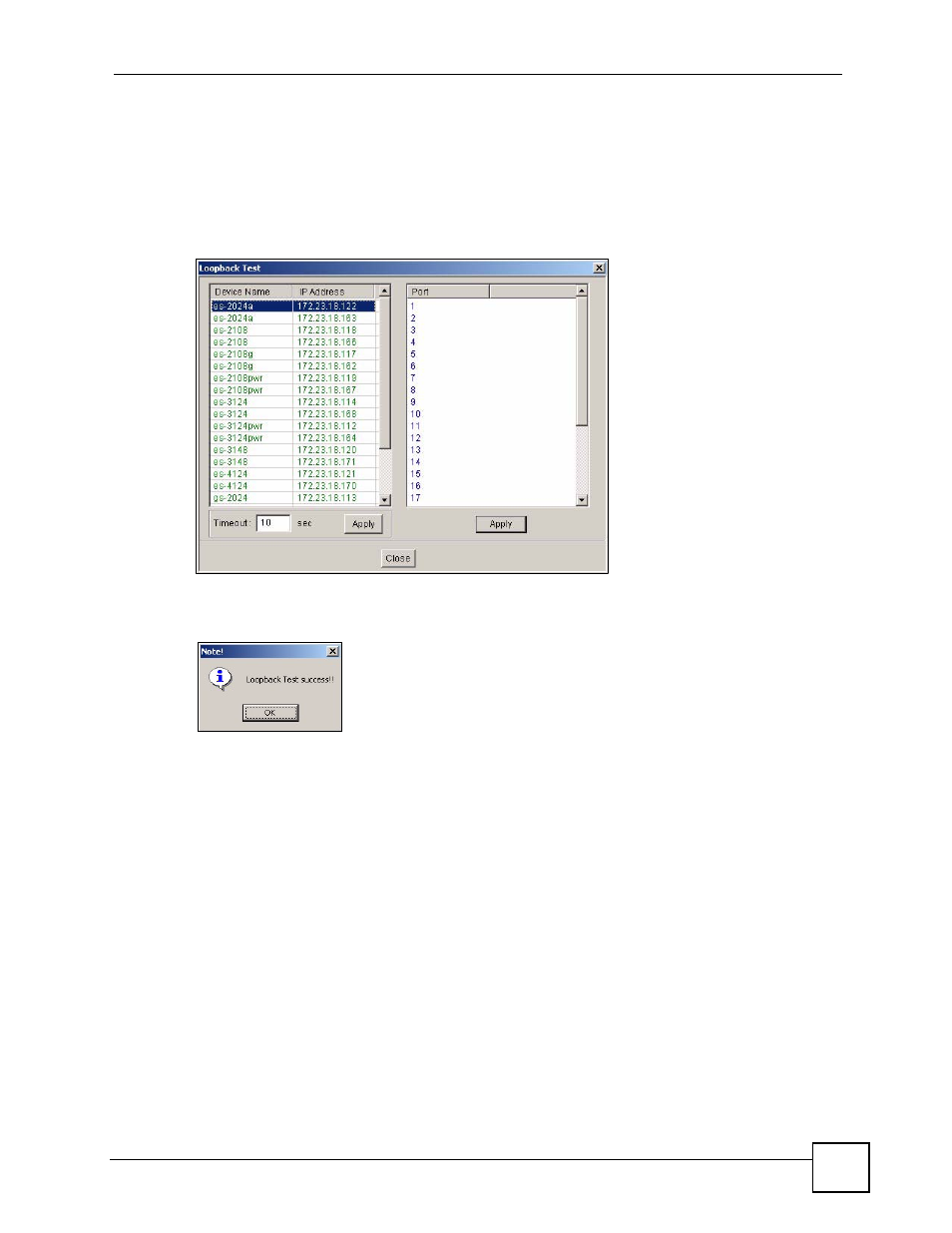

Figure 62 Fault: Loopback Test
6 A screen displays showing the test result. Click OK to close the screen.
Figure 63 fault: Loopback: Result
9.3 Ping Test
You can use the Ping screen to test connection from the selected switch to a specified IP
address.
Click Fault > Ping and TraceRoute Test and click the Ping tab to display the screen.
