Chapter 8 Performance

NetAtlas Workgroup User’s Guide

91

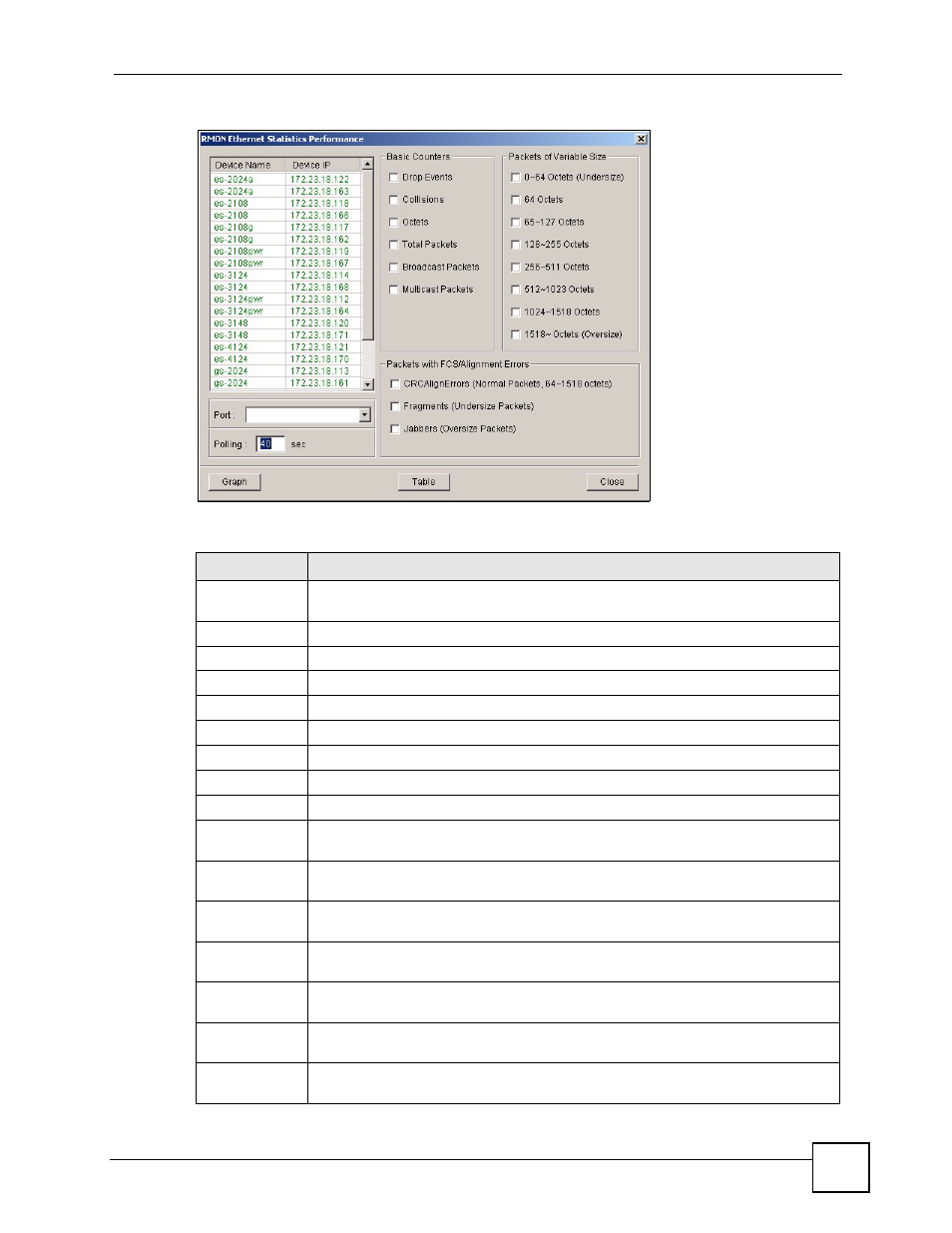

Figure 52 Performance: RMON: Ethernet Statistics

The following table describes the labels in this screen.
Table 37 Performance: RMON: Ethernet Statistics

LABEL

DESCRIPTION

Device Name

This field displays the name of each switch. Select a switch to look at statistics for

one of its ports.

Device IP

This field displays the corresponding IP address of the switch.

Port

Select the port at whose statistics you want to look.

Polling

Select how often you want the EMS to update the statistics it displays.

Basic Counters

Drop Events

Select this to display the total number of packets that were dropped.

Octets

Select this to display the total number of octets received.

Collisions

Select this to display the total number of collisions occurred.

Total Packets

Select this to display the total number of all good packets received.

Broadcast

Packets

Select this to display the total number of good broadcast packets received.

Multicast

Packets

Select this to display the total number of good multicast packets received.

Packets of

Variable Size

0 ~ 64 Octets

(Undersize)

Select this to display the number of packets (including bad packets) received that

were between 0 and 64 octets in length.

64 Octets

Select this to display the number of packets (including bad packets) received that

were 64 octets in length.

65 ~ 127 Octets Select this to display the number of packets (including bad packets) received that

were between 65 and 127 octets in length.

128 ~ 255

Octets

Select this to display the number of packets (including bad packets) received that

were between 128 and 255 octets in length.
