Chapter 15 VLAN
NetAtlas Workgroup User’s Guide
161
Port-based VLANs are specific only to the switch on which they were created.
The port-based VLAN setup screen is shown next. The CPU management port forms a VLAN
with all Ethernet ports.
15.3.1 Configuring Port Based VLAN
Follow the steps below to set the Port Based VLAN Type on the switch.
1 In the Device Panel list, select a device and then right-click.
2 Click Configuration > Switch Configuration > Switch Setup.
3 Select Port Based as the VLAN Type and then click Apply.
4 Select a device, right-click and click Configuration > VLAN Configuration to display
the screen as shown next.

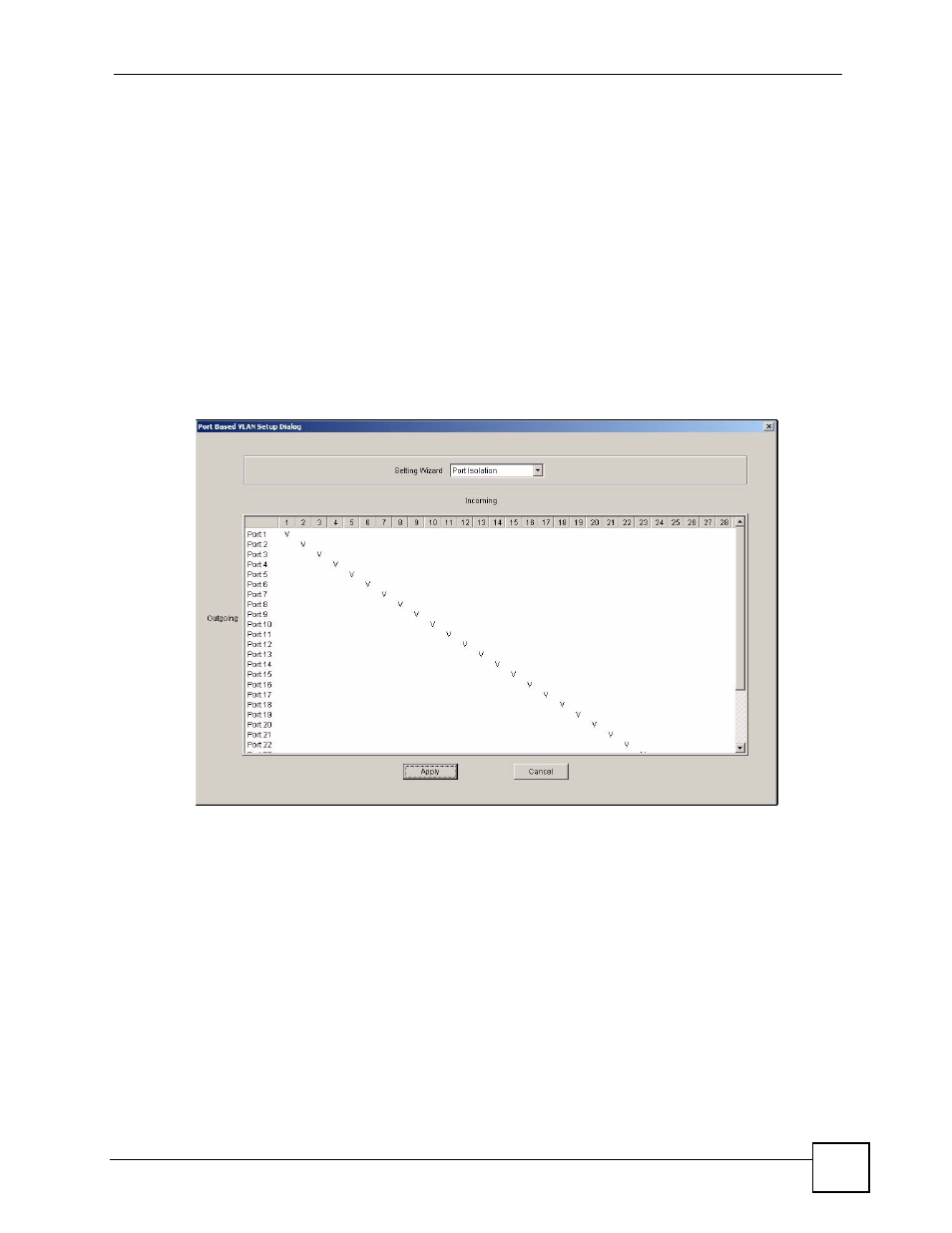

Figure 113 VLAN Configuration: Port Based
