Chapter 5 View

NetAtlas Workgroup User’s Guide

72

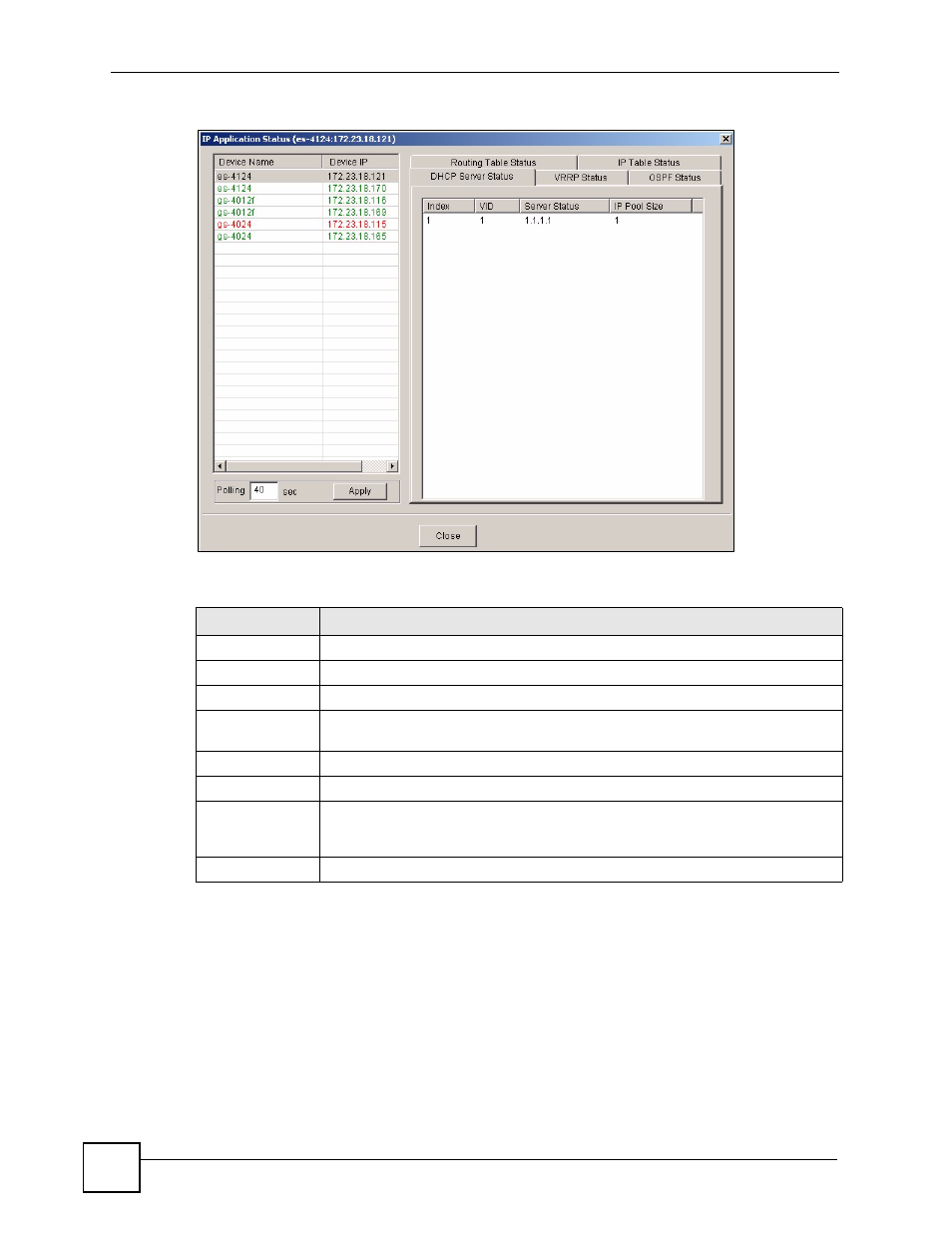

Figure 35 View: IP Application Status: DHCP Server Status

The following table describes the labels in this screen.

5.8.4 VRRP Status

Follow the steps below to view the VRRP status of a selected device.

1 Click View > IP Application Status.
2 Select a switch from the list located on the left-hand side of the screen.
3 Click the VRRP Status tab.

Table 26 View: IP Application Status: DHCP Server Status

LABEL

DESCRIPTION

Device Name

This field displays the descriptive name of a device.

Device IP

This field displays the IP address of a device

Index

This is the index number.

VID

This field displays the ID number of the VLAN group to which this DHCP settings

apply.

Server Status

This field displays the starting DHCP client IP address.

IP Pool Size

This field displays the size of the DHCP client IP address pool.

Polling

The text box displays how often (in seconds) this screen refreshes. You may

change the refresh interval by typing a new number in the text box and then

clicking Apply.

Close

Click Close to close this screen.
