Chapter 9 Fault

NetAtlas Workgroup User’s Guide

104

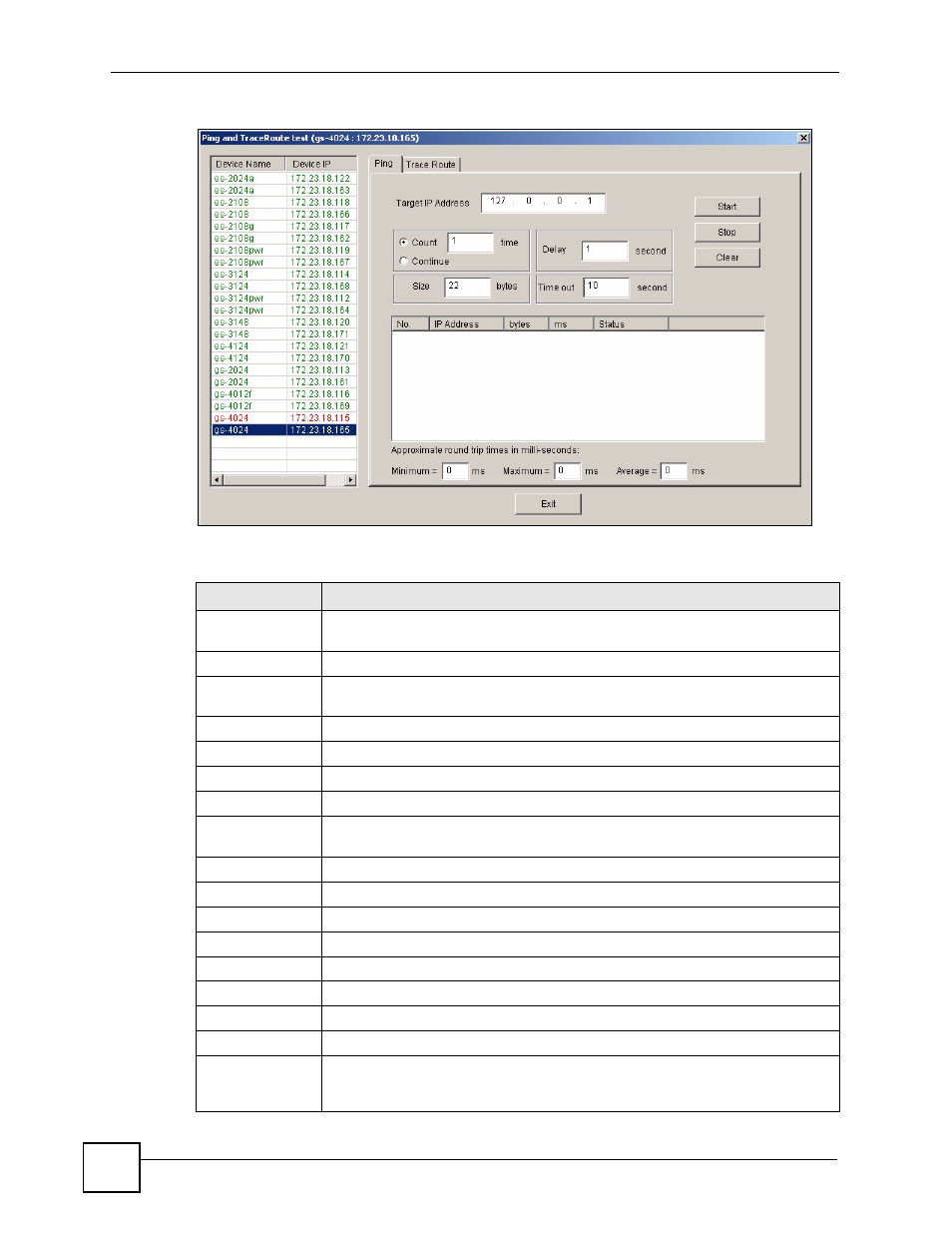

Figure 64 Fault: Ping and TraceRoute Test: Ping

The following table describes the labels in this screen.

Table 45 Fault: Ping and TraceRoute Test: Ping

LABEL

DESCRIPTION

Device Name

This field displays the name of each switch. Select a switch to look at statistics for

one of its ports.

Device IP

This field displays the corresponding IP address of the switch.

Target IP Address Enter the IP address of the device to which you want to test the connection from

the selected switch.

Count

Select this option and enter the number of ping test (1-15) to perform.

Delay

Enter the number of seconds (1-30) the switch is to wait between ping tests.

Continue

Select this option to perform ping tests continuously until you click Stop.

Size

Specify the size of the ping packet (0-1472 bytes) to send.

Timeout

Specify the time (1-30 seconds) the switch is to wait for a reply from the remote

device before declaring this a failed ping test.

Start

Click Start to begin the ping connection test.

Stop

Click Stop to end the ping connection test if you select the Continue option.

Clear

Click Clear to reset the fields in this part of the screen.

No.

This field displays the index number.

IP Address

This field displays the destination IP address for this ping test.

bytes

This field displays the number of bytes sent for this ping test.

ms

This field displays the round trip time in mili-seconds (ms).

Status

This field indicates whether this ping test is successful or not.

Approximate

round trip times in

mili-seconds:
