Chapter 16 Ethernet Port Configuration
NetAtlas Workgroup User’s Guide
173

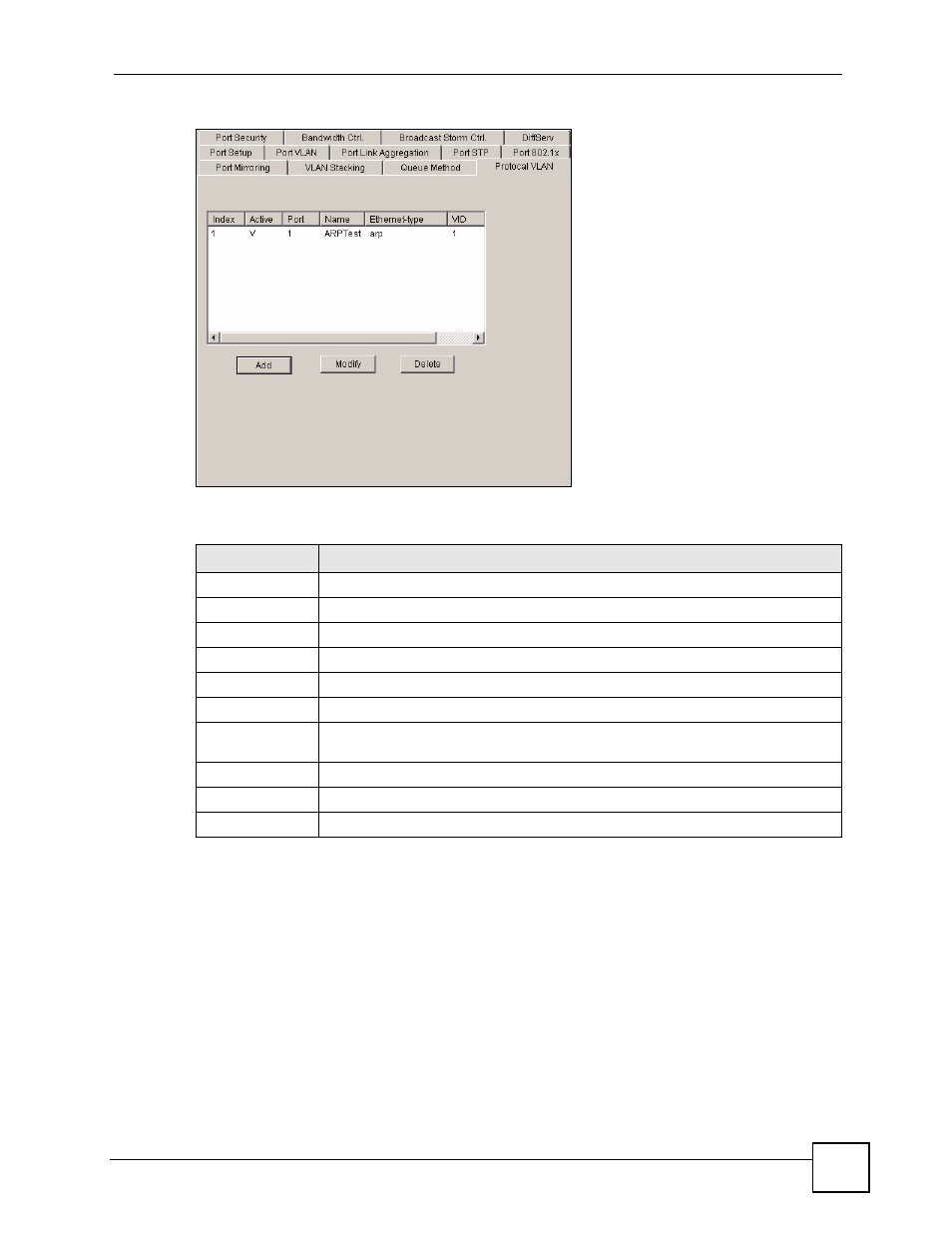

Figure 122 Ethernet Port Configuration: Protocol VLAN
The following table describes the fields in this screen.
16.10.1 Configuring a Protocol VLAN
To create a new protocol VLAN, click Add in the Protocol VLAN screen. Click Modify to
change the settings of the selected entry. The Protocol VLAN Add or Protocol VLAN
Modify screen displays.
Table 88 Ethernet Port Configuration: Protocol VLAN
TABLE DESCRIPTION
Index This is the index number identifying this protocol based VLAN.
Active This field shows whether the protocol based VLAN is active or not.
Port This field shows which port belongs to this protocol based VLAN.
Name This field shows the name the protocol based VLAN.
Ethernet Type This field shows which Ethernet protocol is part of this protocol based VLAN.
VID This field shows the VLAN ID of the port.
Priority This field shows the priority which is assigned to frames belonging to this protocol
based VLAN.
Add Click Add to create a new protocol VLAN entry.
Modify Click Modify to change the settings of a selected protocol VLAN.
Delete Click Delete to remove the selected protocol based VLANs.
