18.4.2 RMON Alarm Event Log
Use this screen to display alarm logs. To open this screen, click Configuration, RMON
Configuration, Alarm Config, Show Log.

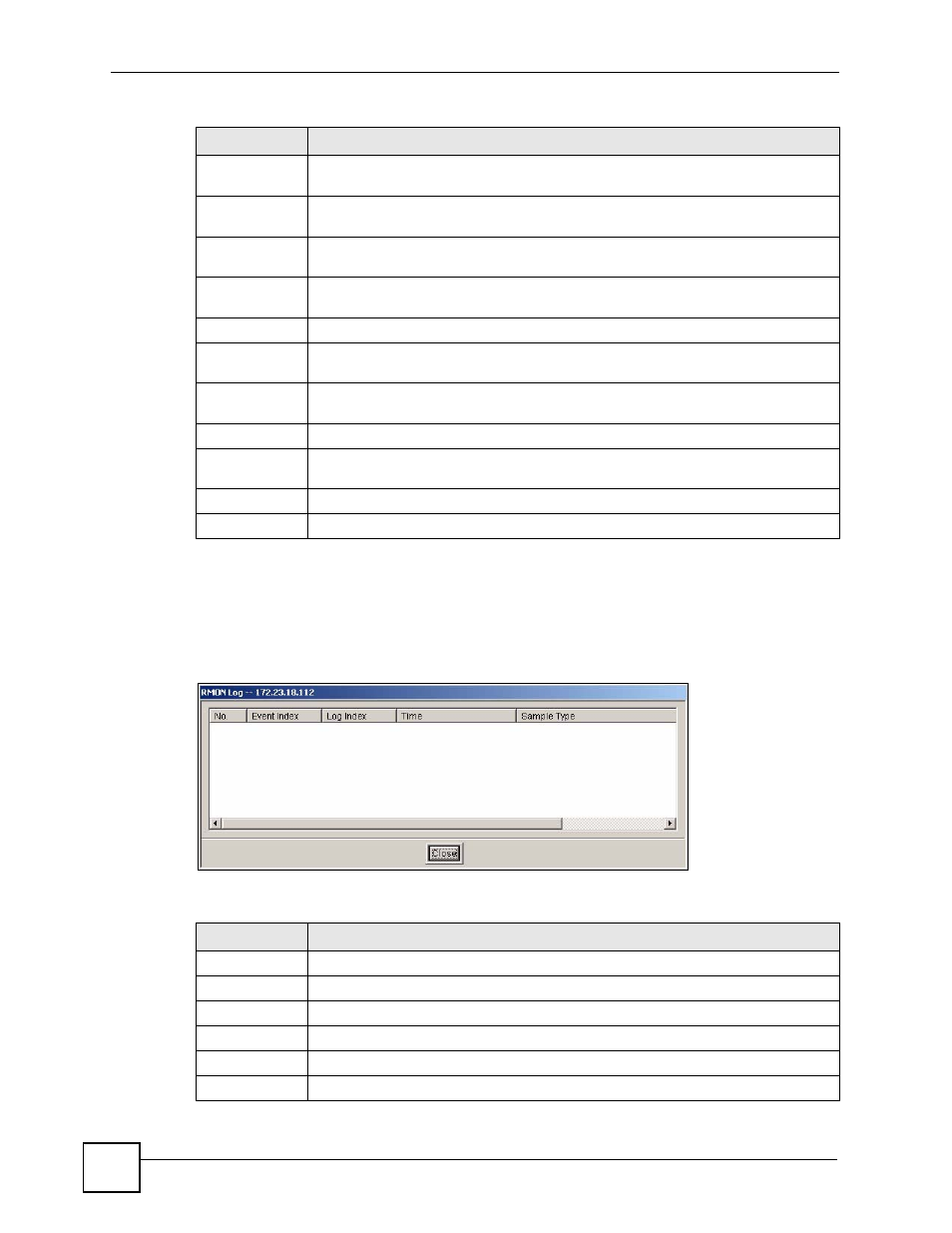

Figure 145 RMON Configuration: Alarm Config.: Show Log
The following table describes the labels in this screen.
Sample Type Select the method of obtaining the sample value. Choices are Absolute Value and
Delta Value.
Startup Alarm Select the startup alarm type (Rising Alarm, Falling Alarm, Rising Or Falling
Alarm).
Rising
Condition
Rising
Threshold
Specify a rising threshold (between 0 and 2147483647). When a value that is
greater or equal to this threshold, the probe triggers an alarm.
Rising Event Click Browse to select an index number of a rising event.
Falling
Condition
Falling
Threshold
Specify the falling threshold (between 0 and 2147483647). When a value that is
smaller or equal to this threshold, the probe triggers an alarm.
Falling Event Click Browse to select an index number of a falling event.
Owner Enter a descriptive name of the application that creates this entry. You can use 1-31
printable ASCII characters. Spaces are allowed.
OK Click this to save the settings and close this screen.
Cancel Click this to discard all changes and close the screen.
Table 104 RMON Configuration, Alarm Config., New (continued)
LABEL DESCRIPTION
Table 105 RMON Configuration: Alarm Config.: Show Log
LABEL DESCRIPTION
No. This field displays an index number.
Event Index This field displays an event index number.
Log Index This field displays a log index number.
Time This field displays the time a log was generated.
Sample Type This field displays the method of obtaining the sample value.
Close Click this to close this screen.
