Chapter 14 Switch Configuration

NetAtlas Workgroup User’s Guide

153

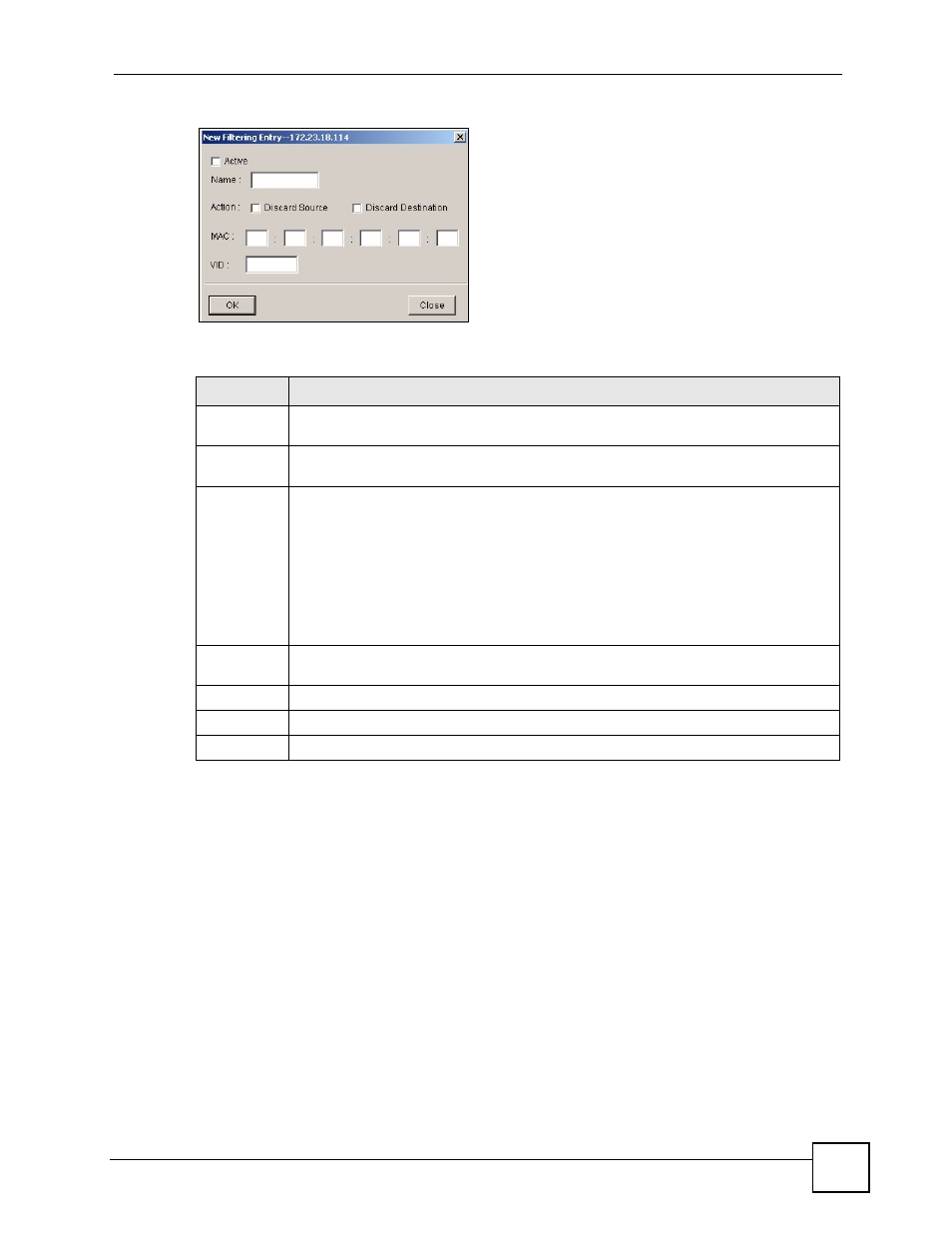

Figure 106 Switch Configuration: Filtering: Add

The following table describes the related labels in this screen.

14.7 MAC Forwarding

A static MAC address entry is an address that has been manually entered in the MAC address
learning table. Static MAC addresses do not age out. When you set up static MAC address
rules, you are setting static MAC addresses for a port. Devices that match static MAC address
rules on a port can only receive traffic on that port and cannot receive traffic on other ports.
This may reduce unicast flooding.
To open the configuration screen, right-click on the switch in the Device List Panel, and click
Configuration > Switch Configuration > MAC Forwarding.

Table 72 Switch Configuration: Filtering: Add

LABEL

DESCRIPTION

Active

Make sure to select this check box to activate your rule. You may temporarily deactivate

a rule without deleting it by deselecting this check box.

Name

Type a descriptive name (up to 32 printable ASCII characters) for this rule. This is for

identification purpose only.

Action

If the options are not applicable, packets that match the MAC address and VLAN ID

specified will be discarded.
Select Discard source to drop frame from the source MAC address (specified in the

MAC field). The switch can still send frames to the MAC address.
Select Discard destination to drop frames intended for the destination MAC address

(specified in the MAC field). The switch can still receive frames originating from the

MAC address.
Select Discard source and Discard destination to block traffic to/from the MAC

address specified in the MAC field.

MAC

Type a MAC address in valid MAC address format, that is, six hexadecimal character

pairs.

VID

Type the VLAN group identification number.

OK

Click OK to save the changes and close this screen.

Close

Click Close to close this screen. All unsaved settings will be lost.
