Chapter 5 View

NetAtlas Workgroup User’s Guide

66

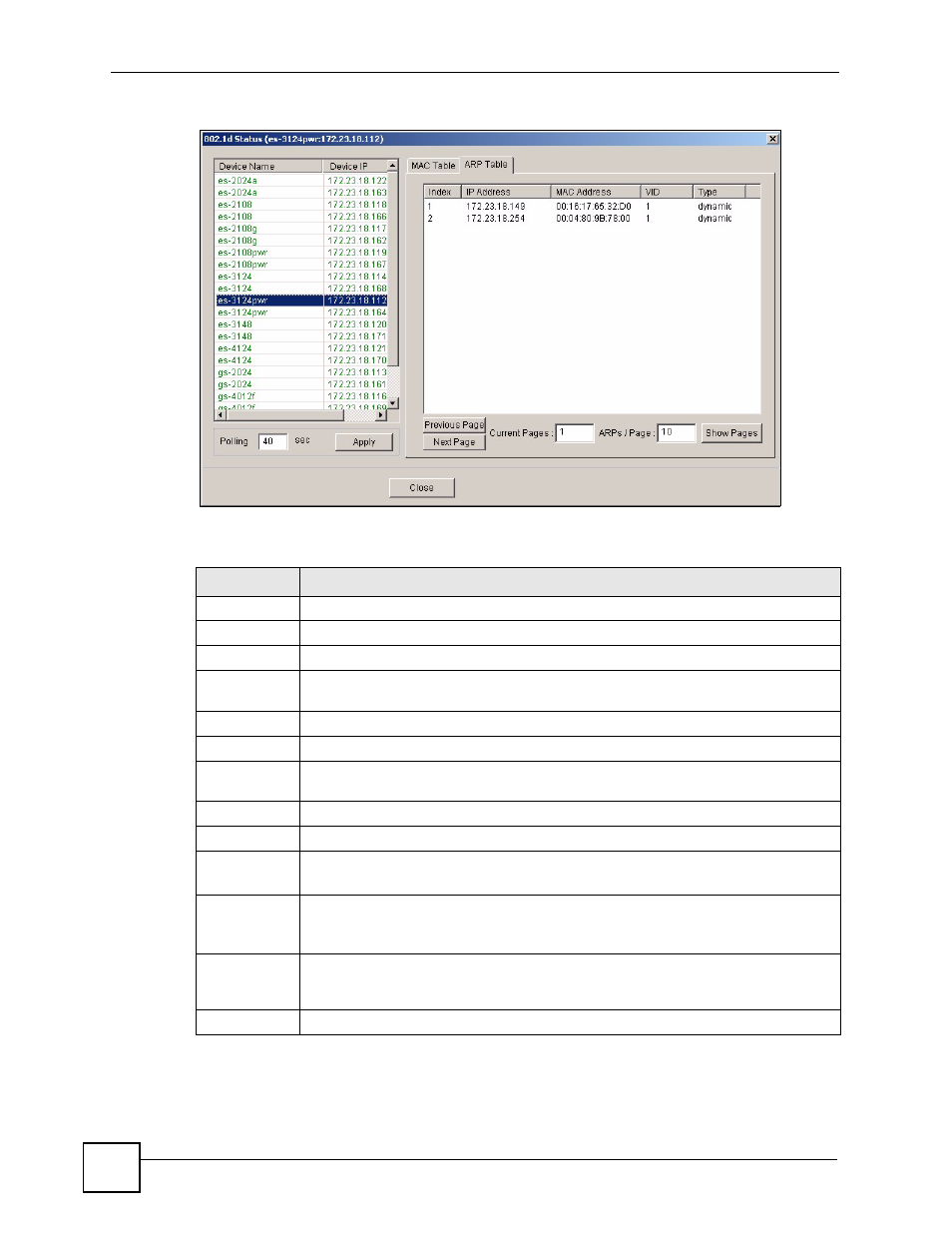

Figure 30 View: 802.1d: ARP Table

The following table describes the labels in this screen.

Table 21 View: 802.1d: ARP Table

LABEL

DESCRIPTION

Device Name

This field displays the descriptive name of a device.

Device IP

This field displays the IP address of a device

Index

This is the ARP table entry number.

IP Address

This is the learned IP address of a device connected to a switch port with

corresponding MAC address below.

MAC Address

This is the MAC address of the device with corresponding IP address above.

VID

This is the VLAN group to which this ARP entry belongs.

Type

This shows whether the MAC address is dynamic (learned by the switch) or static

(manually entered in the Static MAC Forwarding screen).

Previous Page Click Previous Page to display the previous screen.

Next Page

Click Next Page to display the next screen.

Current Page

This field displays the current page number.
Enter a number and click Show Page to display that page.

ARPs/Page

This field displays the number of ARP entries to display in one page.
Enter a number (1-99) and click Show Page to display that number of ARP entries in

a page.

Polling

The text box displays how often (in seconds) this screen refreshes. You may change

the refresh interval by typing a new number in the text box and then clicking the Apply

button.

Close

Click Close to close the screen.
