13.8.1 Configuring an IP Interface
To create a new IP interface, click Add in the IP Setup screen.

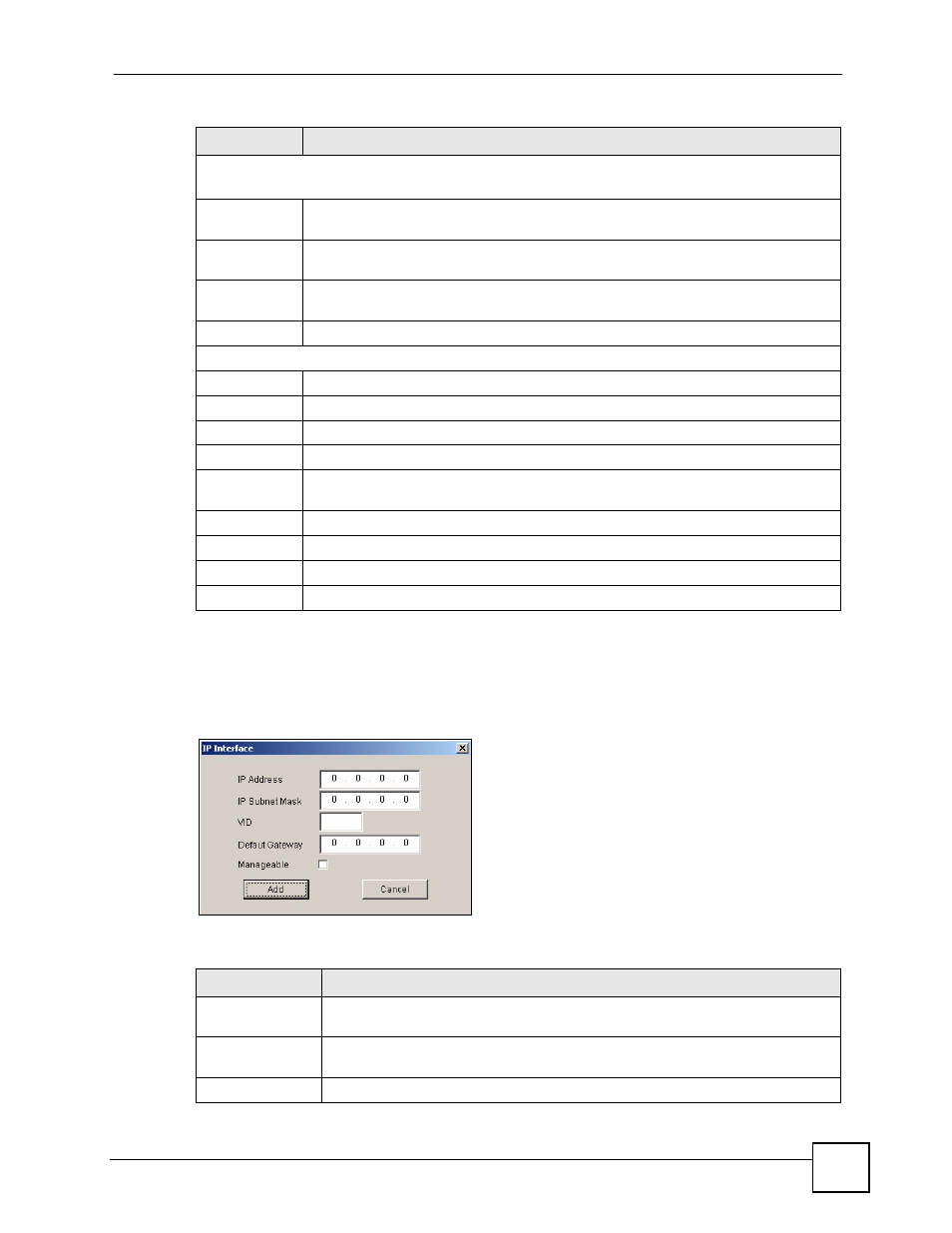

Figure 99 System Configuration: IP Setup: Add
The following table describes the labels in this screen.
Out-of-band Management IP Address
Use these fields to set the settings for the out-of-band management port.
IP Address
Enter the out-of-band management IP address of your switch in dotted decimal
notation. For example, 192.168.0.1.
IP Subnet
Mask
Enter the IP subnet mask of your switch in dotted decimal notation for example
255.255.255.0.
Default
Gateway
Enter the IP address of the default outgoing gateway in dotted decimal notation, for
example 192.168.0.254
Apply
Click Apply to save the settings for this part of the screen.
IP Interface
Index
This field displays the index number of an entry.
IP Address
This field displays IP address of the switch in the IP domain.
Subnet Mask
This field displays the subnet mask of the switch in the IP domain.
VID
This field displays the VLAN identification number of the IP domain on the switch.
Default
Gateway
This field displays the IP address of the gateway device.
Manageable
Add Click
Add to configure a new IP interface.
Modify
Click Modify to change the settings of a selected IP interface.
Delete
Click Delete to remove a selected IP interface.
Table 62 System Configuration: IP Setup (continued)
LABEL
DESCRIPTION
Table 63 System Configuration: IP Setup: Add
LABEL
DESCRIPTION
IP Address
Enter the IP address of your switch in dotted decimal notation for example
192.168.1.1. This is the IP address of the switch in an IP routing domain.
IP Subnet Mask
Enter the IP subnet mask of an IP routing domain in dotted decimal notation. For
example, 255.255.255.0.
VID
Enter the VLAN identification number to which the IP address belongs.
