Chapter 5 View

NetAtlas Workgroup User’s Guide

73

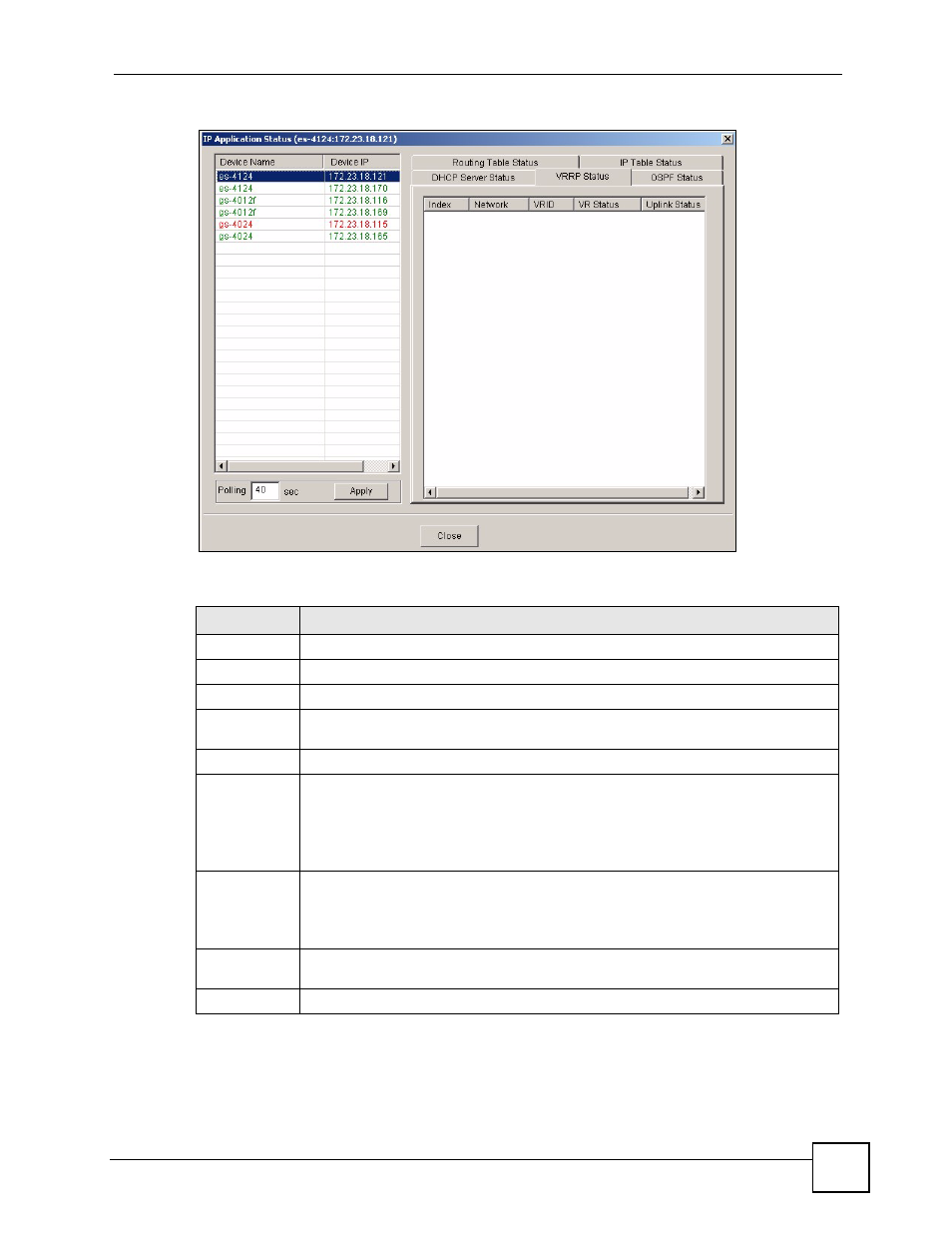

Figure 36 View: IP Application Status: VRRP Status

The following table describes the labels in this screen.

5.8.5 OSPF Status

Follow the steps below to view the OSPF status of a selected device.

Table 27 View: IP Application Status: VRRP Status

LABEL

DESCRIPTION

Device Name

This field displays the descriptive name of a device.

Device IP

This field displays the IP address of a device

Index

This field displays the index number of a rule.

Network

This field displays the IP address and the subnet mask bits of an IP routing domain

that is associated to a virtual router.

VRID

This field displays the ID number of the virtual router.

VR Status

This field displays the status of the virtual router.
This field is Master indicating that this switch functions as the master router.
This field is Backup indicating that this switch functions as a backup router.
This field displays Init when this switch is initiating the VRRP protocol or when the

Uplink Status field displays Dead.

Uplink Status

This field displays the status of the link between this switch and the uplink gateway.
This field is Alive indicating that the link between this switch and the uplink gateway is

up. Otherwise, this field is Dead.
This field displays Probe when this switch is check for the link state.

Polling

The text box displays how often (in seconds) this screen refreshes. You may change

the refresh interval by typing a new number in the text box and then clicking Apply.

Close

Click Close to close this screen.
