Chapter 6 Template

NetAtlas Workgroup User’s Guide

82

6.4 Static Multicast Group Template

Use the static multicast filter to allow incoming frames based on multicast MAC address(es)
that you specify. This feature can be used in conjunction with IGMP snooping to allow
multicast MAC address(es) that are not learned by IGMP snooping. Use the static multicast
filter to pass routing protocols, such as RIP and OSPF.
Click Template > Multicast Template to display the screen as shown.

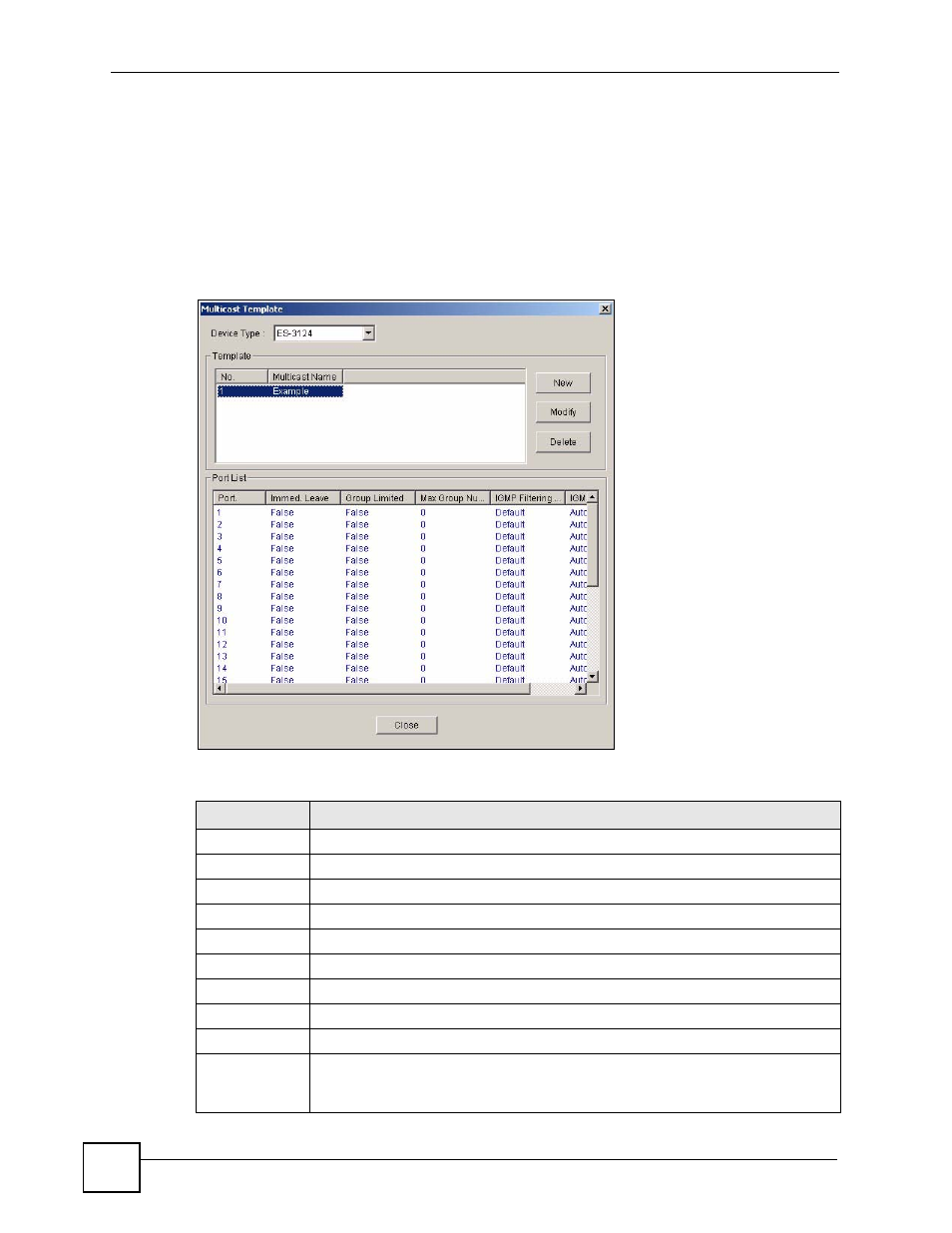

Figure 43 Template: Multicast Template

The following table describes the labels in this screen.

Table 34 Template: Multicast

LABEL

DESCRIPTION

Device Type

Select a device from the drop-down list box to view the device’s VLAN configuration.

Template

No.

This field displays the index number.

Multicast Name

This field displays the descriptive name for the multicast template.

New

Click New to create a new multicast template.

Modify

Click Modify to change the settings of the selected multicast template.

Delete

Click Delete to remove the selected multicast template.

Port List

Port

This field displays the port number.

Immed. Leave

This field displays True when the switch is set to remove this port from the multicast

tree when an IGMP version 2 leave message is received on this port.
This field displays False when the feature is disabled.
