Chapter 16 Ethernet Port Configuration

NetAtlas Workgroup User’s Guide

167

The following table describes the fields in this screen.

16.5 Port STP

Use the Port STP screen to set multiple/Rapid STP for the selected port(s).
To open the configuration screen, right-click on the switch in the Device List Panel, and click
Configuration > Ethernet Port > Port STP. Then select a device and the port(s) to which
you want to apply this configuration.

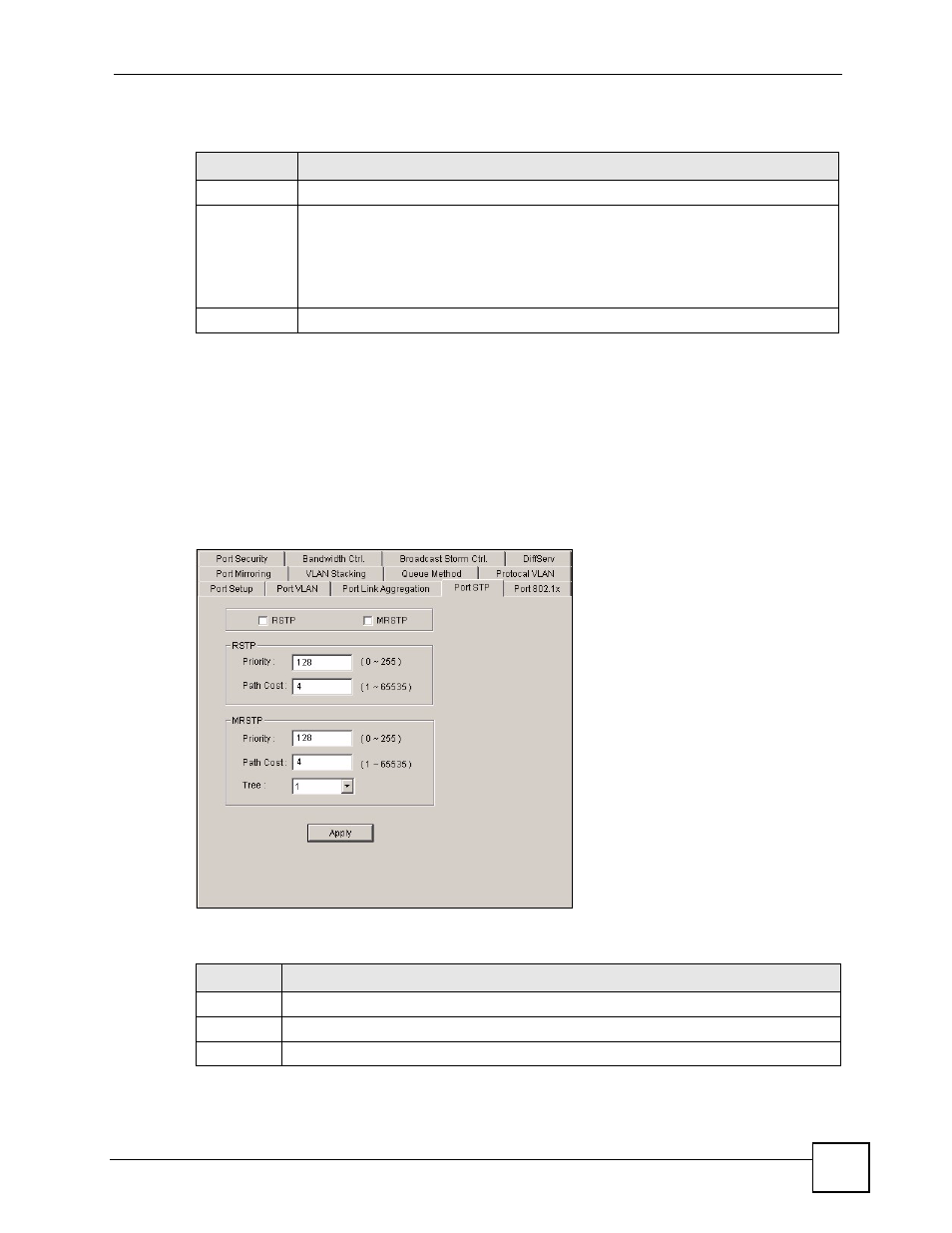

Figure 117 Ethernet Port Configuration: Port STP

The following table describes the fields in this screen.

Table 82 Ethernet Port Configuring: Port Link Aggregation

LABEL

DESCRIPTION

Group

Select the trunk group to which a port belongs.

LACP

Timeout

Timeout is the time interval between the individual port exchanges of LACP packets in

order to check that the peer port in the trunk group is still up. If a port does not

respond after three tries, then it is deemed to be “down” and is removed from the

trunk. Set a short timeout (one second) for busy trunked links to ensure that disabled

ports are removed from the trunk group as soon as possible. Select from 1 second to

30 seconds.

Apply

Click Apply to save the changes.

Table 83 Ethernet Port Configuration: Port STP

LABEL

DESCRIPTION

RSTP

Select this check box to activate Rapid STP (RSTP) on this port.

MRSTP

Select this check box to activate Multiple Rapid STP (MRSTP) on this port.

RSTP
