Chapter 3 Switch Manager
NetAtlas Workgroup User’s Guide
45
3.3 System Message Panel Alarm Status
The colors of the alarm icons (in the System Message Panel) indicate the real-time status of
the current selected device. The following table describes the alarm states used.
If an alarm turns on, click the Port Status tab in the System Message Panel or proceed to
Section 5.1 on page 57 for hardware troubleshooting.
3.4 System Message Panel Port Status
Proceed to Section 5.4 on page 62 for information on the details displayed in this screen.
3.5 Menu Shortcut Buttons
The following is a brief overview of the menu shortcut buttons.

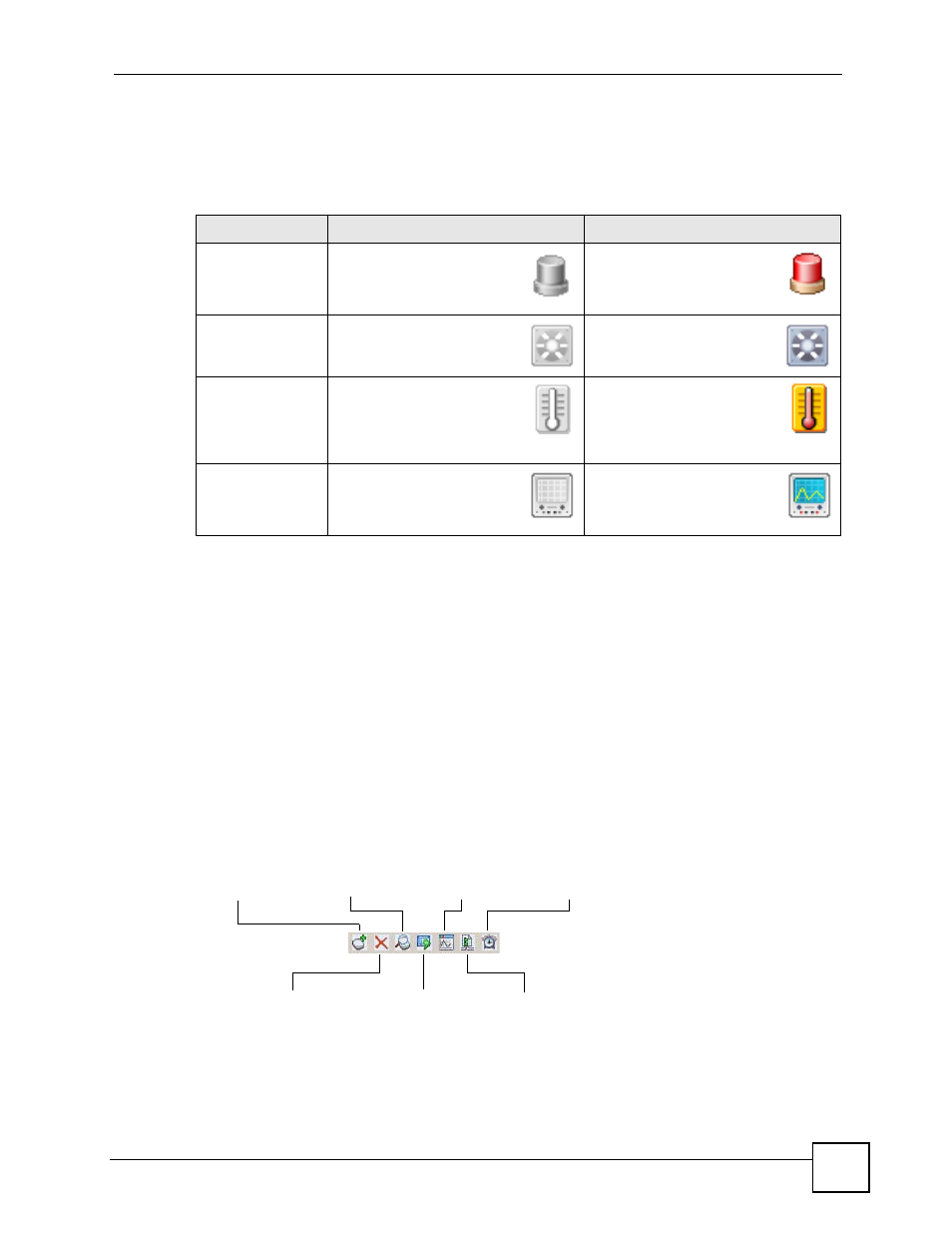

Figure 15 EMS Main Screen Shortcut Bar
Table 9 System Message Panel Alarm Status
PANEL ALARMS ALARM OFF ALARM ON
ALARM When this icon is grayed out,
the device fan, temperature
or voltage alarm is off.
The fan, temperature and
voltage alarms are all on. A
serious hardware problem
exists.
FAN When this icon is grayed out,
the device fans are
functioning properly.
One or more of the device
fans has a problem.
TEMP When this icon is grayed out,
temperatures at all sensor
points in the switch are within
the threshold temperature
range.
The temperature at a sensor
point in the switch has risen
above or below the threshold
temperature range.
VOL When this icon is grayed out,
the power supply at all
sensor points in the switch is
within the tolerance range.
The power supply at a sensor
point in the switch has fallen
out of the tolerance range.
Add Submap/
Device Find Object
Delete Submap/
Device
Interface
Performance
Refresh Map Port Status
Event Log
