15.2.1 Configuring an 802.11Q VLAN
Ports are assigned membership in a VLAN by associating a VLAN ID with the ports.
In the VLAN Configuration screen, click New or Modify to display the setup screen.

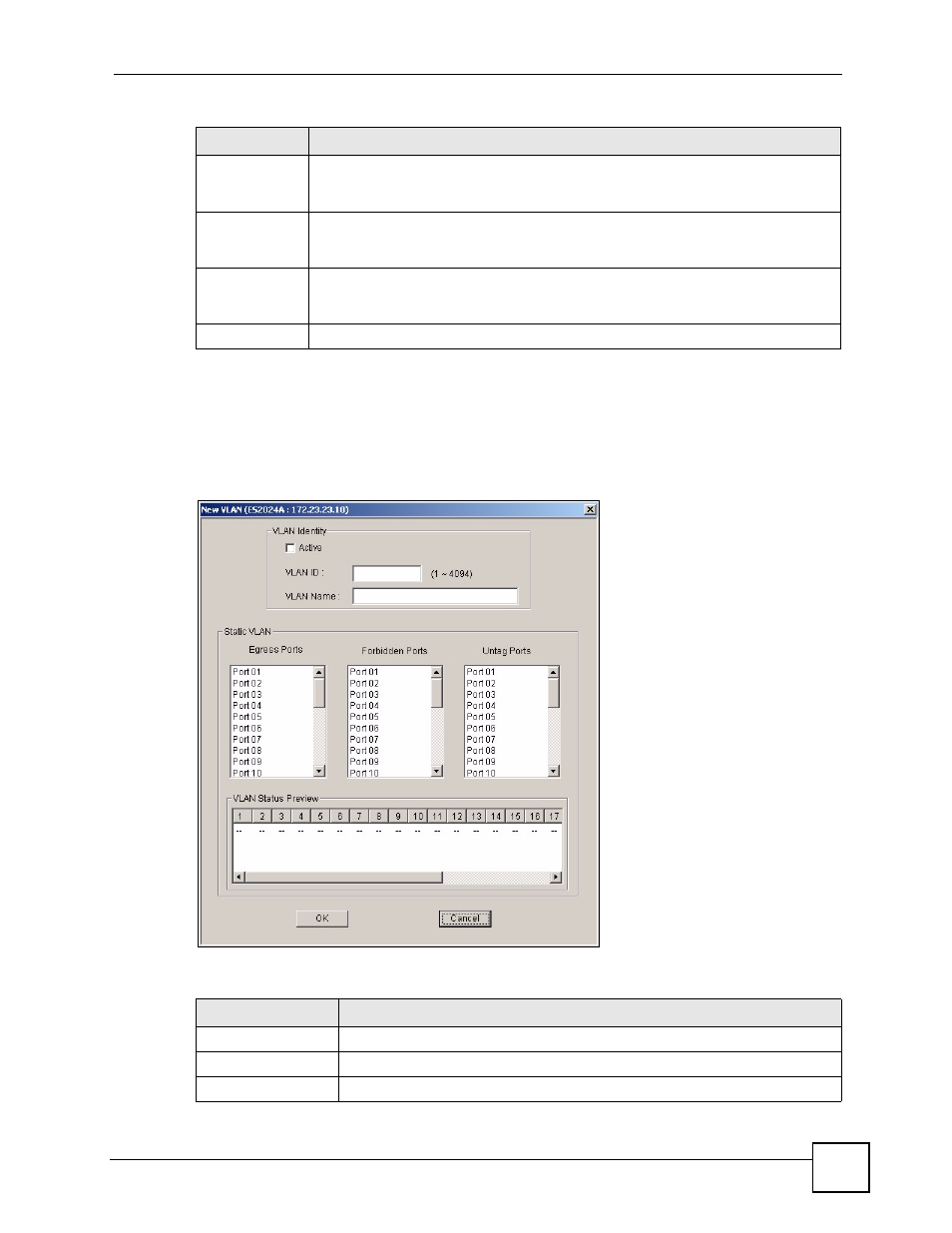

Figure 112 VLAN Configuration: 802.1Q: New or Modify
The following table describes the labels in this screen.
Modify Click on a VLAN in the left-hand column of this screen. Change the VLAN ID, VLAN
Name or change the configuration of the egress, forbidden and untagged ports.
Click the Modify button to save the changes.
Load Template Use a VLAN template to overwrite existing selected VLANs. Select one or more
VLANs and click the Load Template button. See Section 6.2 on page 77 for more
information.
Port List Click on a port in the Egress Ports list to add the selected port to the port list. If a
port is not selected from any of the three port lists, then it is a normal tagged port.
Refer to Table 77 on page 159 for the VLAN port type descriptions.
Close Click Close to close the screen.
Table 76 VLAN Configuration: 802.1Q (continued)
LABEL DESCRIPTION
Table 77 VLAN Configuration: 802.1Q: Modify
LABEL DESCRIPTION
VLAN Identity
Active Select Active to enable this VLAN.
VLAN ID This field displays a unique number to identify the VLAN.
