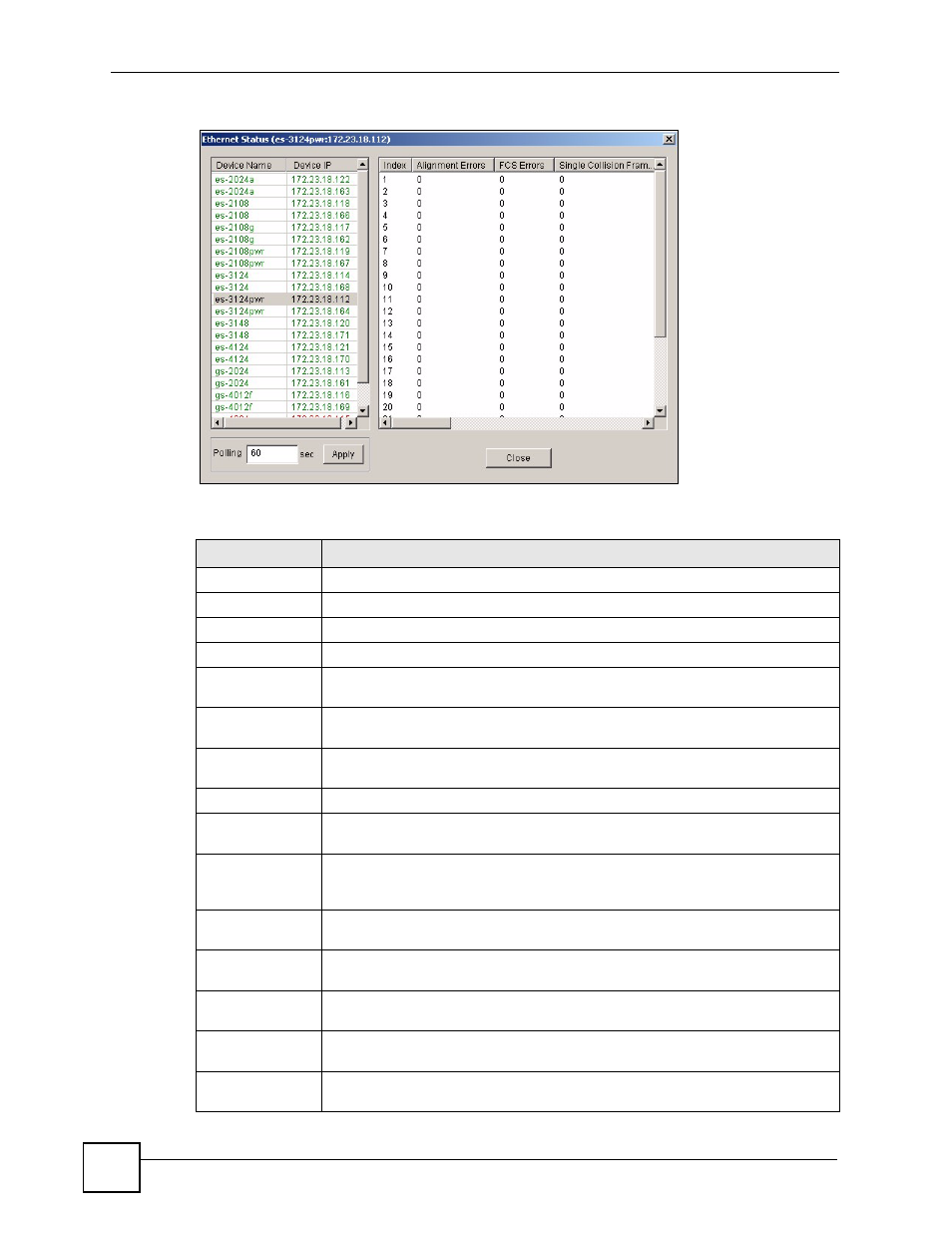

Figure 32 View: Ethernet Status
The following table describes the labels in this screen.
Table 23 View: Ethernet Status
LABEL DESCRIPTION
Device Name This field displays the descriptive name of a device.
Device IP This field displays the IP address of a device
Index This field displays the index number.
Alignment Errors This field displays the number of frames received with alignment errors.
FCS Errors This field displays the number of frames received with Frame Check Sequence
(FCS) errors.
Single Collision
Frames
This field displays the number of frames with 1 collision detected.
Multiple Collision
Frames
This field displays the number of frames with 2 to 15 collisions detected.
SQE Test Errors This field displays the number of frames with Signal Quality Error (SQC) errors.
Deferred
Transmissions
This field displays the number of frames that were delayed due to deferred
transmission.
Late Collisions A late collision is counted when a device detects a collision after it has sent the
512th bit of its frame. This field displays the number of times such a collision is
detected.
Excessive
Collisions
This field displays the number of packets with in excess of 15 collisions detected.
Mac Transmission
Errors
This field displays the number of packets with internet MAC sublayer transmission
error.
Carrier Sense
Errors
This field displays the number of times a carrier sense error occurred.
Frame Too Longs This field displays the number of frames dropped because they were bigger than
the maximum frame size.
Mac Receive
Errors
This field displays the number of frames received with MAC address errors.
