5.8 IP Application Status
Use the IP Application Status screens to view the routing table, IP table, DHCP server,
VRRP and OSPF status on layer3 switches (the GS or ES 4000 series).
5.8.1 Routing Table Status
Follow the steps below to view the routing table of a selected device.
1 Click View > IP Application Status.
2 Select a switch from the list located on the left-hand side of the screen.
3 Click the Routing Table Status tab.

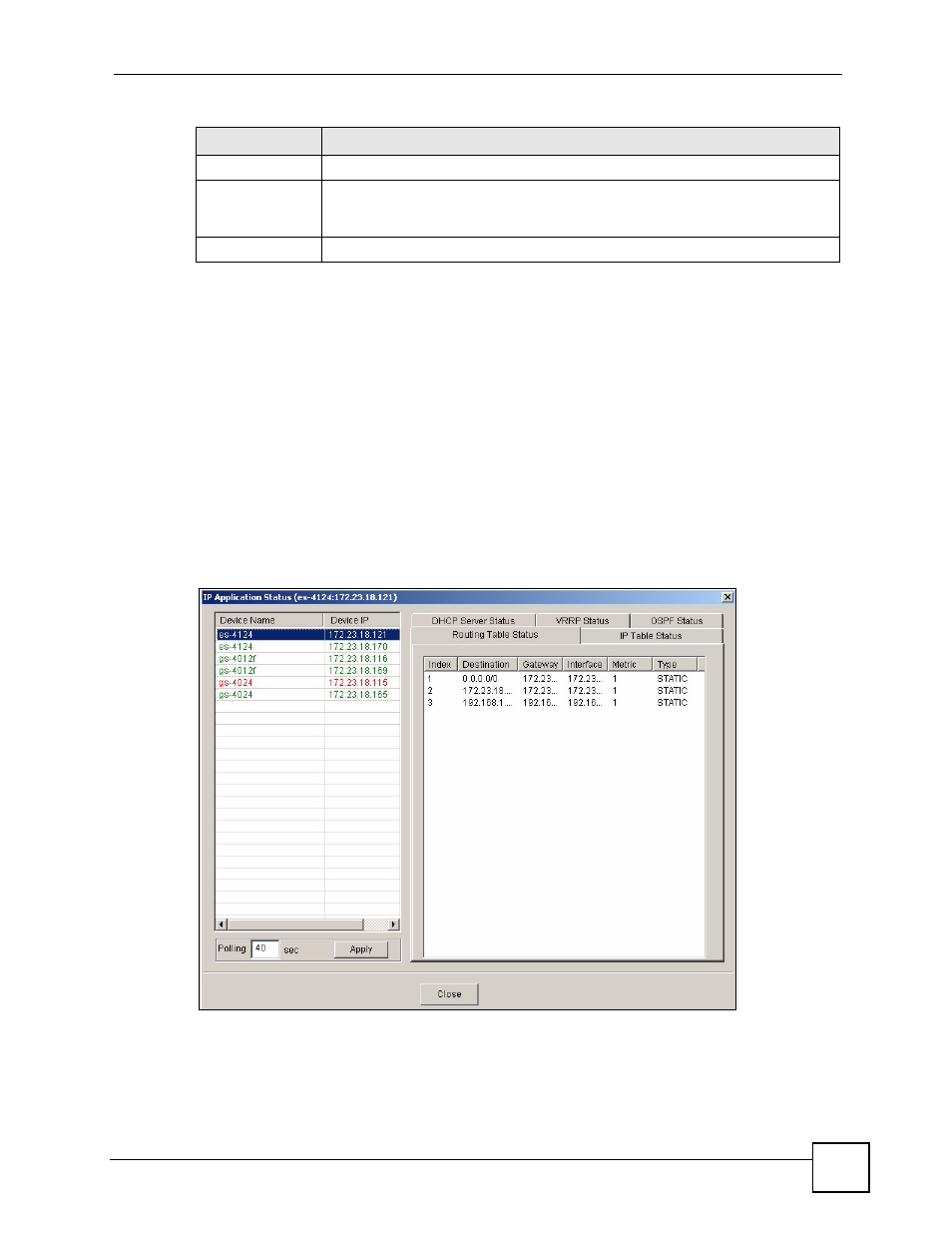

Figure 33 View: IP Application Status: Routing Table Status
Ether Chip Set
This field identifies the Ethernet chipset used for the interface.
Polling
The text box displays how often (in seconds) this screen refreshes. You may
change the refresh interval by typing a new number in the text box and then
clicking the Apply button.
Close
Click Close to close the screen.
Table 23 View: Ethernet Status (continued)
LABEL
DESCRIPTION
