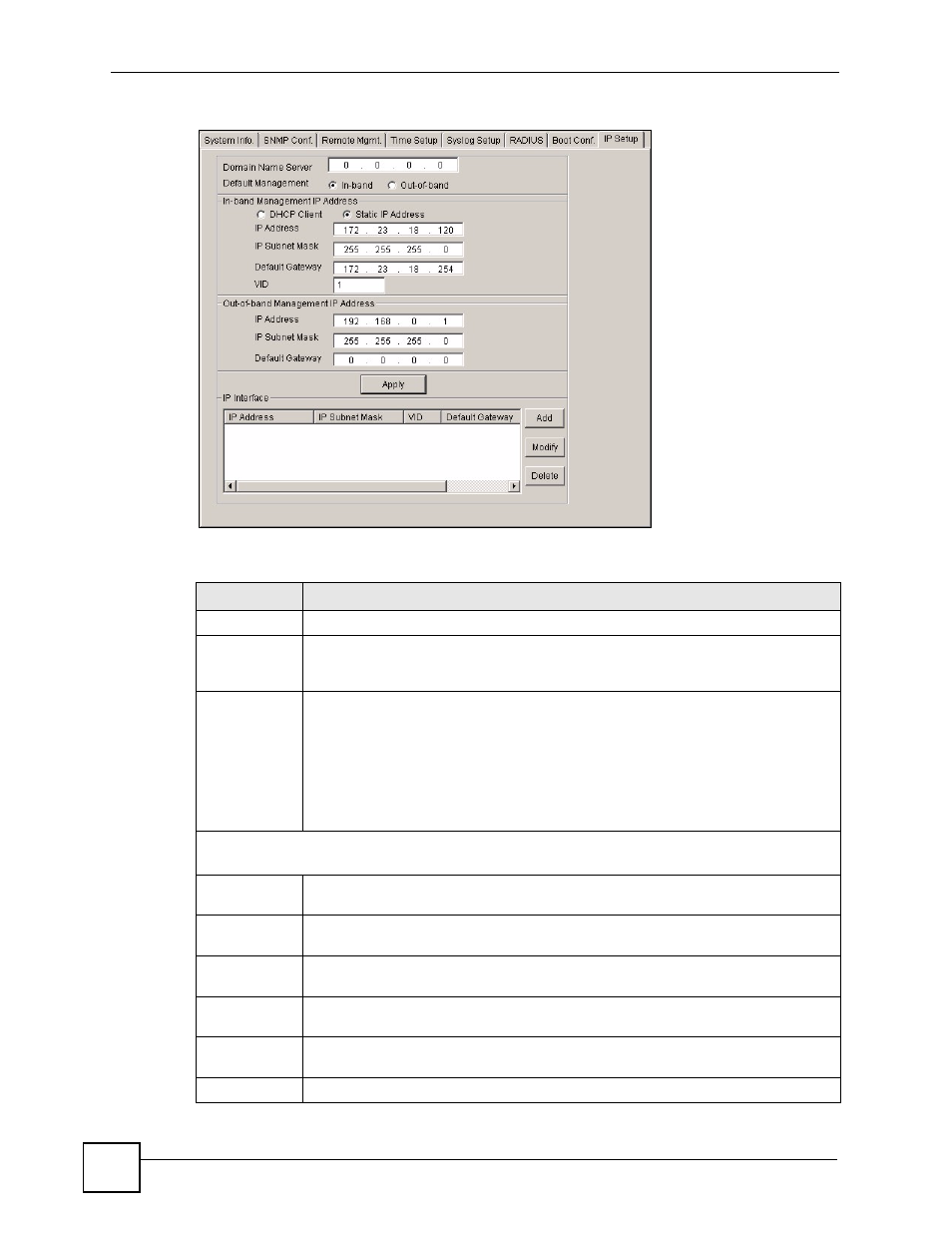

Figure 98 System Configuration: IP Setup
The following table describes the labels in this screen.
Table 62 System Configuration: IP Setup
LABEL DESCRIPTION
IP Setup
Domain Name
Server
DNS (Domain Name System) is for mapping a domain name to its corresponding IP
address and vice versa. Enter a domain name server IP address in order to be able to
use a domain name instead of an IP address.
Default
Management
Specify which traffic flow (In-Band or Out-of-band) the switch is to send packets
originating from itself (such as SNMP traps) or packets with unknown source.
Select Out-of-band to have the switch send the packets to the management port
labelled MGMT. This means that device(s) connected to the other port(s) do not
receive these packets.
Select In-Band to have the switch send the packets to all ports except the
management port (labelled MGMT) to which connected device(s) do not receive
these packets.
In-band Management IP Address
Use these fields to set the settings for the in-band management port.
DHCP Client Select this option to have the switch automatically obtain an IP address from a DHCP
server.
Static IP
Address
Select this option to specify a fixed IP address for the switch and configure the fields
below.
IP Address Enter the in-band management IP address of your switch in dotted decimal notation.
For example, 192.168.0.1.
IP Subnet
Mask
Enter the IP subnet mask of your switch in dotted decimal notation for example
255.255.255.0.
Default
Gateway
Enter the IP address of the default outgoing gateway in dotted decimal notation, for
example 192.168.0.254
VID Enter the VLAN ID to which this IP address belongs.
