Chapter 19 IP Configuration
NetAtlas Workgroup User’s Guide
202
The following table describes the labels in this screen.
19.3 DSCP Setting
You can configure the DSCP to IEEE802.1p mapping to allow the switch to prioritize all
traffic based on the incoming DSCP value according to the DiffServ to IEEE802.1p mapping
table.
The following table shows the default DSCP-to-IEEE802.1P mapping.
Configure DSCP mappings in the DSCP Setting screen.

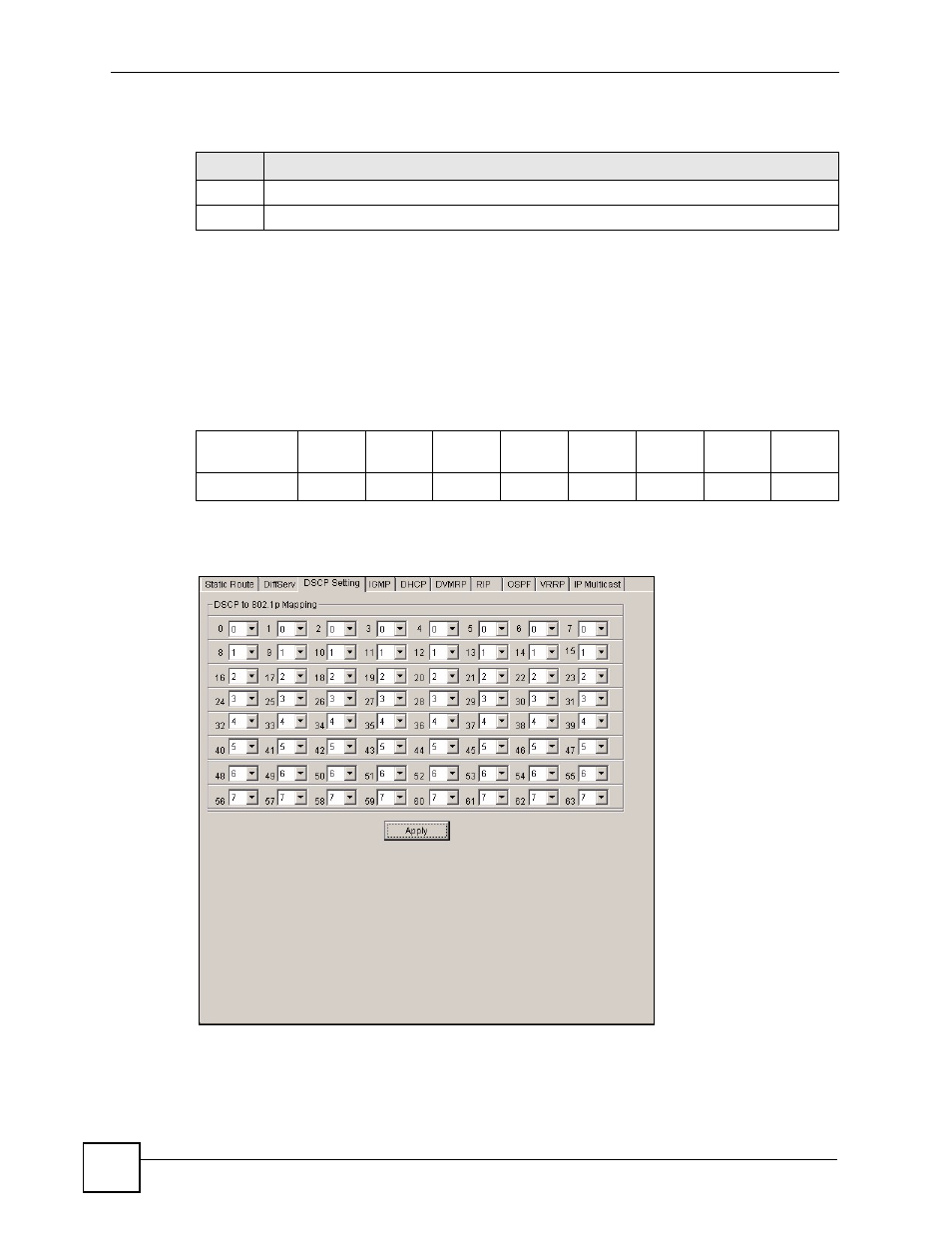

Figure 149 IP Configuration: DiffServ
Table 108 DiffServ: DSCP Setting
LABEL DESCRIPTION
Active Select Active to enable DiffServ on the port.
Apply Click Apply to save the changes.
Table 109 Default DSCP-IEEE802.1p Mapping
DSCP
VALUE
0 – 7 8 – 15 16 – 23 24 – 31 32 – 39 40 – 47 48 – 55 56 – 63
IEEE802.1P 0 1 2 3 4 5 6 7
