The following table describes the labels in this screen.
5.8.2 IP Table Status
Follow the steps below to view the IP table of a selected device.
1 Click View > IP Application Status.
2 Select a switch from the list located on the left-hand side of the screen.
3 Click the IP Table Status tab.

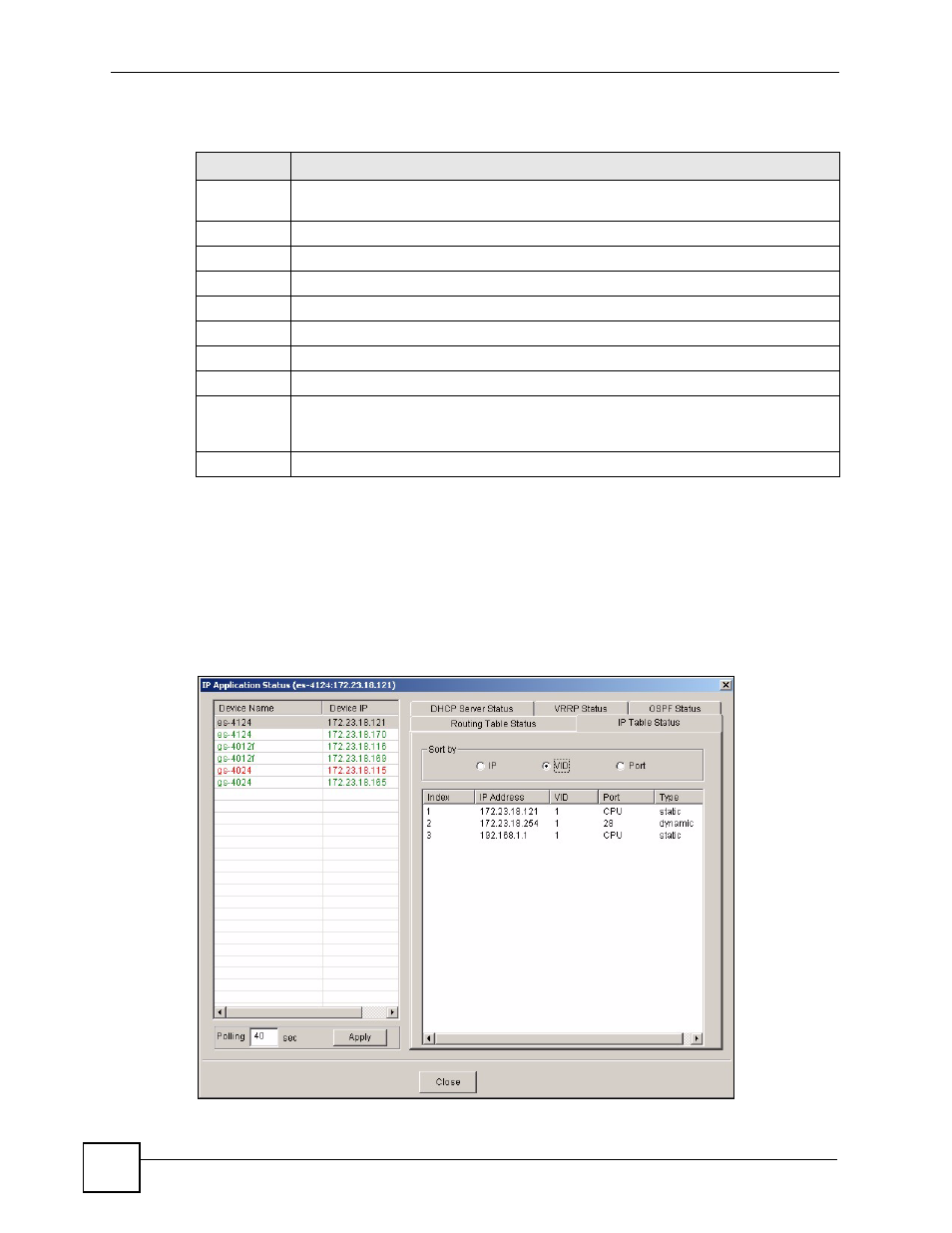

Figure 34 View: IP Application Status: IP Table Status
Table 24 View: IP Application Status: Routing Table Status
LABEL
DESCRIPTION
Device
Name
This field displays the descriptive name of a device.
Device IP
This field displays the IP address of a device
Index
This field displays the index number.
Destination
This field displays the destination IP routing domain.
Gateway
This field displays the IP address of the gateway device.
Interface
This field displays the IP interface to which this route belongs.
Metric
This field displays the cost of the route.
Type
This field displays the method used to learn the route.
Polling
The text box displays how often (in seconds) this screen refreshes. You may change
the refresh interval by typing a new number in the text box and then clicking the Apply
button.
Close
Click Close to close the screen.
