Chapter 14 Switch Configuration

NetAtlas Workgroup User’s Guide

155

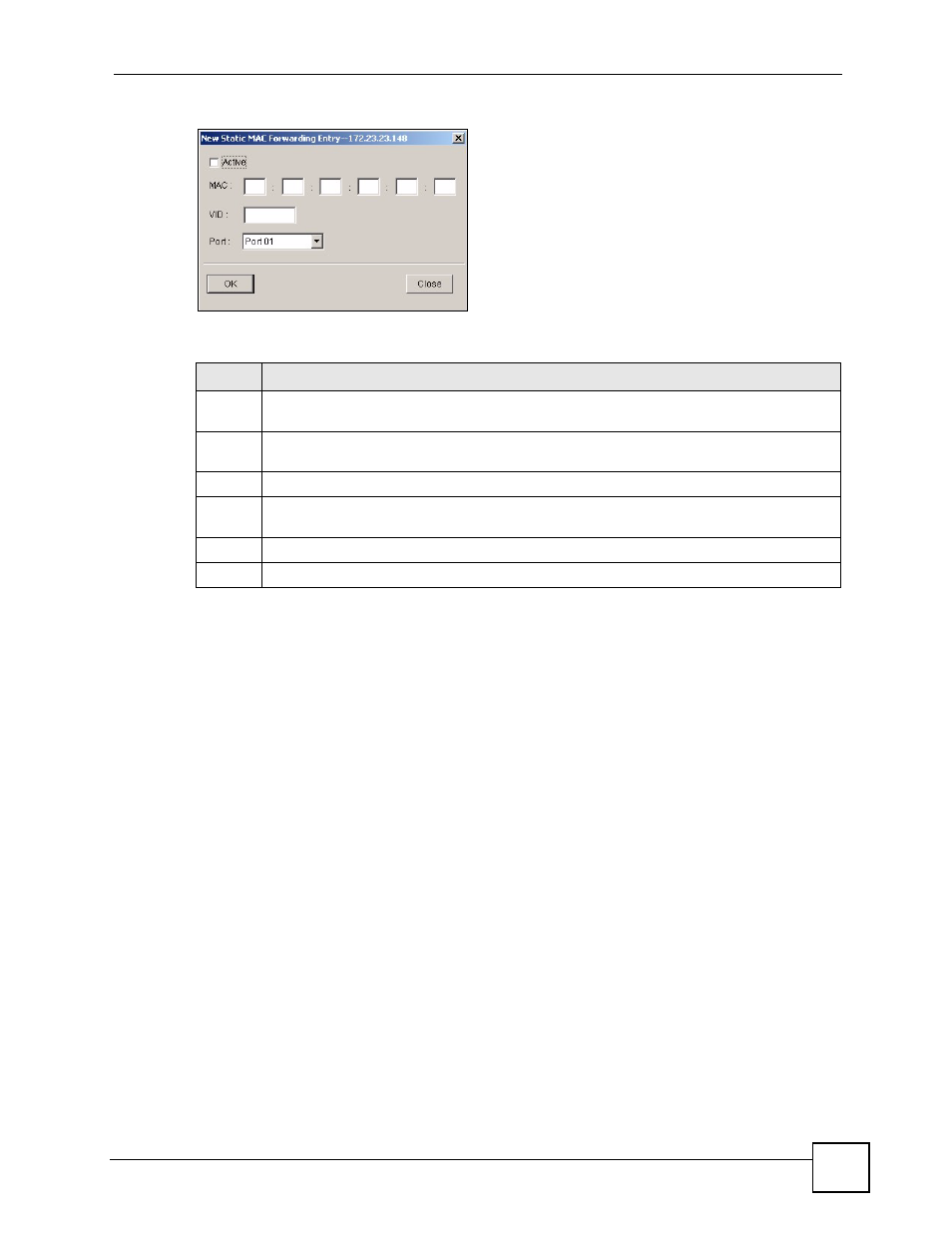

Figure 108 Switch Configuration: MAC Forwarding: Add

The following table describes the labels in this screen.

14.8 Mirroring

Port mirroring allows you to copy a traffic flow to a mirror port (the port you copy the traffic
to) in order that you can examine the traffic from the mirror port without interference.
Click Configuration > Switch Configuration > Mirroring to display the configuration
screen.

Table 74 Switch Configuration: MAC Forwarding: Add

LABEL

DESCRIPTION

Active

Select this check box to activate your rule. You may temporarily deactivate a rule without

deleting it by clearing this check box.

MAC

Enter the MAC address in valid MAC address format, that is, six hexadecimal character

pairs. Static MAC addresses do not age out.

VID

Enter the VLAN group identification number.

Port

Select a port where the MAC address entered in the previous field will be automatically

forwarded.

OK

Click OK to save the settings.

Close

Click Close to close the screen. All unsaved settings will be lost.
