Chapter 8 WAN Screens
ZyWALL 2 Plus User’s Guide
164

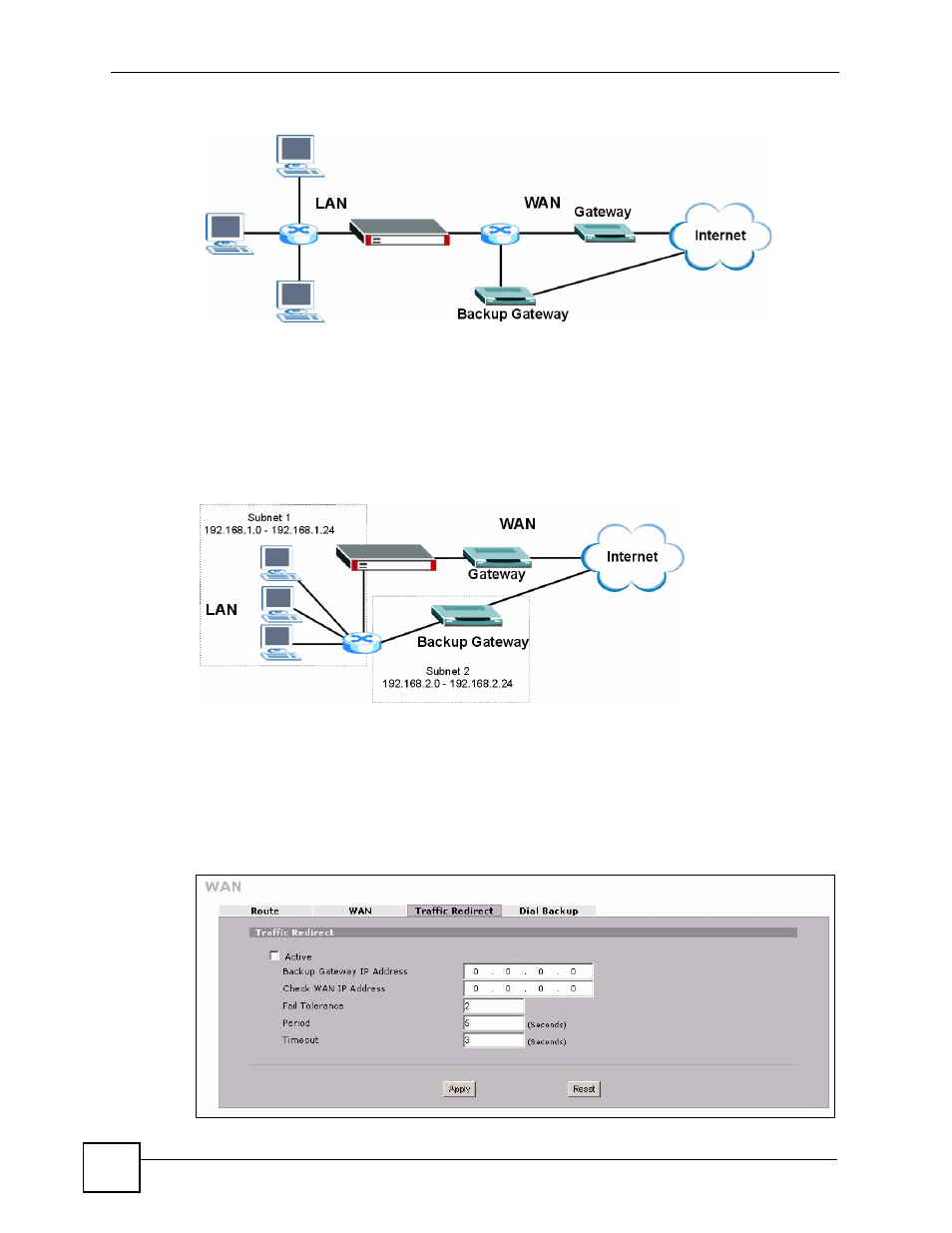

Figure 106 Traffic Redirect WAN Setup
IP alias allows you to avoid triangle route security issues when the backup gateway is
connected to the LAN or DMZ. Use IP alias to configure the LAN into two or three logical
networks with the ZyWALL itself as the gateway for each LAN network. Put the protected
LAN in one subnet (Subnet 1 in the following figure) and the backup gateway in another
subnet (Subnet 2). Configure a LAN to LAN/ZyWALL firewall rule that forwards packets
from the protected LAN (Subnet 1) to the backup gateway (Subnet 2).
Figure 107 Traffic Redirect LAN Setup
8.9 Configuring Traffic Redirect
To change your ZyWALL’s traffic redirect settings, click NETWORK > WAN > Traffic
Redirect. The screen appears as shown.
Figure 108 NETWORK > WAN > Traffic Redirect
