P-793H User’s Guide
68 Chapter 4 Point-to-point Configuration
4.2 Point-to-point Connection Procedure
Follow these directions to set up a point-to-point connection.
1 Set up the Server .
2 Set up the Client .
3 Connect the ZyXEL Devices .
4.2.1 Set up the Server
1 Log in to the ZyXEL Device that will be the server. (See Chapter 2 on page 45 .)
2 Click Network > WAN > Internet Connection.
3 Configure the VPI, VCI, Multiplexing, and Encapsulation fields for the point-to-point
connection. In the Encapsulation field, select either RFC 1483 or ENET ENCAP.
4 Scroll down to the Service Type section. The following screen appears.

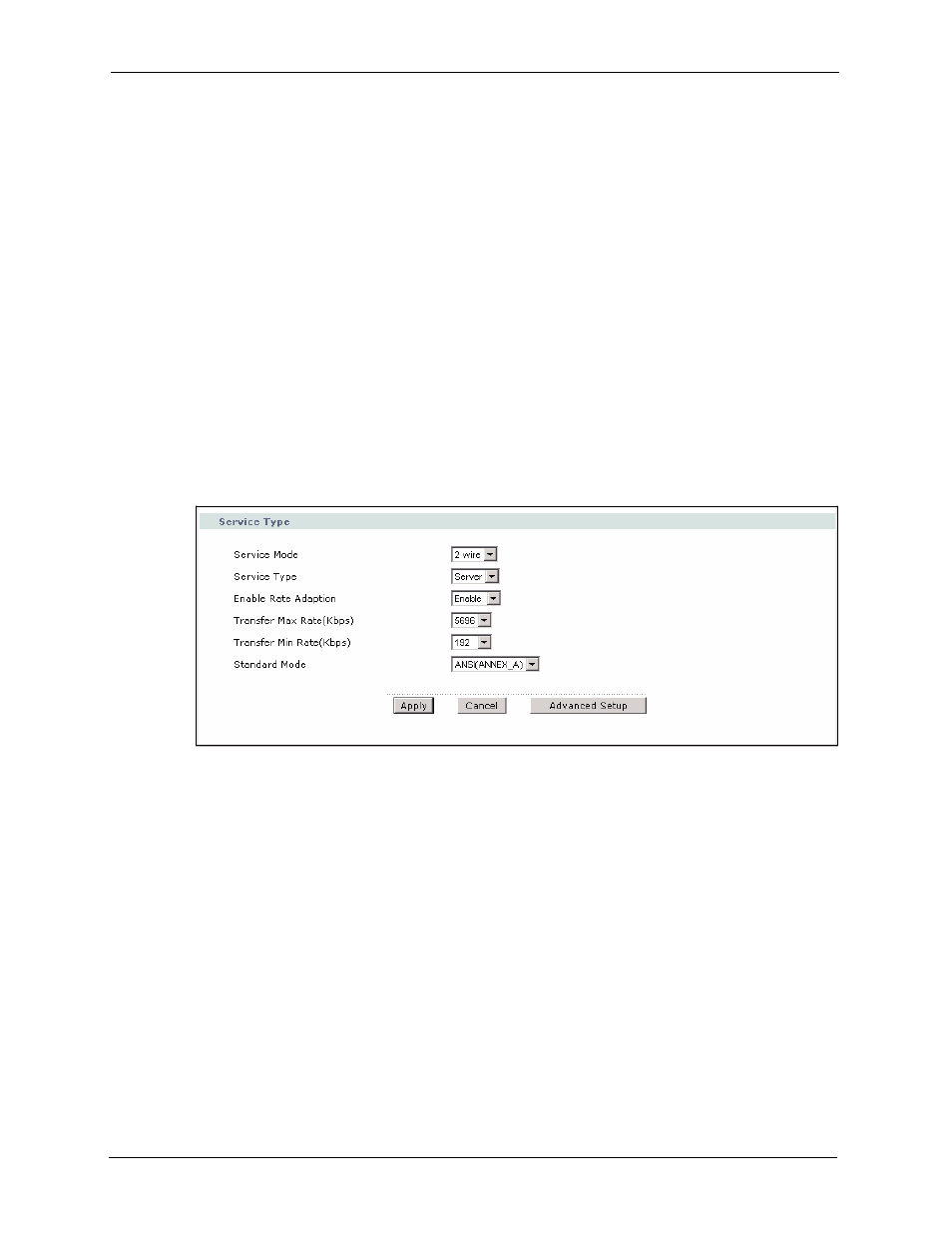

Figure 21 WAN > Internet Connection > Service Type
5 In the Service Mode field, indicate whether the phone line is a 2-wire connection or a 4-
wire connection.
6 In the Service Type field, select Server. The rest of the fields are enabled.
7 Configure the rest of the fields, if necessary. For example, you might want to set the
Transfer Max Rate to the maximum value.
8 Click Apply.
4.2.2 Set up the Client
1 Log in to the ZyXEL Device that will be the client. (See Chapter 2 on page 45 .)
2 Click Network > WAN > Internet Connection.
3 Set the VPI, VCI, Multiplexing, and Encapsulation to the same values you set in the
server.
4 Scroll down to the Service Type section. See Figure 21 on page 68 above.
