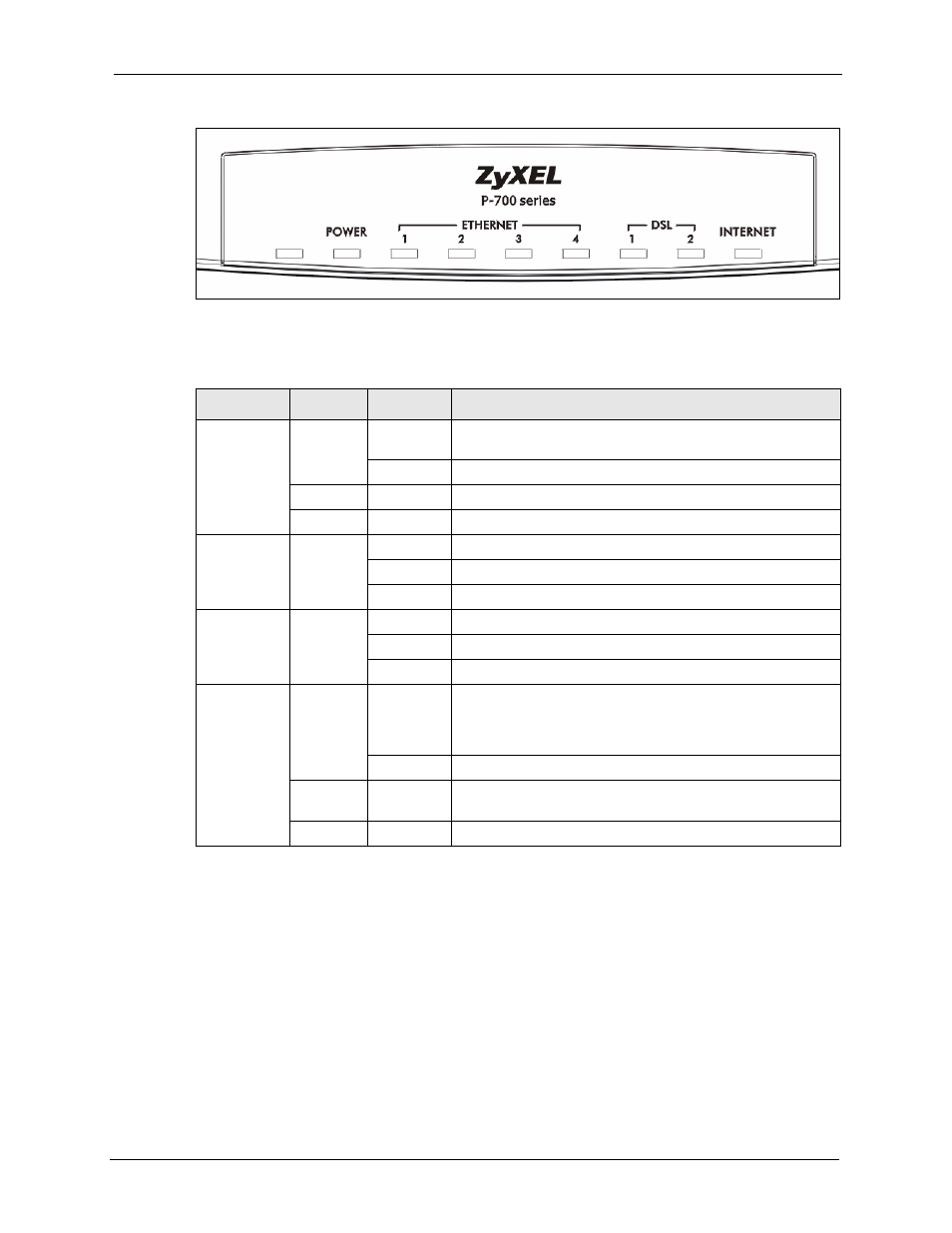

Figure 3 LEDs
The following table describes the LEDs.
Table 1 LEDs
LED
COLOR
STATUS
DESCRIPTION
POWER
Green
On
The ZyXEL Device is receiving power and functioning
properly.
Blinking
The ZyXEL Device is rebooting or performing diagnostics.
Red
On
Power to the ZyXEL Device is too low.
Off
The system is not ready or has malfunctioned.
LAN 1~4
Green
On
This port has a successful Ethernet connection.
Blinking
This port is sending/receiving data.
Off
This port is not connected.
DSL1/DSL2
(DSL2 for 4-
wire only)
Green
On
The DSL line is up.
Blinking
The ZyXEL Device is initializing the DSL line.
Off
The DSL line is down.
INTERNET
Green
On
The Internet connection is up, and the ZyXEL Device has an
IP address. (If the ZyXEL Device uses RFC 1483 in bridge
mode, this light does not turn on, but it does blink when the
ZyXEL Device is sending/receiving data.)
Blinking
The ZyXEL Device is sending/receiving data.
Red
On
The ZyXEL Device tried to get an IP address, but an error
occurred.
Off
The Internet connection is down.
