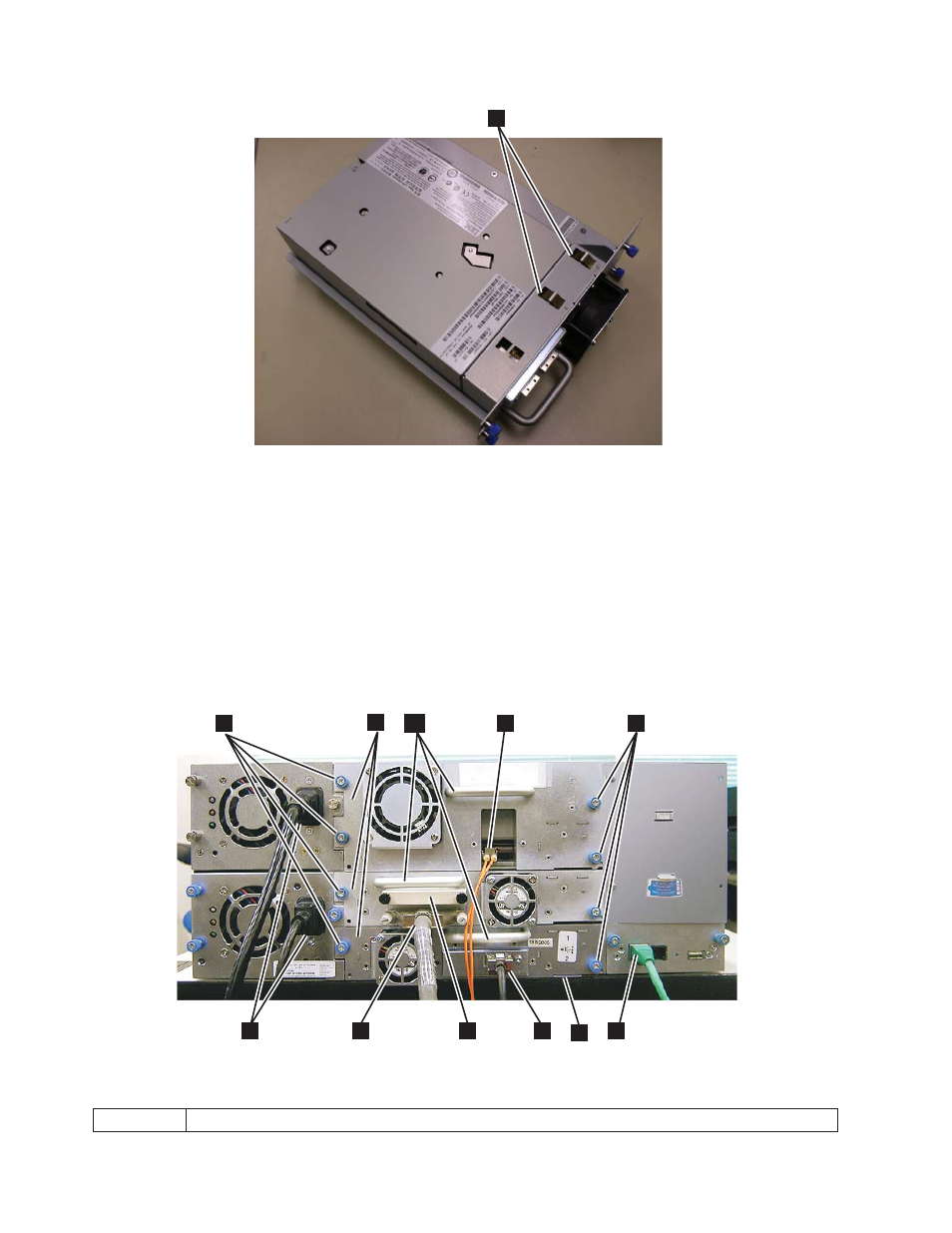

Tape drive sleds are installed at the back of the library.
1. Power OFF the library before removing and/or installing a SCSI drive sled.
Fibre Channel and SAS drive sleds are hot pluggable and may be removed
and installed while the library is powered ON.
2. If necessary, unload the tape cartridge from the drive to be removed.
v Using the Operator Control Panel: Control → Move Cartridges
v Using the Web User Interface: Manage Library → Move Media
3. Remove the host interface cable ( 1 , 2 , or 4 in Figure 10-5) and
terminator ( 3 for SCSI drive sled only).
1 SCSI cable
a77ug202
1
Figure 10-4. Library drive sled with ESD springs [1] (SAS sled shown)
a77ug204
1 3
4
2 5 6
10 7
8
9 7
Figure 10-5. Drive sled components (full-high fibre drive in top position, half-high SCSI drive in middle position,
half-high SAS drive in bottom position) on back panel of a 4U library
10-4 Dell PowerVault TL2000 Tape Library and TL4000 Tape Library User's Guide
