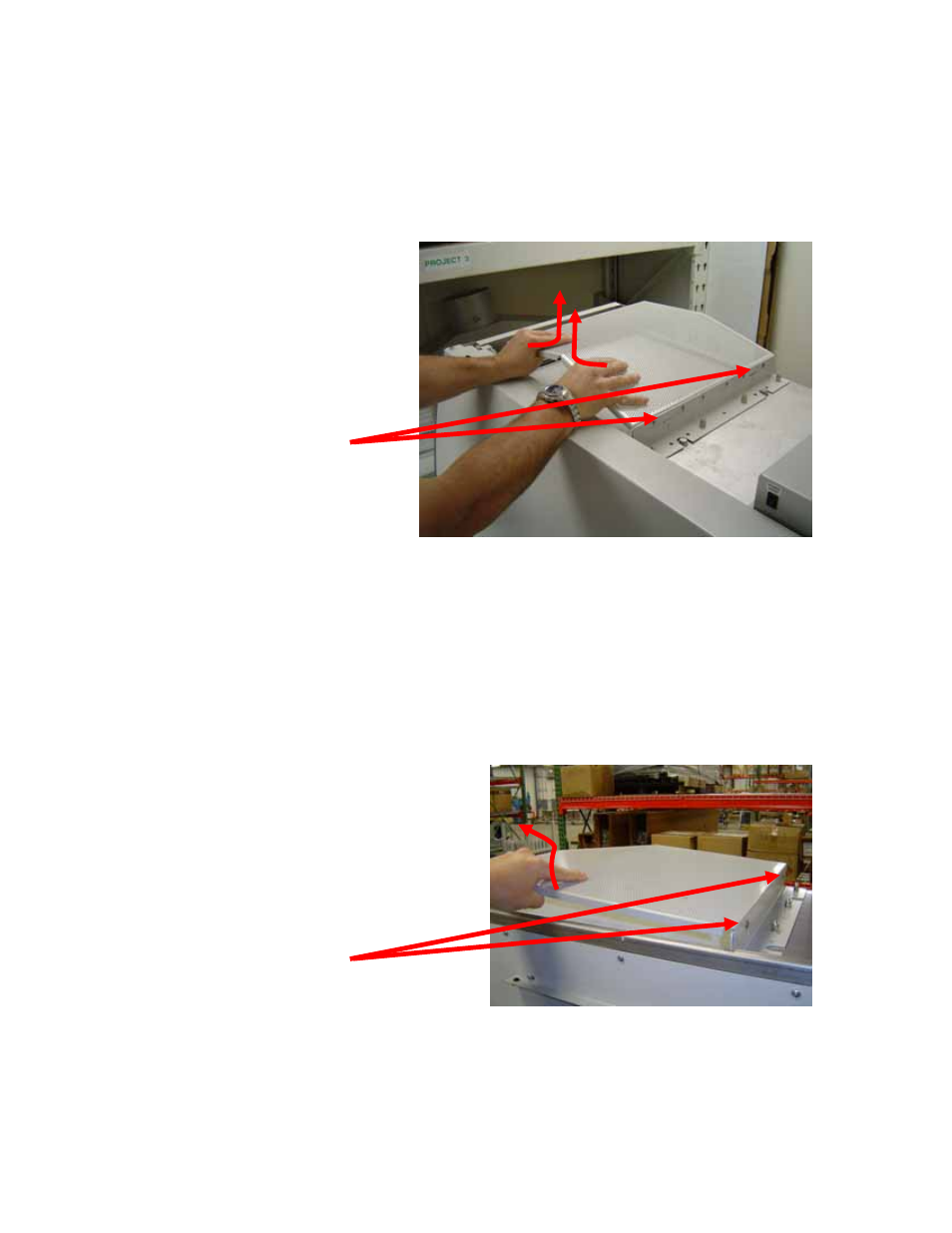

On Models Manufactured prior to April 2009 –
6. Remove the exhaust HEPA filter cover by lifting and compressing the cover until
its tabs are clear of the exhaust filter bracket, as shown in Figure 5-8.
Figure 5-8
Lift the center of the cover up
while compressing the cover.
Cover tabs in bracket slots
Note: exercise caution when removing or installing the exhaust filter cover, to prevent
damaging the Exhaust HEPA filter.
On Models Manufactured After April 2009 –
7. Remove the exhaust HEPA filter cover by loosening the four Phillips Screws on
the sides of the cover, then pivot the front of the cover up, and then pull it
forward as shown in Figure 5-8a.
Figure 5-8a
Pivot the front of the cover up and then pull
it forward (dress panel removed for clarity
only).
Loosen these screws only
Note: exercise caution when removing or installing the exhaust filter cover, to prevent
damaging the Exhaust HEPA filter.
