Corner Post Lower Trim
The corner post lower trim pieces are secured by two 1/4-inch hex screws. When
properly positioned, the bottom edge of the rubber washer on the screws should contact
the chassis of the Logic. To adjust the trim piece, loosen both screws, reposition the
trim piece, and then tighten the hex screws. See Figure 8-3.

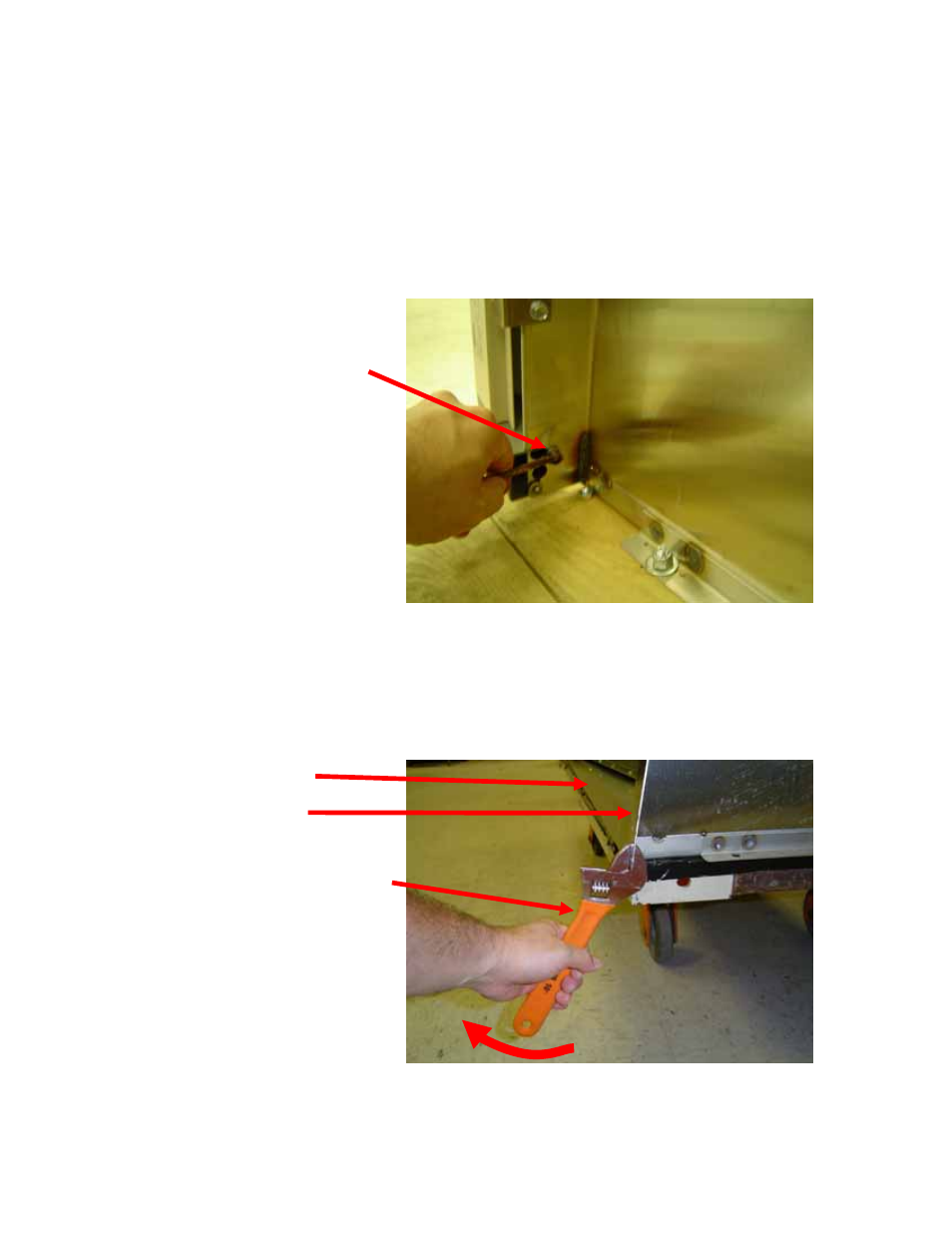

Figure 8-3
Using a ¼-inch wrench to adjust
the corner post screws
Note: DO NOT over tighten the
screws; damage to the trim
piece may occur.
If the corner post lower trim pieces do not fit flush to the bottom edge of the metal
corner post, examine the front flange of the chassis. The flange should be straight. If it
is bent back, it can be straightened by bending the flange forward with an adjustable
wrench, as shown in Figure 8-4.
Figure 8-4
Front side of the Logic
Logic Chassis Flange
Using an adjustable wrench to
straighten the flange
