Note: The diffuser acorn nuts are secured to the studs with a removable
thread locking compound to prevent them from vibrating loose during
shipment of the Logic. There may be some resistance the first time the nuts
are removed; this is normal. No additional thread locking compound need be
applied to these acorn nuts unless the unit is being prepared for shipment.
3. Allow the front of the diffuser to drop and pull it straight out of the cabinet, as
shown in Figure 7-29.

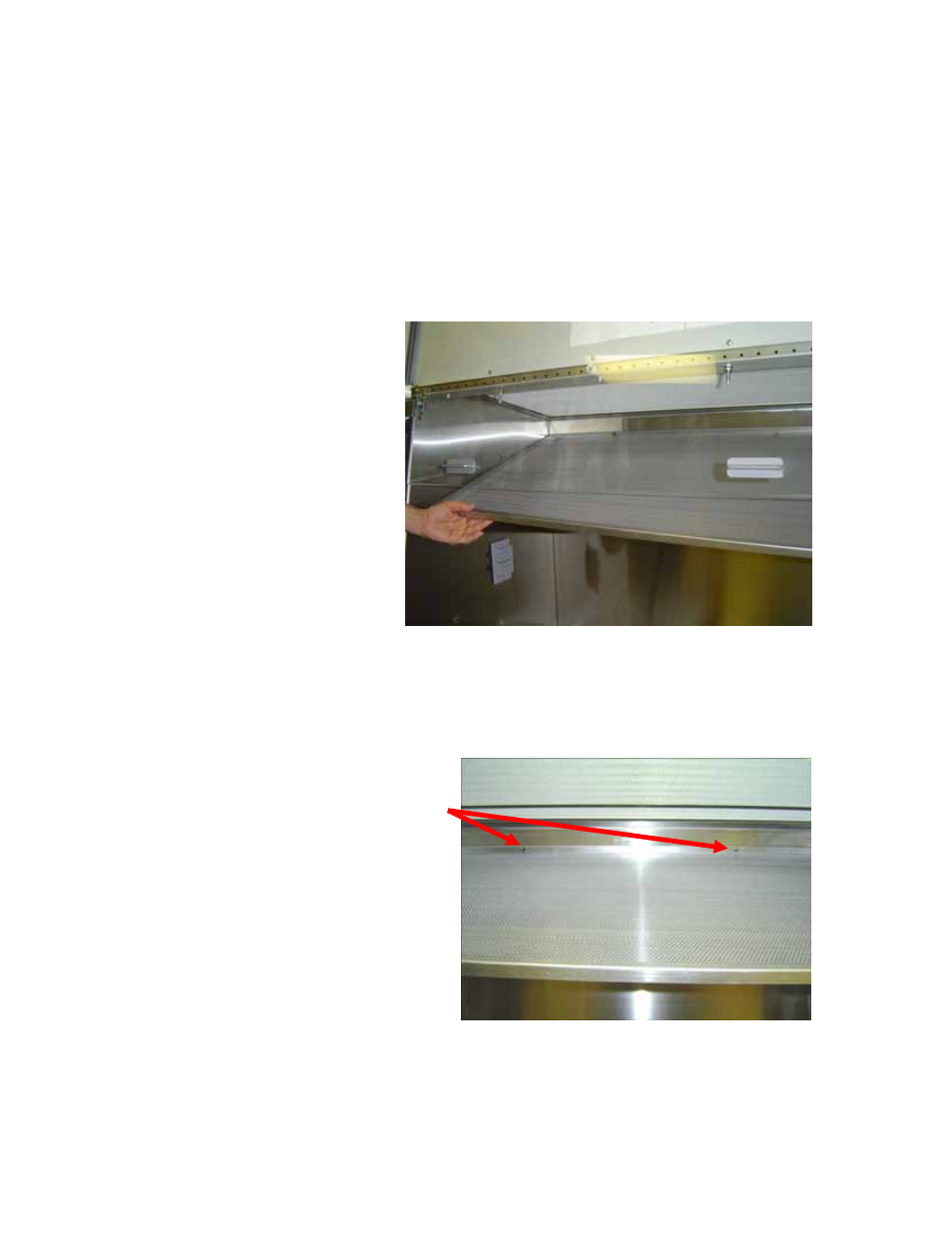

Figure 7-29
4. To reinstall the diffuser, ensure that the two holes on the back edge of the
diffuser align with the diffuser support pins on the rear wall of the work area, as
shown in Figure 7-30.
Figure 7-30
Diffuser pins engaging the holes in the
rear of the diffuser.
