Circuit Breaker

Resetting a circuit breaker

To reset any of the circuit breakers located on the left side of the electronics

module, as shown in Figure 9-4, depress the white button until it sets.

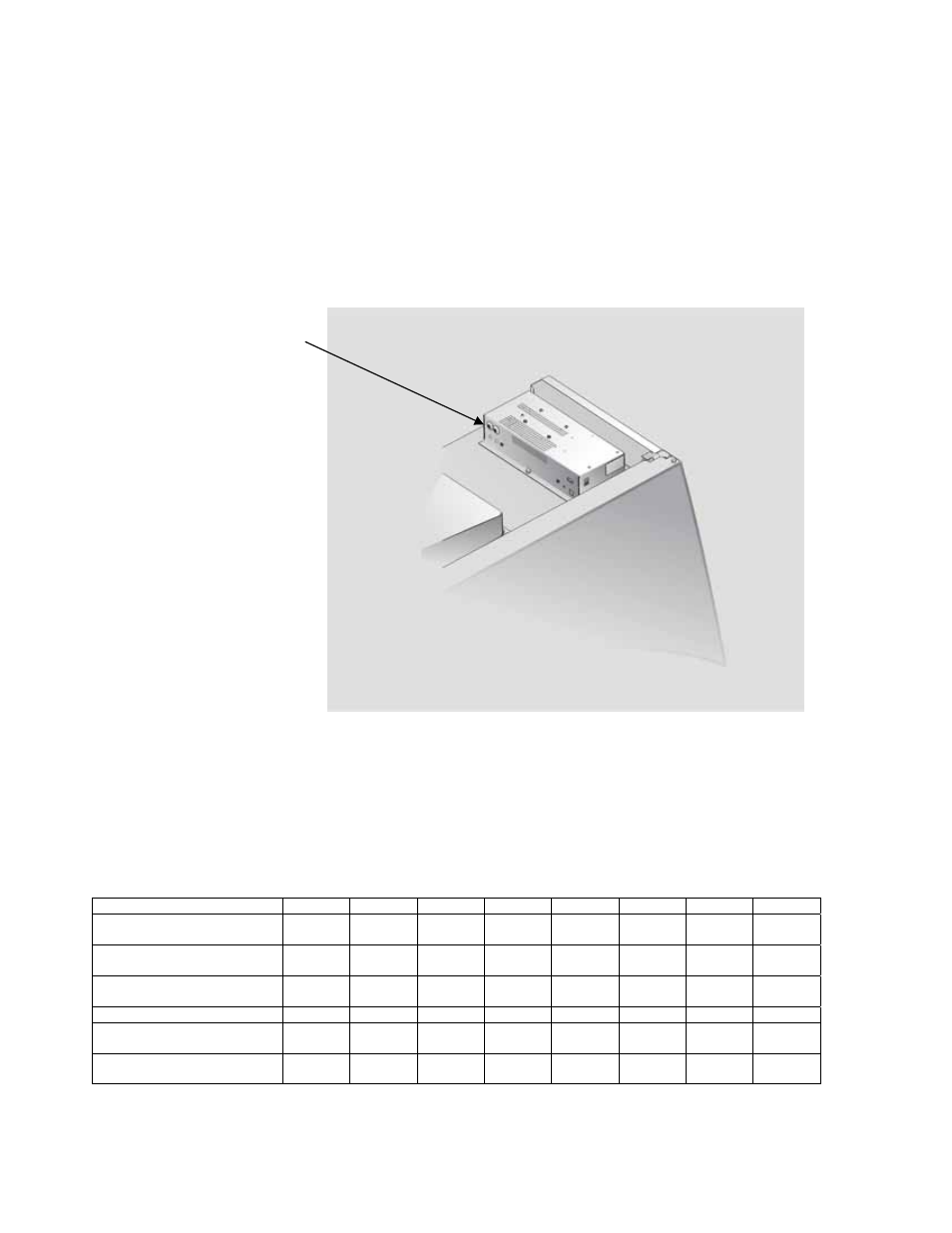

Figure 9-4

Circuit Breakers- The
front breaker protects
the electrical outlets,
the rear breaker
protects the motor
and lights.

Circuit Breaker Specifications

Circuit breaker specifications are shown in Table 9-2, below.

Table 9-2

Circuit Breaker Specifications, 100/115 VAC

Model

34308 34300 34408 34400 34508 34500 34608 34600

Motor/Light Breaker Rating,

Amps

8 8 8 8 10 10 10 10

Motor/Light Breaker, Labconco

Part #

1327208 1327208

1327208

1327201 1327201

1327201

Motor/Light Breaker,

Mechanical Products Part #

1600-062-

080-007

1600-062-

080-007

1600-062-

080-007

1600-062-

080-007

1600-062-

100-007

1600-062-

100-007

1600-062-

100-007

1600-062-

100-007

Outlet

Breaker

Rating,

Amps

5 5 5 5 5 5 5 5

Outlet Breaker, Labconco

Part #

1327204 1327204

1327204

Outlet Breaker, Mechanical

Products Part #

1600-062-

050-007

1600-062-

050-007

1600-062-

050-007

1600-062-

050-007

1600-062-

050-007

1600-062-

050-007

1600-062-

050-007

1600-062-

050-007
