5. Remove the two Phillips screws on the front edge of the right side corner post,
and allow the front of the side panel to swing out and lift off.

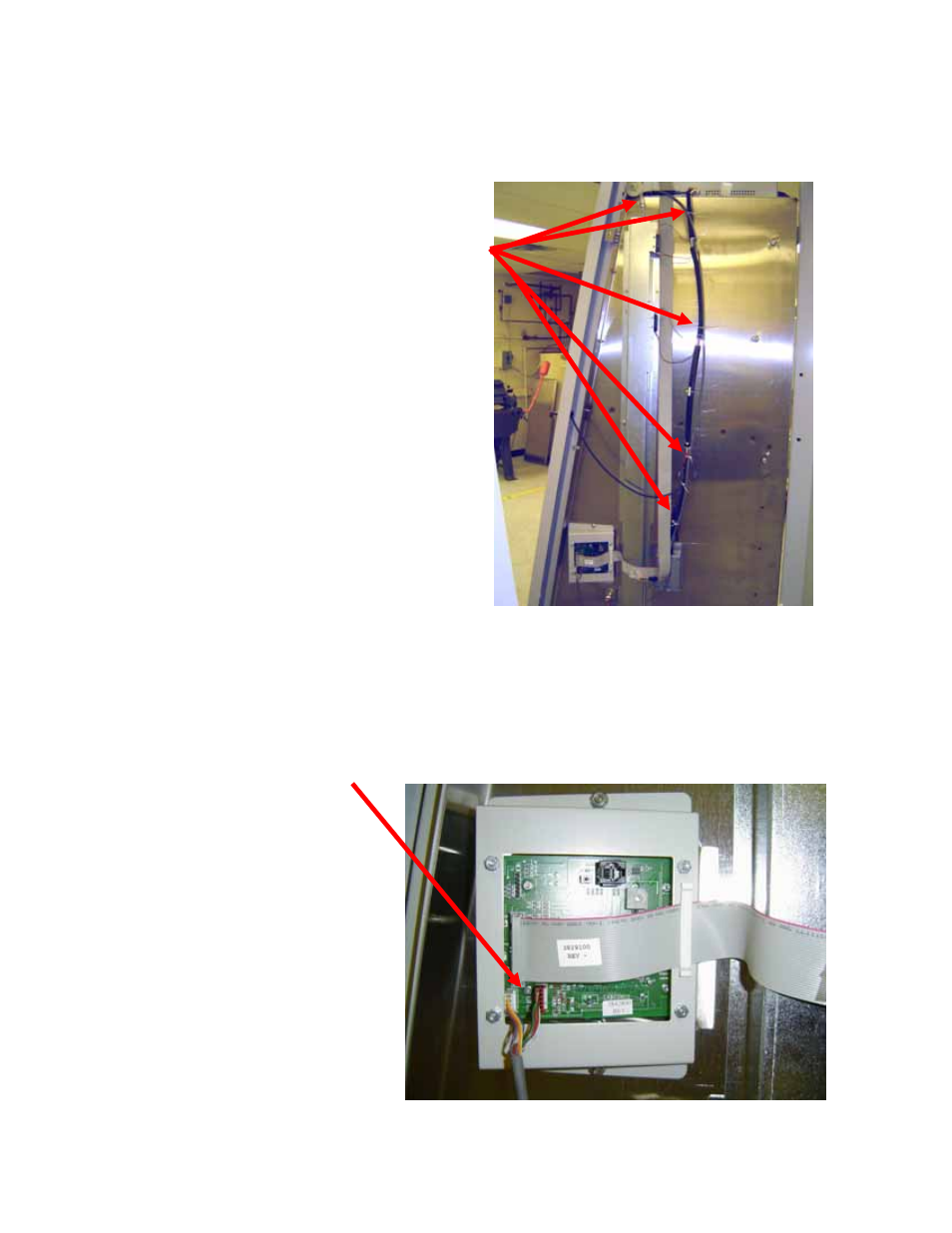

6. Continue routing the sensor cable
along the main harness on the right
side of the cabinet. Secure the
sensor harness with the remaining
ties as shown.
7. Route the cable to avoid pinch hazards, and to bring the two airflow sensor
connectors to the control board. Insert the two connectors into the control
board. One harness connector has 5 pins, and the other has 6. Connect each to
the corresponding pin connectors on the board as shown in the following photo.
Airflow Sensor connectors
