On Models Manufactured After April 2009 –
5. Remove the exhaust HEPA filter cover by loosening the four Phillips Screws on
the sides of the cover, then pivot the front of the cover up, and then pull it
forward as shown in Figure 5-2a.

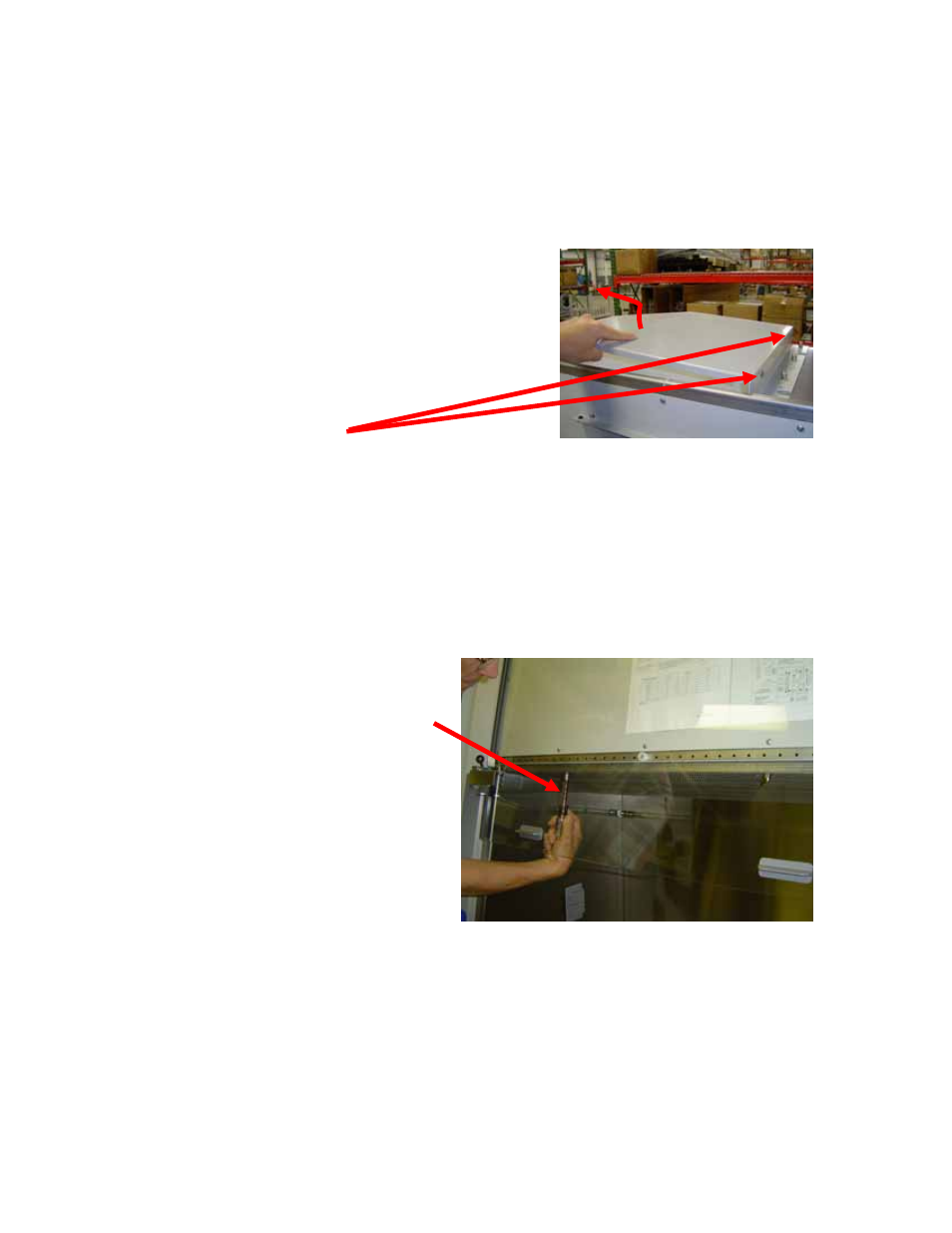

Figure 5-2a
Pivot the front of the cover up and then pull it
forward (dress panel removed for clarity only).
Loosen these screws only
Note: exercise caution when removing or installing the exhaust filter cover, to prevent
damaging the Exhaust HEPA filter.
Note: exercise caution when removing or installing the exhaust filter cover, to prevent
damaging the Exhaust HEPA filter.
6. Remove the diffuser by raising the sash as high as it will go, and then removing
the two acorn nuts with a 7/16” wrench or socket, as shown in Figure 5-3.
Figure 5-3
Removing the diffuser acorn nuts (Dress
panel and lamps removed for clarity
only).
Note: The diffuser acorn nuts are secured to the studs with a removable thread locking
compound to prevent them from vibrating loose during shipment of the Logic. There
may be some resistance the first time the nuts are removed; this is normal. No
additional thread locking compound need be applied to these acorn nuts unless the unit
is being prepared for shipment.
