Exhaust Damper Seal Installation
The exhaust damper seal is a silicone seal, permanently bolted to the plenum inside the
cabinet.
CAUTION: The damper seal is permanently attached to the plenum in the
cabinet. NEVER attempt to pull the seal out of the cabinet; the seal will be
damaged or destroyed.
CAUTION: The inside surface of the damper seal may be contaminated. DO
NOT disrupt the seal until the cabinet has been properly decontaminated.
Installing the seal

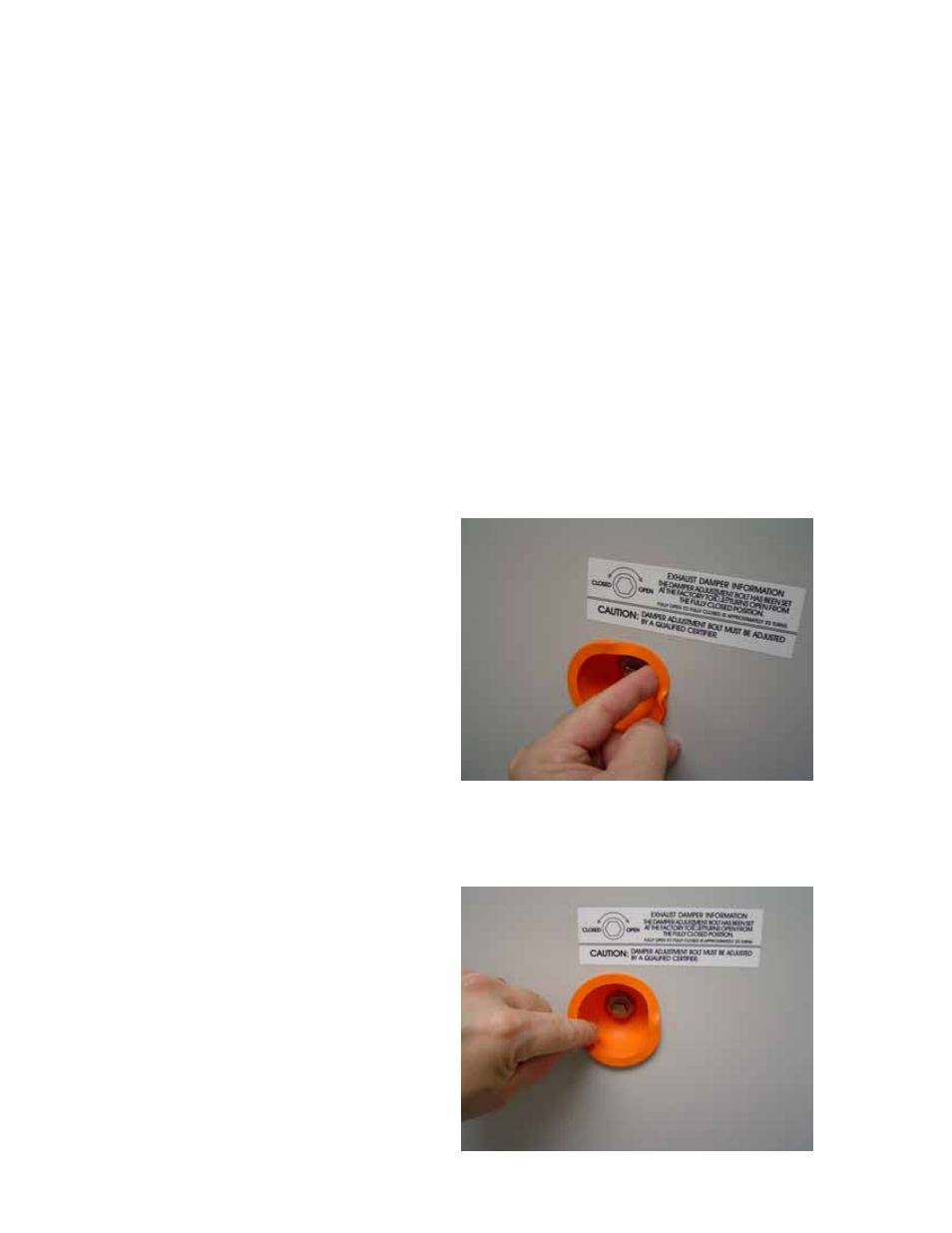

1. Properly orient the inner and outer sealing flange at one location on the
hole in the blower plenum cover, as shown in Figure 7-11.
Figure 7-11
5. Work the seal around the hole, ensuring the flanges are properly oriented, as
shown in Figure 7-12.
Figure 7-12
