Creating and Starting a Test Case
SONET/SDH Application 79
Typical Test Cases
Creating an OTN Overclocked
(OTU1e/OTU2e/OTU1f/OTU2f) Test Case (FTB-8130,
FTB-8130NG, and FTB-8130NGE)
To create an OTN overclocked test on an FTB-8130, FTB-8130NG, or
FTB-8130NGE module:

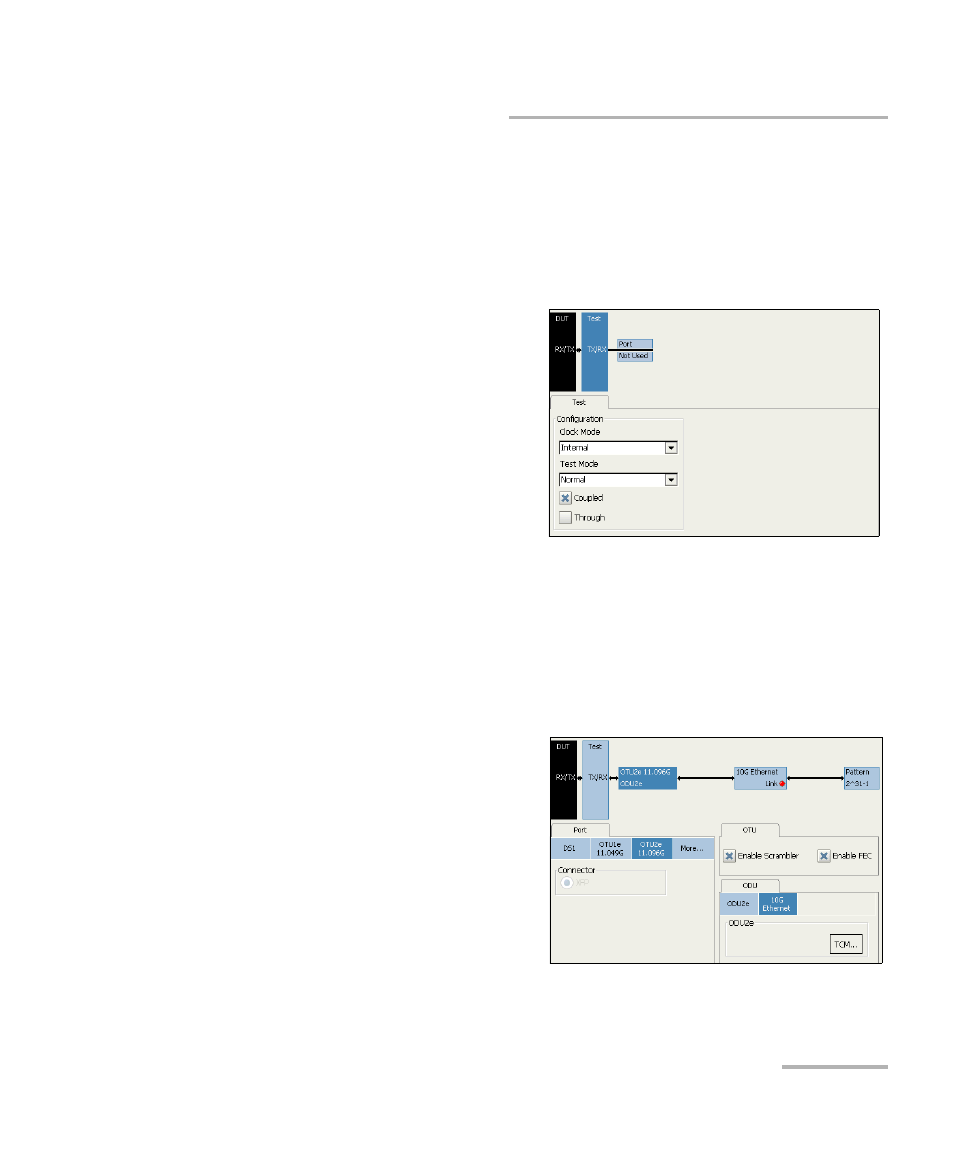

1. Test configuration:
1a. Select the source Clock
Mode that will be used
for the test. Refer to
Clock Configuration on
page 101 for more
information.
1b. Select Normal as the
Test Mode. Refer to Test
Configuration on
page 98 for more information.
1c. Make sure the Coupled check box is selected.
1d. Select the Through check box to loop the RX signal to the TX port.
The Clock Mode is automatically set to Recovered when the
Through check box is selected.
2. Press the Port node.
2a. Press More to see all
available interfaces and
press the desired
interface:
OTU1e (11.049G),
OTU2e (11.096G),
OTU1f (11.270G) or
OTU2f (11.317G).
