SDH Tabs
SONET/SDH Application 257
Regenerator Section OH TX/RX (SDH)
Regenerator Section OH TX/RX (SDH)
The Regenerator Section OH TX allows changing the regenerator
transport overhead information to be transmitted while the Regenerator
Section OH RX allows verification of the information received. Refer to
Glossary on page 413 for detailed overhead information.

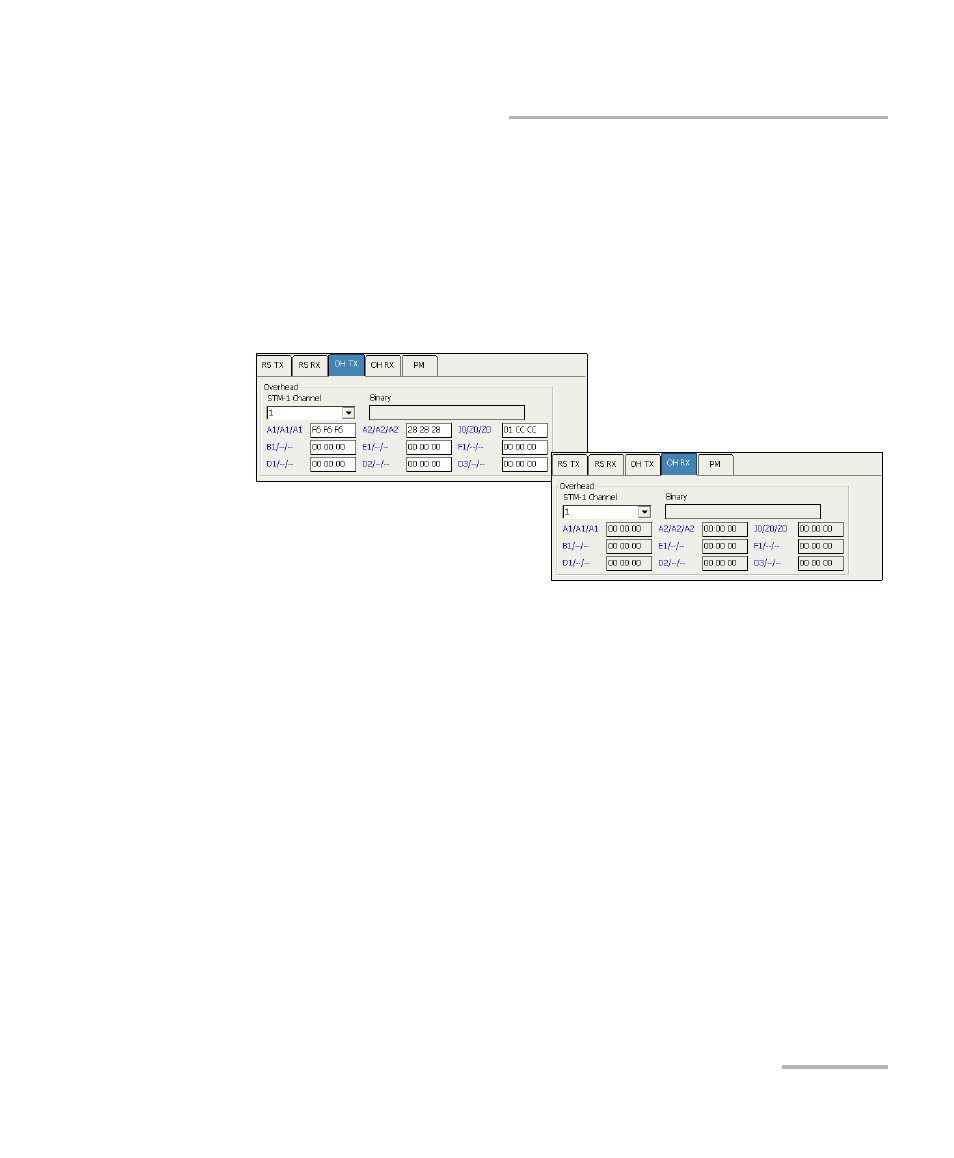

Press Main, Test, SDH, RS, and OH TX/RX.
Regenerator Section Overhead
³
STM-1 Channel: Select the channel number that will be used for
verification. Choices are 1 for STM-1, 1 to 4 for STM-4, 1 to 16 for
STM-16, and 1 to 64 for STM-64.
³
Binary: Allows either displaying all overhead values in binary (when
the Binary check box is selected) or hexadecimal (when the Binary
check box is cleared). This Binary check box is cleared by default.
³
A1 and A2: Framing. The value should be hexadecimal F6 for A1 and
28 for A2.
³
J0/Z0
J0: Trace: STM-1 of a STM-N signal. J0 is only available when Enable
Trace from the Regenerator Section TX (SDH) on page 251 is disabled.
Z0: Growth
