EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 72
Creating and Starting a Test Case
60
FTB-8100 Series Transport Blazer
Typical Test Cases

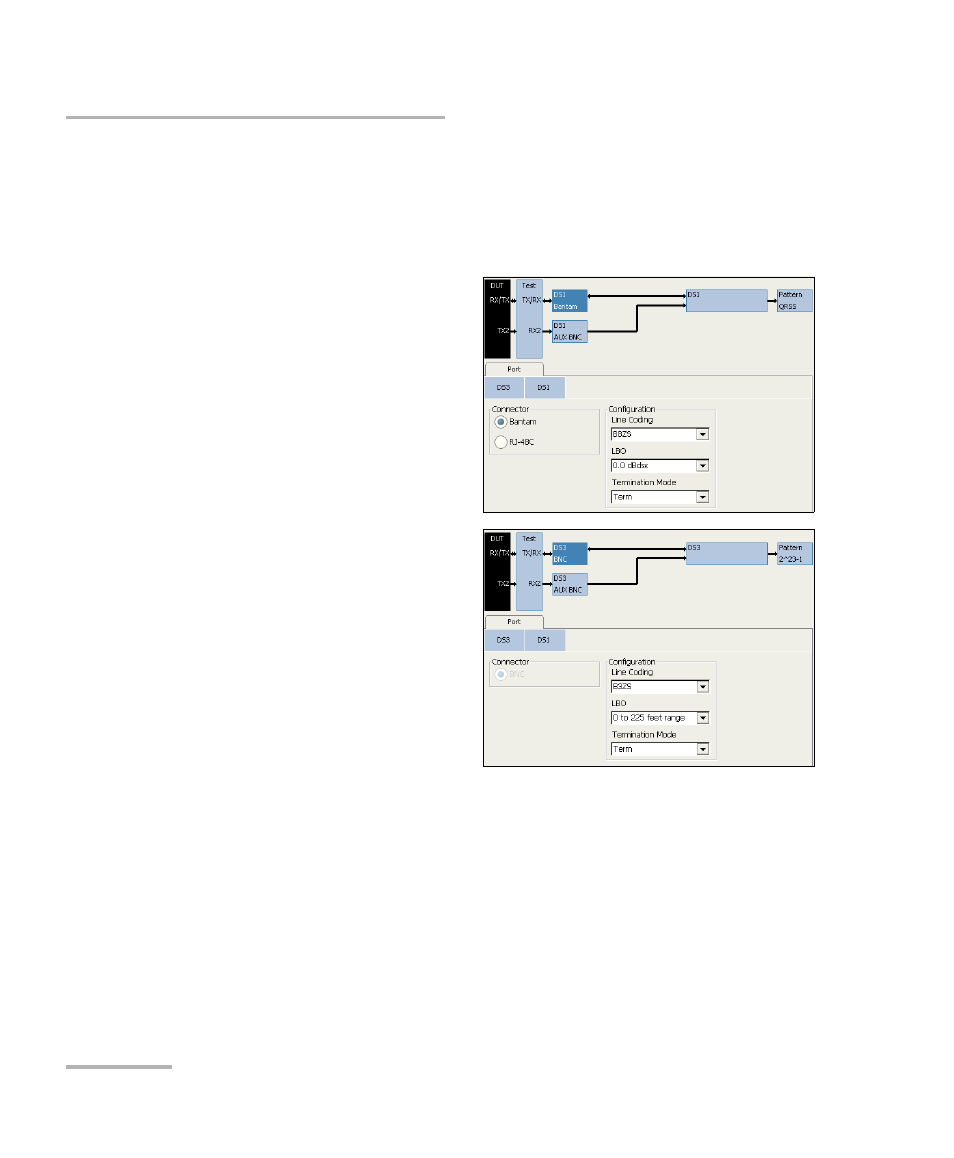

2. Press the TX/RX or RX2 Port node.
2a. Press the desired interface: DS3, or DS1.
2b. Select the connector type:
2c. For DS1: Bantam, or
RJ-48C.
For DS3: The TX/RX
connector is BNC while
the RX2 connector is
the BNC AUX port.
2d. Select the Line Coding,
LBO, and Termination
Mode. Term, Mon, and
Bridge (DS1 only)
termination modes are
available. For more
information, refer Port
TX (Electrical Interfaces) on page 114 for Line Coding and LBO, or
RX DSn Tabs on page 213.
