Software options, Configuration – EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 403
System Tab
SONET/SDH Application
391
Software Options
Software Options
Allows the installation of software options. A software option key will be
generated by EXFO for each option bought.

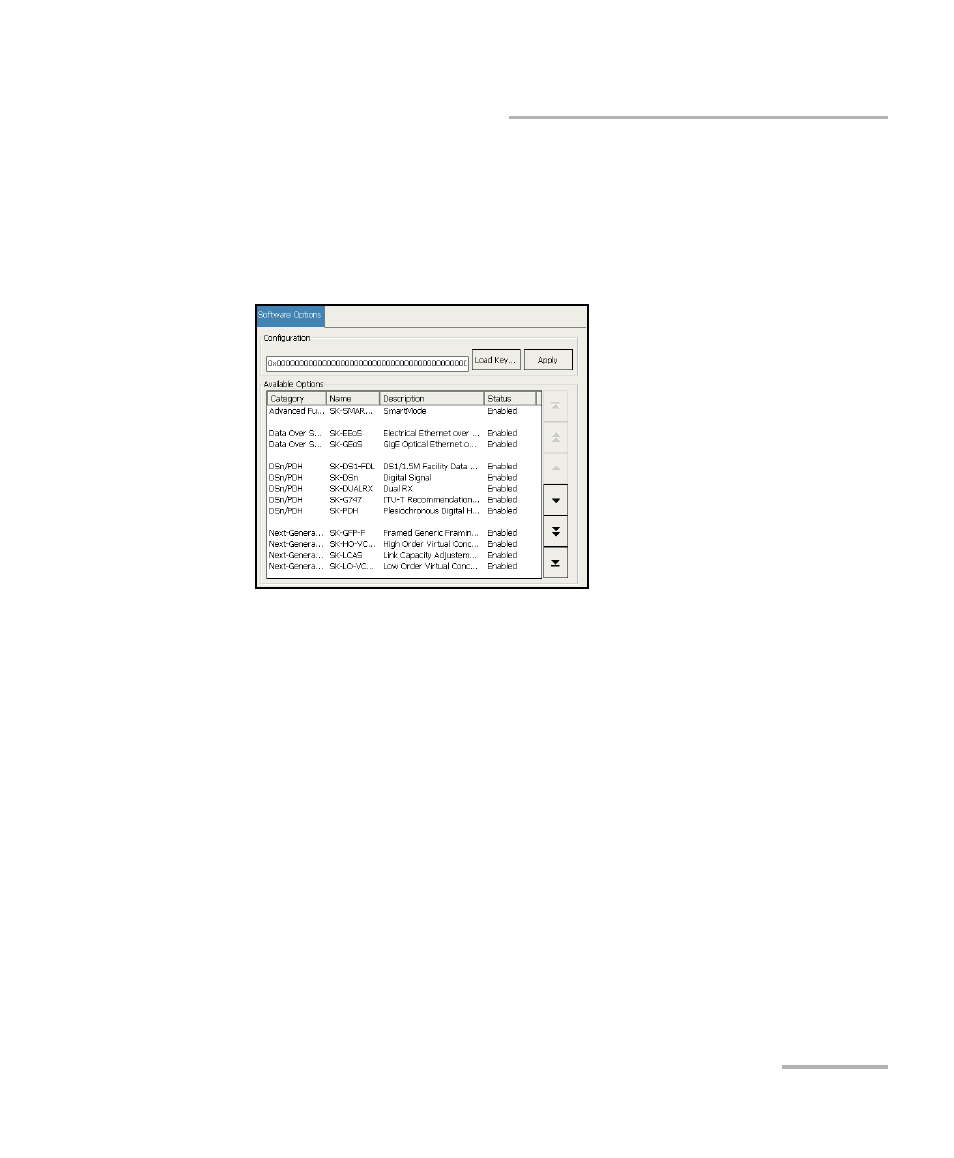

Press Main, System, Software Options, and Software Options.
Note: Software option installation is only possible when no test case is created.
Configuration
The software license key can be either entered (typed) or loaded (using
the Load Key button).
³
Software Option key allows typing the software option key.
³
Load Key button allows selecting a file containing the option key.
The default directory is \Data\My Documents\SonetSdhAnalyzerG2\Key.
³
Apply button sends the option key to the FTB-8100 Series. A
confirmation message will be displayed. The application is
automatically closed. The application must be restarted manually.
