EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 52
Introducing and Using the Graphical User Interface
40
FTB-8100 Series Transport Blazer

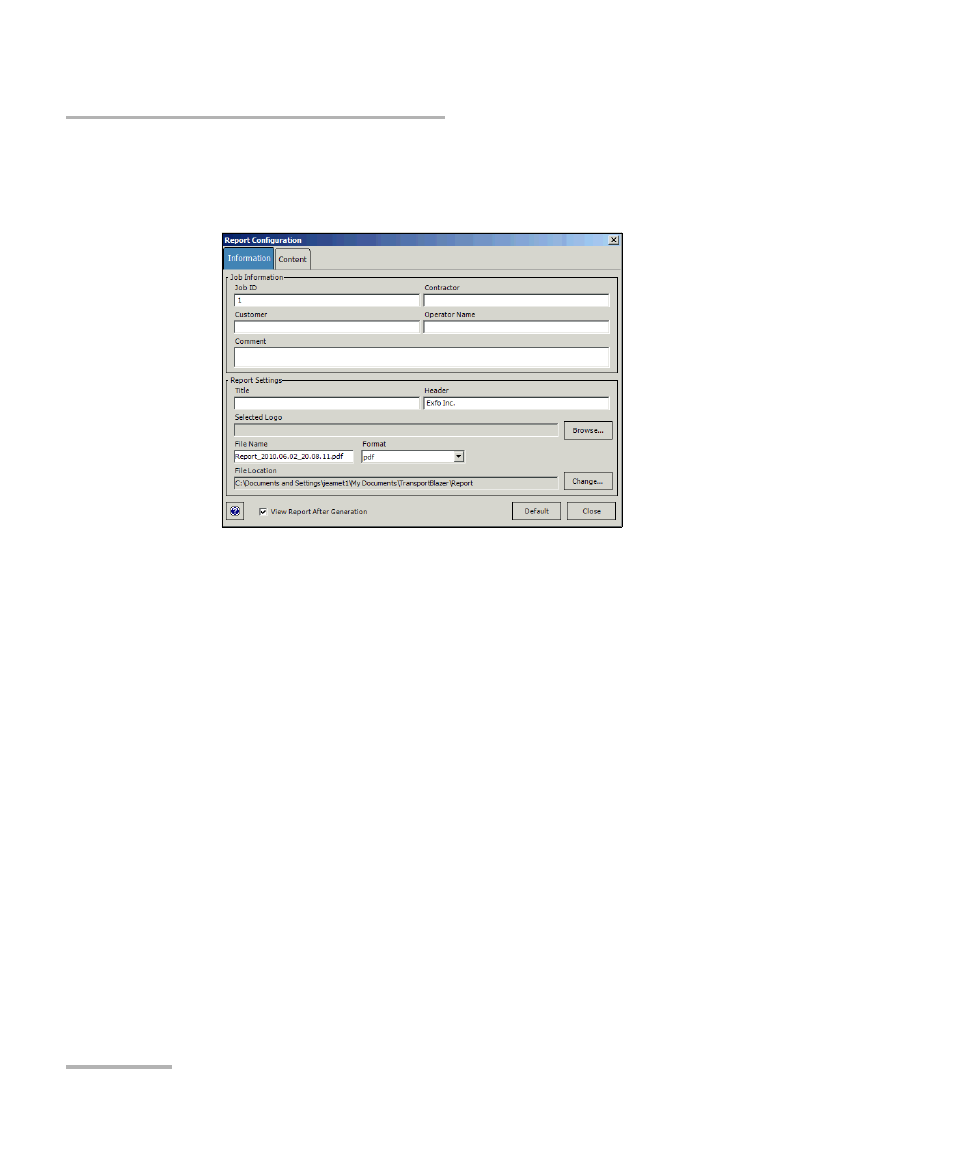

Test Report Generation
³
Configuration
Information tab
³
Job Information: These parameters are used to identify the
source of the report and are not mandatory. Enter the following job
information if required: Job ID, Contractor, Customer, Operator
Name, and Comment. Up to 256 characters are allowed for each
parameter.
³
Report Settings: These parameters are used to identify the report
and are not mandatory. Enter the following report information if
needed: Title, Header, Selected Logo, File Name, and Format.
Press Browse to select a different logo, then press Open.
Type a new name in the File Name field if required.
Format: Select the report file format. Choices are html, csv, pdf,
and txt. The CSV format (comma separated file format) generates
a report with comma delimiter for English OS and semicolon for
other OS languages. The default setting is html. Html and csv are
only available with Full Report type.
