EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 85
Creating and Starting a Test Case
SONET/SDH Application
73
Typical Test Cases

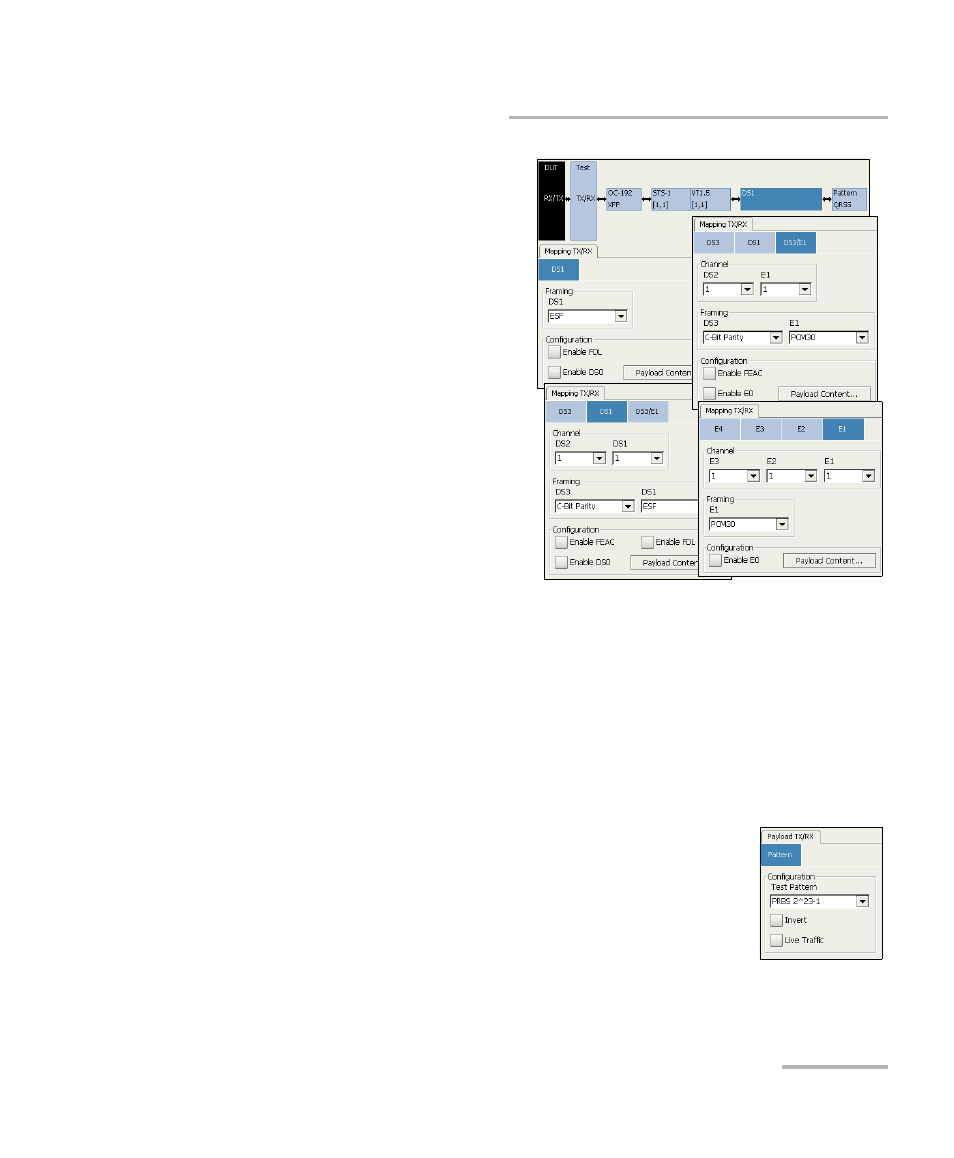

4. Press the Mapping node.
4a. Press the desired path/
mapping. Choices
depend on the
selected interface. See
Supported
Paths/Mappings on
page 51 for more
information.
4b. For DSn/PDH mapping
level, select the
Framing. For more
information, refer to
DSn Tabs or PDH Tabs.
For DS3, select the
Enable FEAC check
box to allow far end
alarm and control testing.
Select the Channel number(s) of the selected mapping.
For DS1, select the Enable FDL check box to allow facility data
link testing.
For DS1/E1, select the Enable DS0/E0 check box to allow DS0 or
E0 testing and select the Paylaod Content. Refer to Payload
Content on page 216 for DSn and page 304 for PDH.
5. Press the Pattern node.
5a. Set the pattern parameters. Refer to Pattern TX
on page 335 and Pattern RX on page 338 for
more information.
6. The test setup has been successfully created.
