Opu rx, Alarm analysis – EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 176
OTN Tabs
164
FTB-8100 Series Transport Blazer
OPU RX
OPU RX

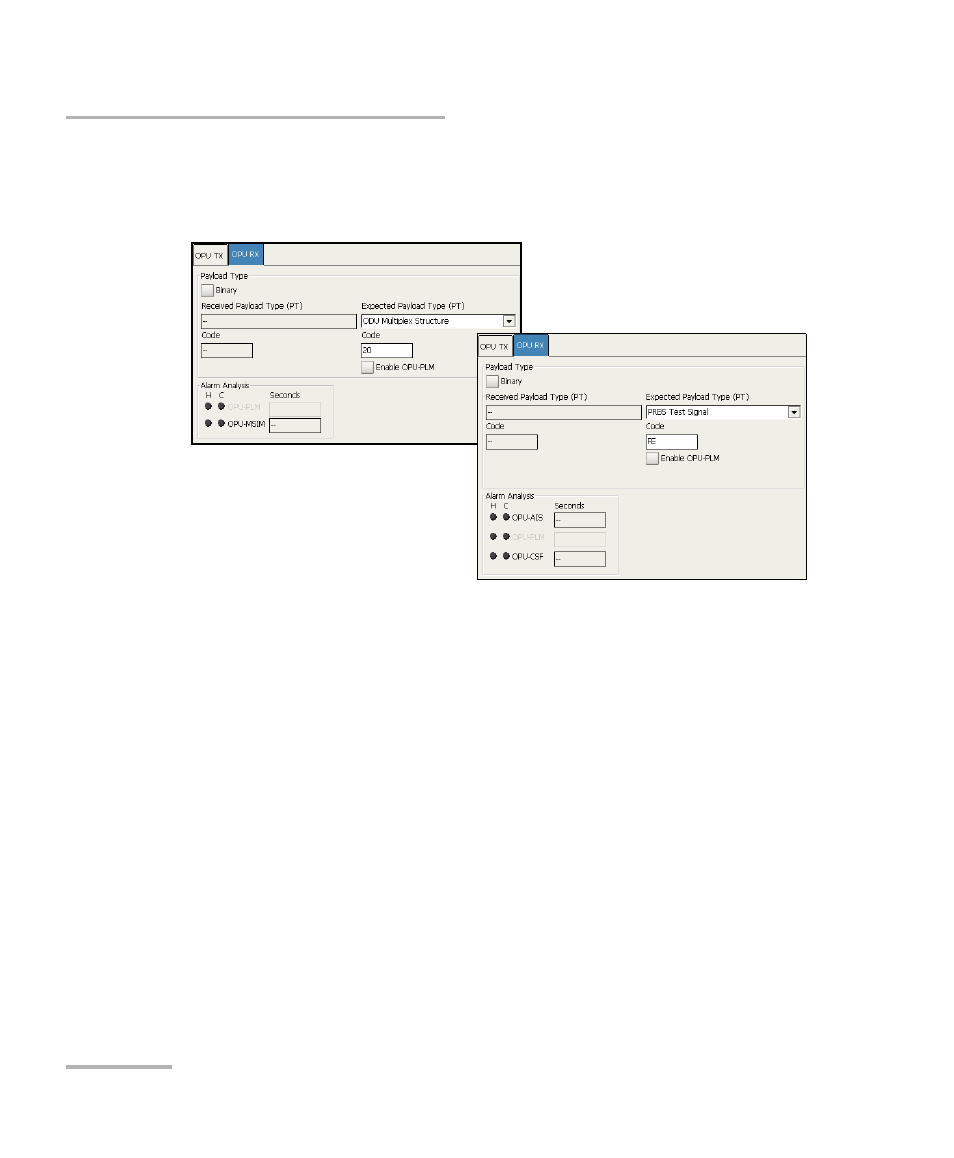

Press Main, Test, OTN, OPU, and OPU RX.
Alarm Analysis
³
OPU-PLM (Payload Mismatch): OPU-PLM is declared when the
Payload Structure Identifier (PSI) field do not match the expected PT
for at least 3 consecutive frames. See Enable OPU-PLM on page 165.
³
OPU-MSIM (Multiplex Structure Identifier Mismatch): OPU-MSIM is an
HO alarm that is available for multiplexed test case only. OPU-MSIM is
declared when the RX Payload Structure Identifier (PSI) information do
not match the expected HO Multiplex Structure Identifier configuration
defined from the test case setup.
