EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 73
Creating and Starting a Test Case
SONET/SDH Application
61
Typical Test Cases

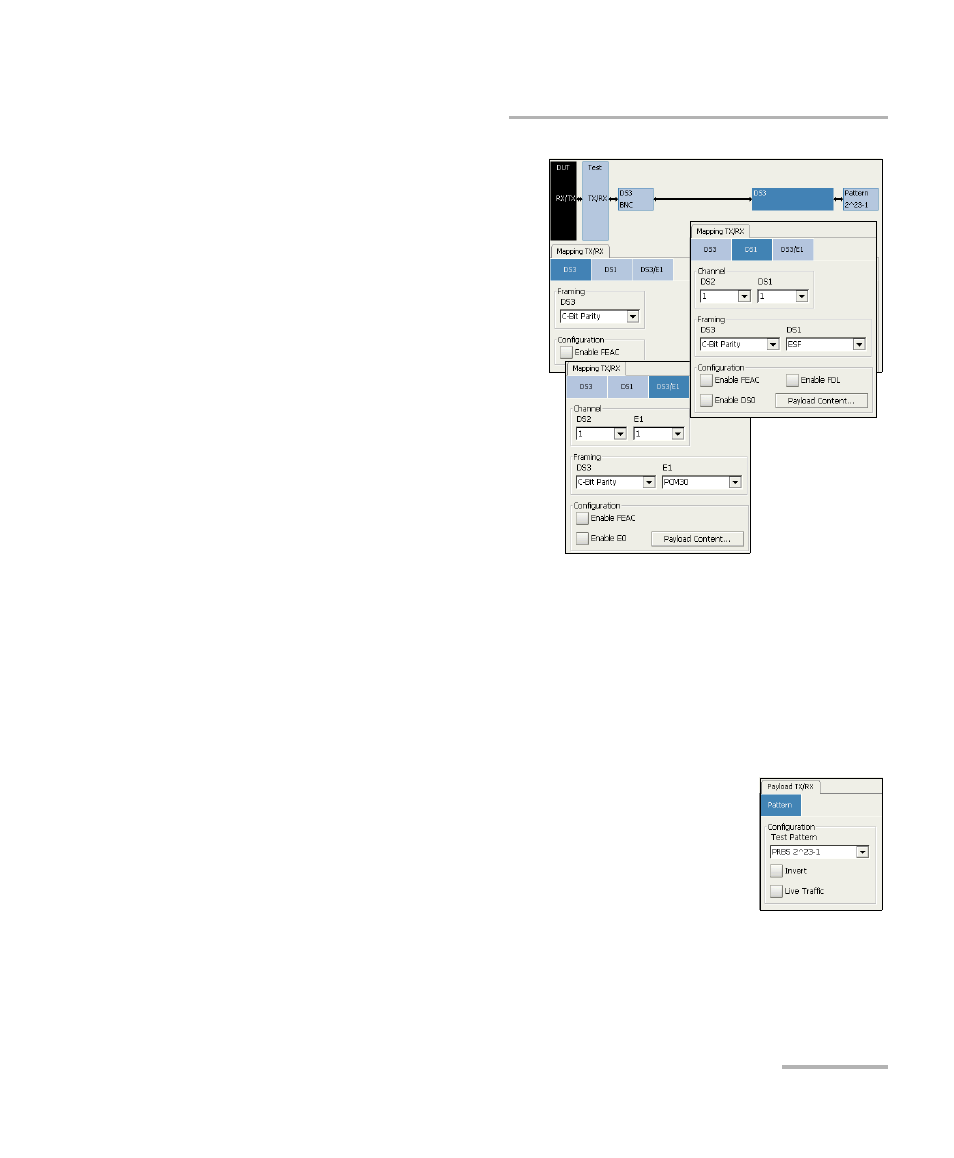

3. Press the Mapping node.
3a. Select the mapping.
Choices depend on the
selected interface. See
Supported
Paths/Mappings on
page 51 for more
information.
3b. Select the Framing. For
more information, refer
to DSn Tabs on
page 213.
3c. For DS3, select the
Enable FEAC check box
to allow far end alarm
and control testing.
3d. Select the Channel number(s) of the selected mapping.
3e. For DS1, select the Enable FDL check box to allow facility data
link testing. FDL is only available for the main DS1 TX/RX port.
3f. For DS1, select the Enable DS0/E0 check box to allow DS0 or E0
testing and select the Paylaod Content. Refer to Payload Content
on page 216.
4. Press the Pattern node.
4a. Set the pattern parameters. Refer to Pattern TX
on page 335 and Pattern RX on page 338 for
more information.
