EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 111
Summary Tabs
SONET/SDH Application
99
Test Summary
³

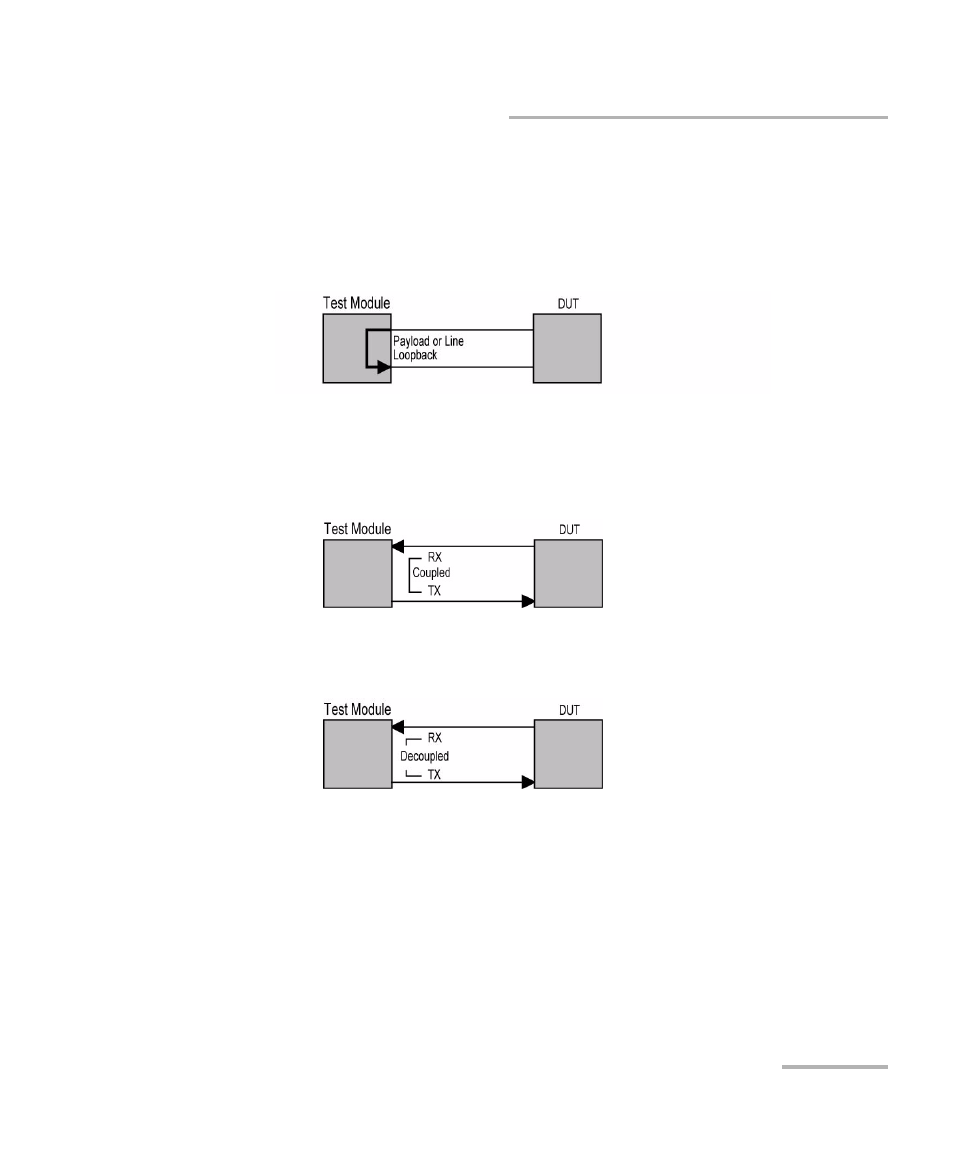

NI/CSU Emulation: Indicates that the FTB-8105/15/20/30 unit is
emulating the loopback capabilities of a network device in order to
respond to an incoming loopback code of a DS1 signal. It can also
be used to manually configure a payload or DS1 loopback adapted
to the frame format.
³
Coupled:
³
Indicates that both TX and RX parameters are coupled when the
Coupled check box is selected.
³
Indicates that TX and RX parameters are independent (decoupled)
when the Coupled check box is cleared.
