Page 345
10G Ethernet Tabs
SONET/SDH Application
333
Statistics
Statistics
Frame statistics are gathered for all Ethernet frames transmitted/received
with a valid FCS.

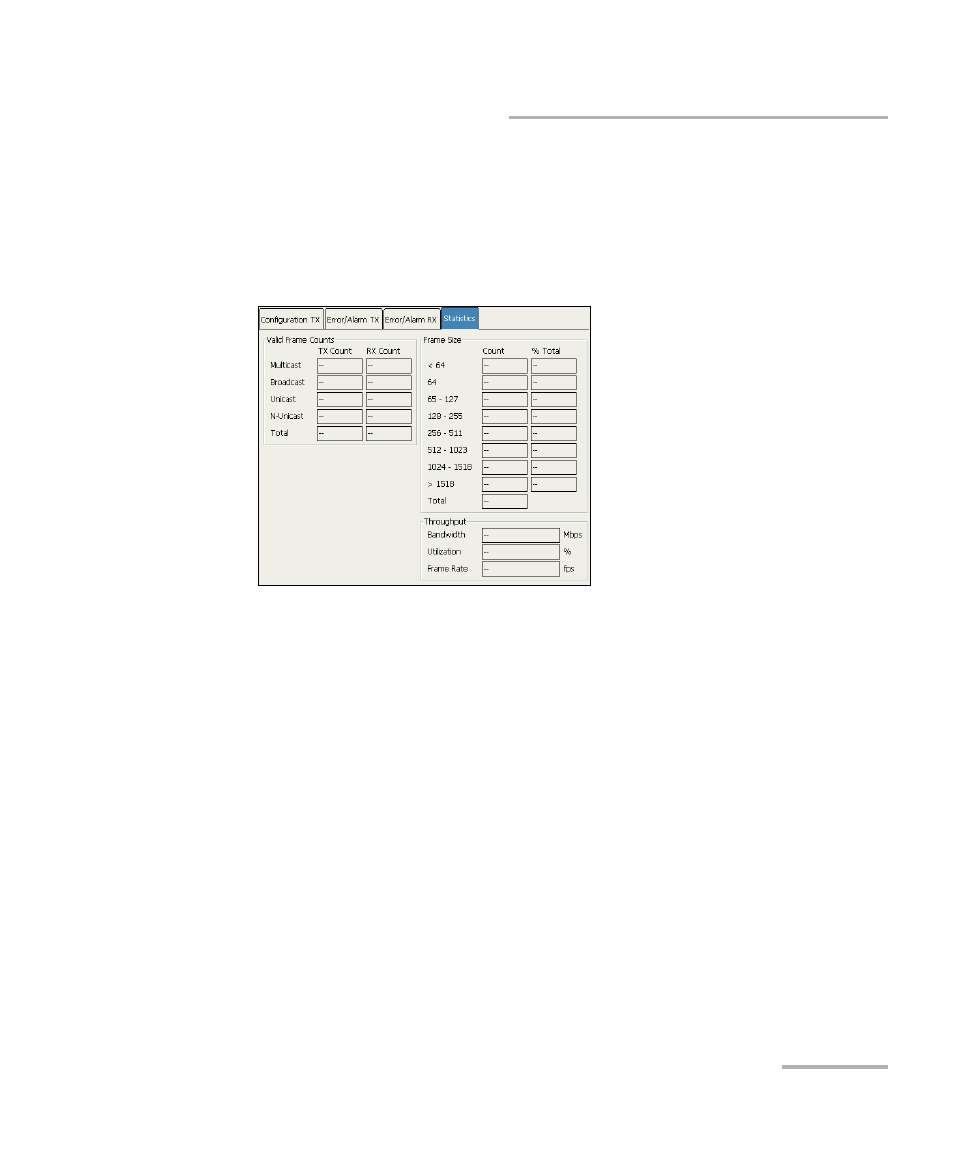

Press Main Menu, Test, 10G Ethernet, and Statistics.
TX/RX Count
³
Multicast: The number of Multicast frames transmitted/received
without any FCS errors. Broadcast frames are not counted as multicast
frames.
³
Broadcast: The number of Broadcast frames transmitted/received
without any FCS errors. Broadcast frames have a MAC address equal to
FF-FF-FF-FF-FF-FF.
³
Unicast: The number of Unicast frames transmitted/received without
any FCS errors.
³
N-Unicast (Non-Unicast): The sum of Multicast and Broadcast frames
transmitted/received without any FCS errors.
³
Total: The number of frames transmitted/received without any FCS
error.
