Port rx (optical interfaces), Signal analysis – EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 138
Port Tabs
126
FTB-8100 Series Transport Blazer

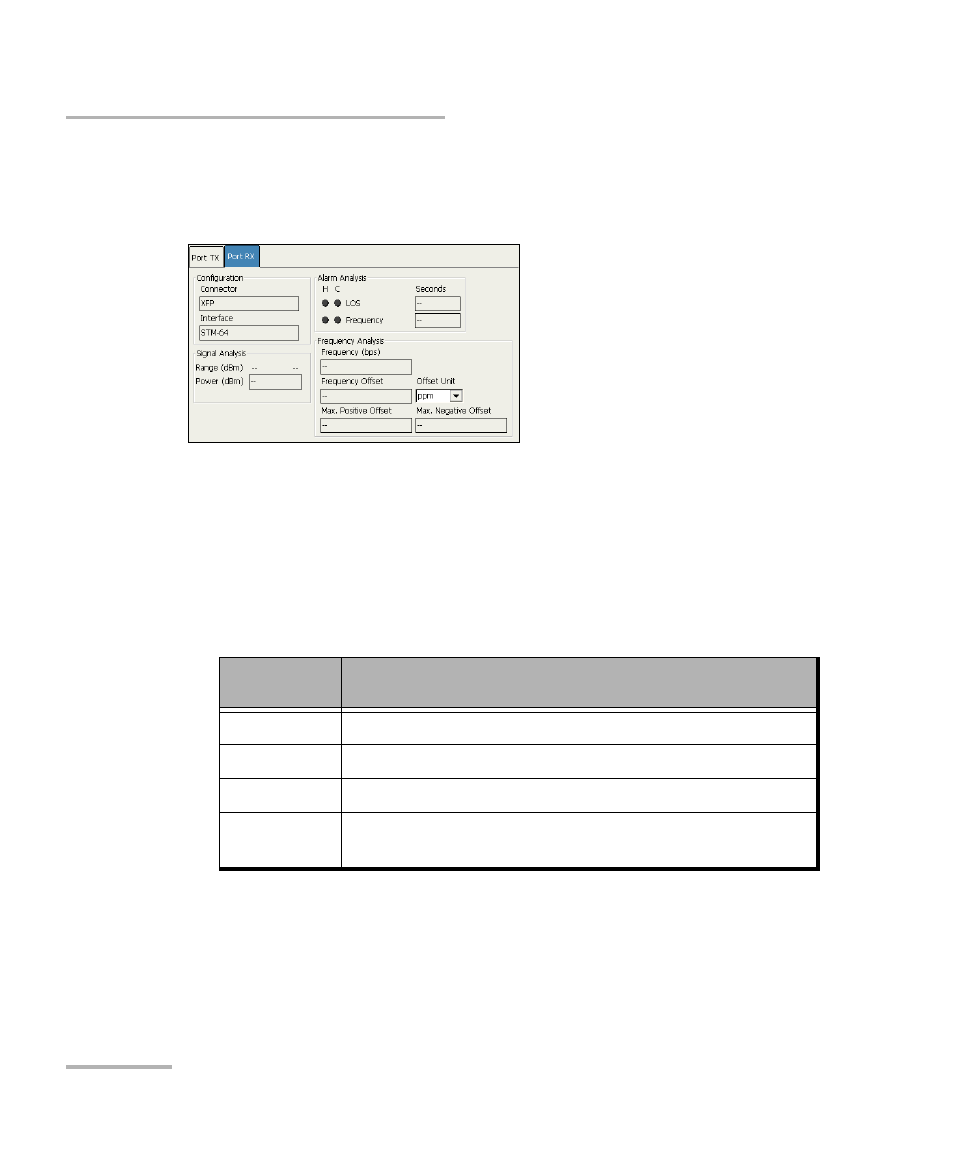

Port RX (Optical Interfaces)
Port RX (Optical Interfaces)
Press Main Menu, Test, Port, and Optical RX.
Signal Analysis
³
Range indicates the minimum and maximum optical power values
necessary to meet the standard BER for the test interface.
³
Power (dBm) indicates the power level of the input signal in dBm. The
background color of the Power Level field indicates the input presence
as follow:
Background
color
Description
Green
Power level in-range.
Yellow
Power level out of operational range.
Red
Power level crosses the “Close-to-damage” threshold.
Grey
LOS or invalid operational range value reported by the
optical device (SFP/XFP).
