SONET Tabs
200 FTB-8100 Series Transport Blazer

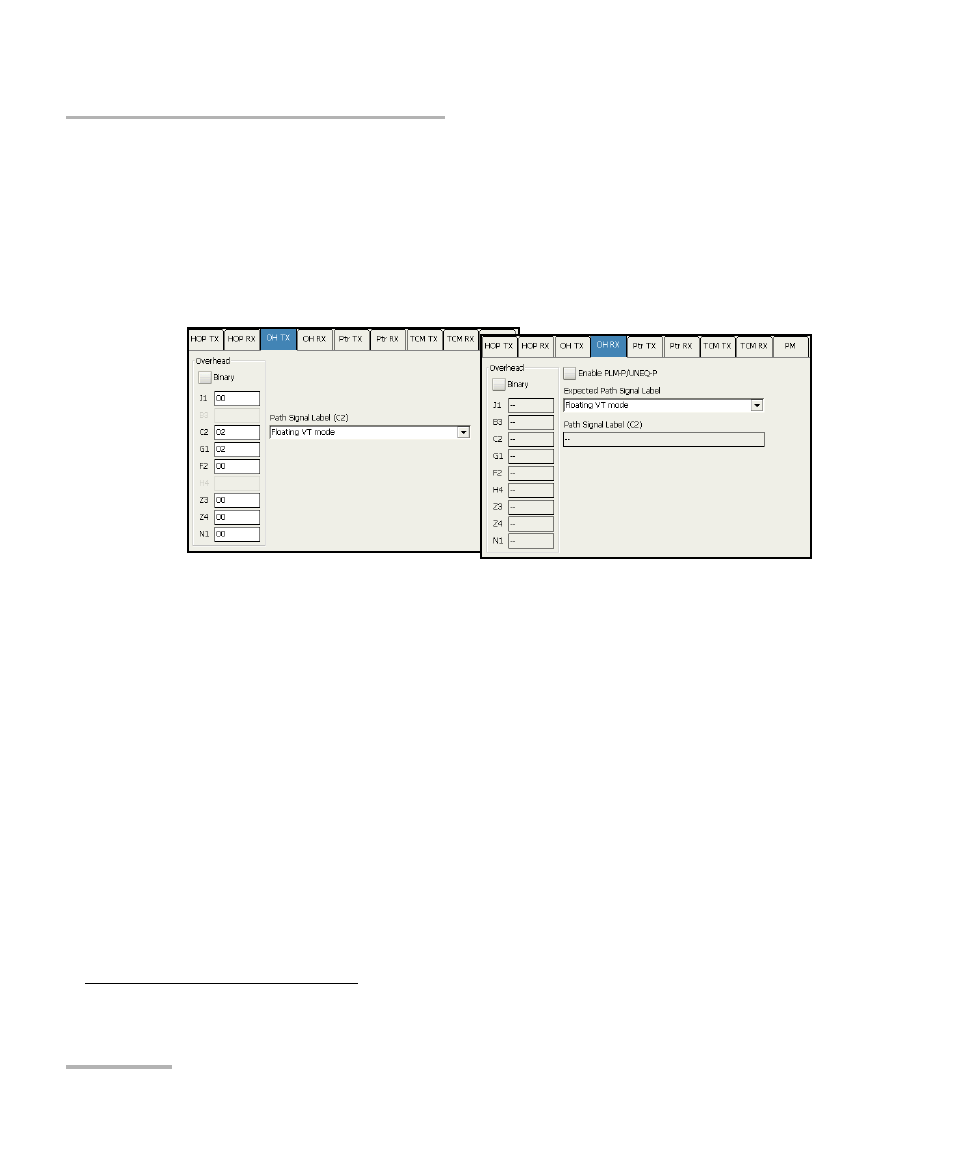

HOP OH TX/RX (SONET)
HOP OH TX/RX (SONET)
The HOP OH TX allows changing the high order path overhead information
to be transmitted while the HOP OH RX allows verification of the high order
path overhead information received.
Press Main, Test, SONET, HOP, and OH TX/RX.
Path Overhead
³
Binary: Allows either displaying all overhead values in binary (when
the Binary check box is selected) or hexadecimal (when the Binary
check box is cleared). This Binary check box is cleared by default.
³
J1
1
: Trace. J1 is only available when Enable Trace from the HOP TX
(SONET) on page 193 is disabled.
³
B3
1 : BIP-8
³
C2: Signal Label. Entering a C2 byte value will automatically update the
Path Signal Label (C2) selection and vice versa.
³
G1: Path Status
³
F2: User Channel
1. These bytes are not programmable from the HOP OH TX tab.
