EXFO FTB-8100 Series Transport Blazer for FTB-200 User Manual
Page 88
Creating and Starting a Test Case
76
FTB-8100 Series Transport Blazer
Typical Test Cases

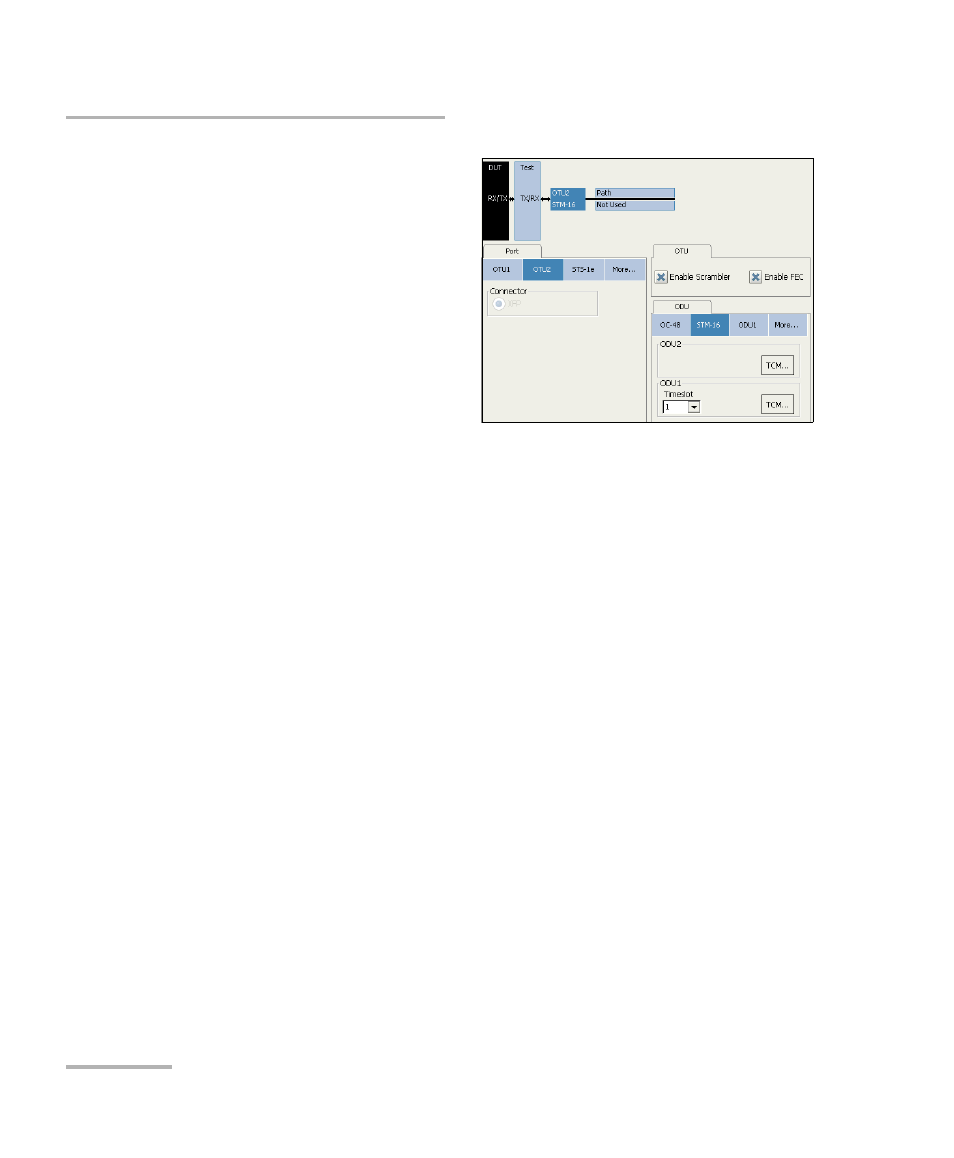

2. Press the Port node.
2a. Press More to see all
available interfaces and
press OTU1 or OTU2.
Choices depend on the
rates available on the
Transport Blazer
module.
2b. Under OTU tab, select
the Enable FEC and
Enable Scrambler
check boxes if needed. Refer to FEC TX on page 130 and OTU TX
on page 133 for more information.
2c. Under ODU tab, select the mapping and the tributary slot when
applicable.
2d. Press the TCM button and select ODU TCM (TCM1 to TCM6) layers
as required
